NH310 Colorimeter

ProductComparisonHigh-EndBrandofDomesticColorimeterNH310isamainstreambrandcolorimeterintroducedby3nhwhichhassynthesizedtheadvantagesoftenmoretradition.......

Colorimeters

Brands:

Type:

Description Additional information

Description

Product Comparison

High-End Brand of Domestic Colorimeter

NH310 is a mainstream brand colorimeter introduced by 3nh which has synthesized the advantages of ten more traditional imported colorimetersand has experienced ten thousands tests and applied many innovative technologies. Accurate, Stable, Exquisite and Affordable!

The Preferred Solution for Color Quality Control Management

NH310 high-quality portable colorimeter has adopted multi-channel color sensors of international brands, more stable IC platform as well as efficient and accurate algorithms to provide users with accurate and fast color management and application. NH310 is also designed with ergonomics and humanized operation and it has applied for a number of patents. NH310 is a multifunctional colorimeter with high quality and competitive price. 3nh insists on independent research whose technology innovation is unique in color management field. NH310 is the most convenient colorimeter for users.

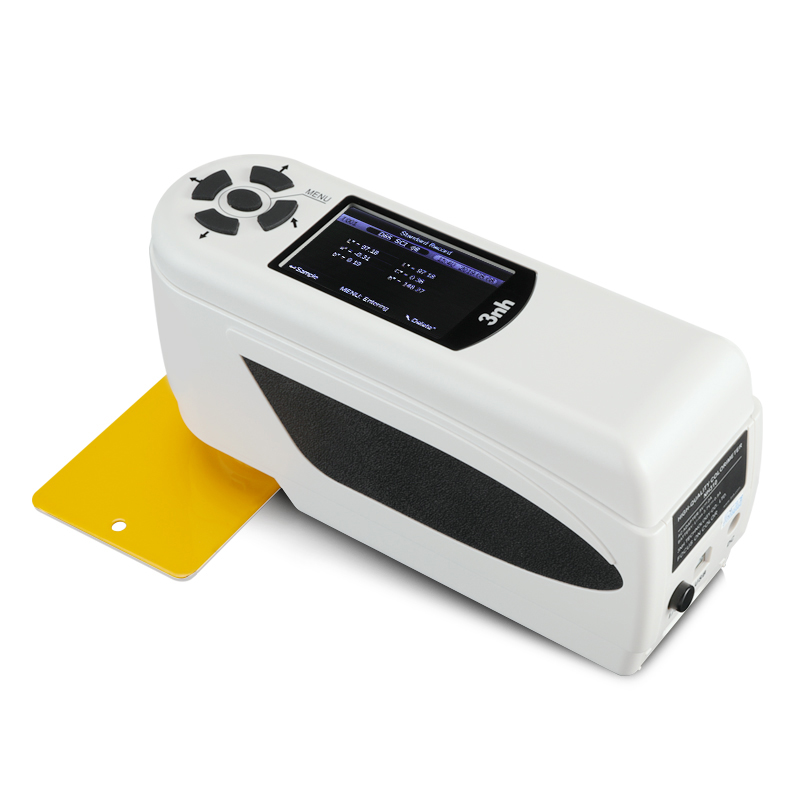

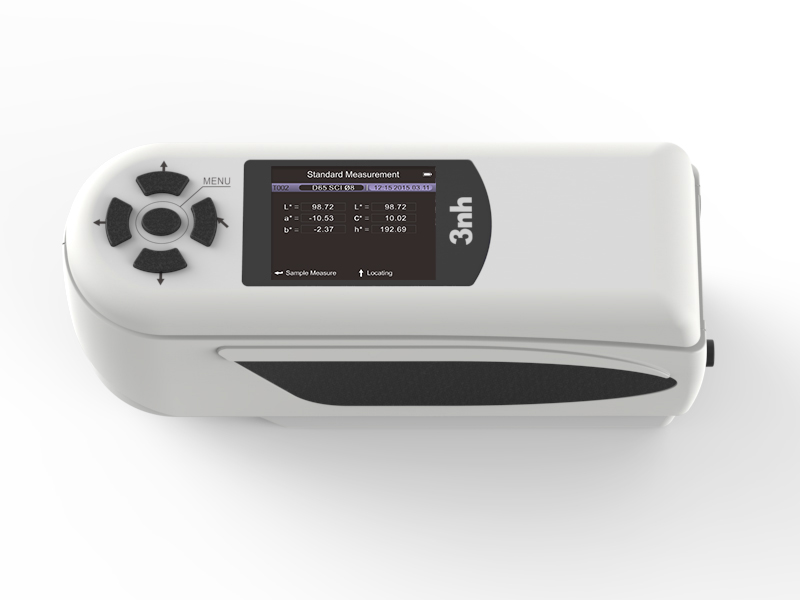

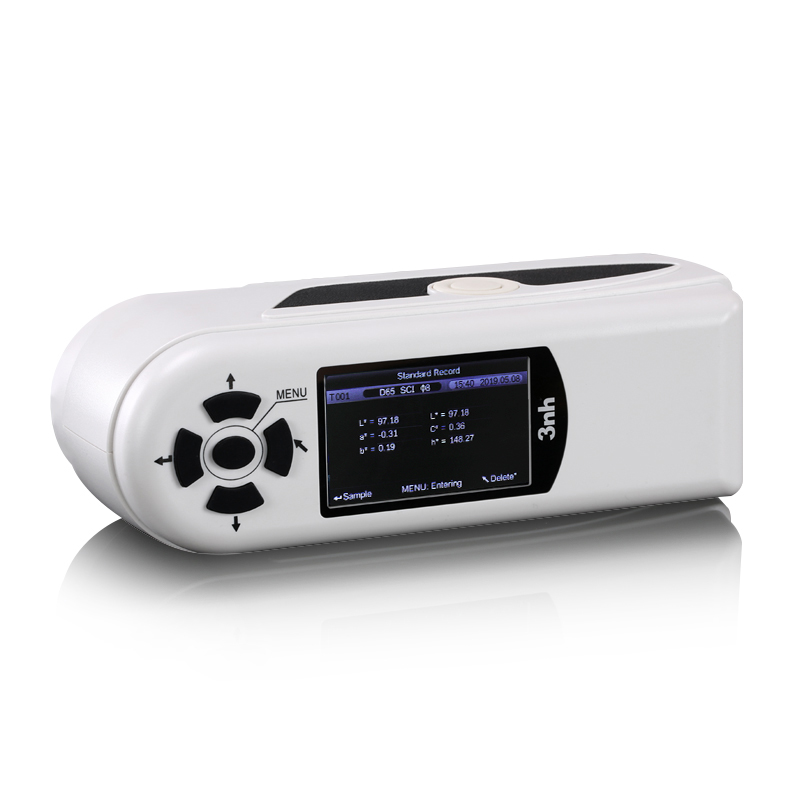

NH310 High-Quality Portable Colorimeter

1. Leading Humanity Design and Convenient Operation

Auto White and Black Calibration at Startup

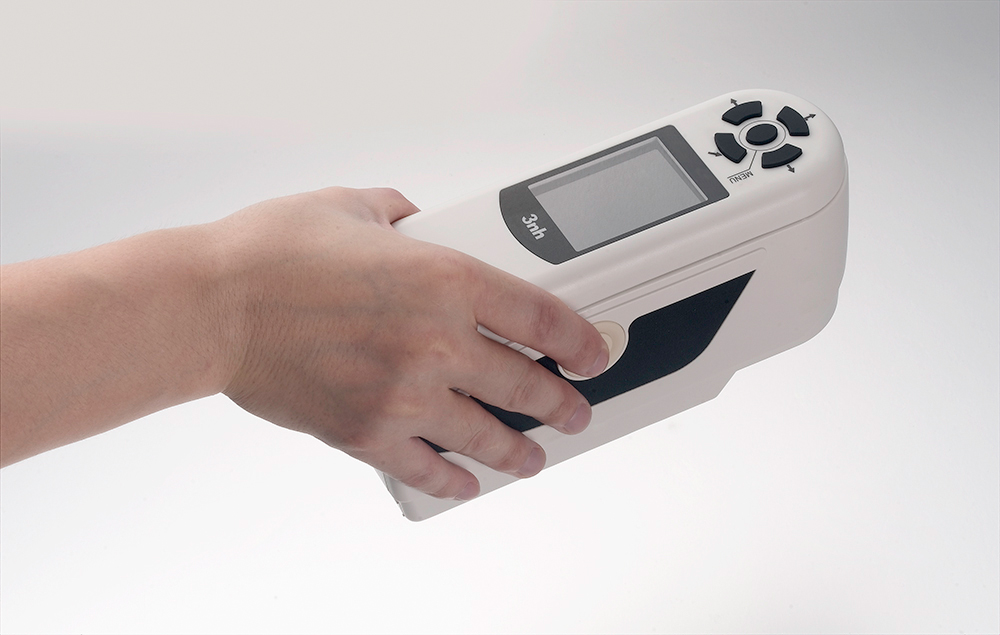

Structure Design in line with Ergonomics

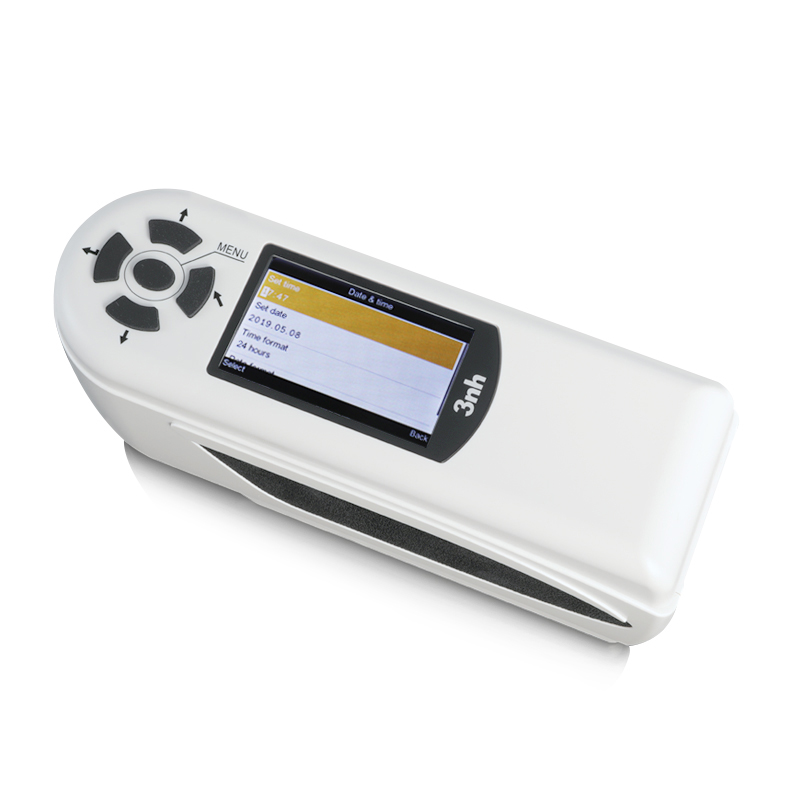

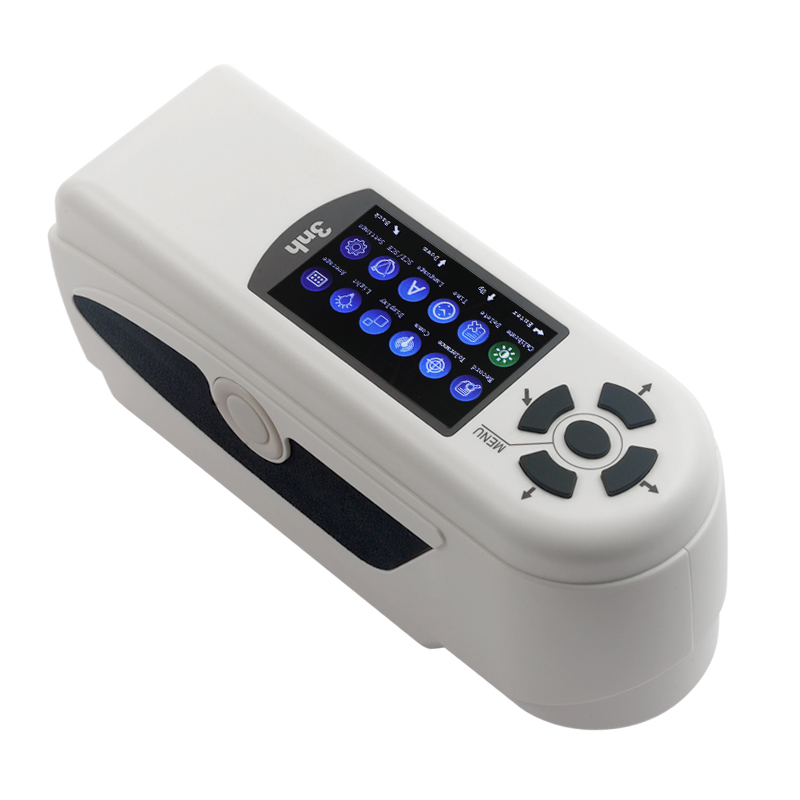

Easy-to-use Operation Interface

2. Stable Measurement Performance

The average fluctuation of △E is less than 0.06, actually more in 0.03~0.06.
Portable structure design which is more conductive to keeping the instrument stable when using.

3. Flexible and Accurate Locating

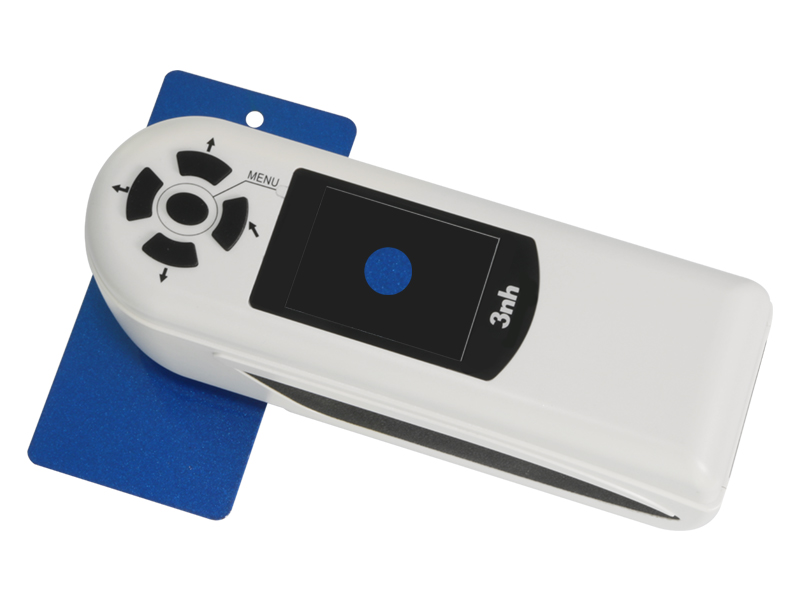

Camera locating can solve the problem of locating a small area. The minimum width of locating is 4mm.

Illumination locating is a fast, simple and convenient locating function which is the original function by 3nh.

4. More Measurement Modes

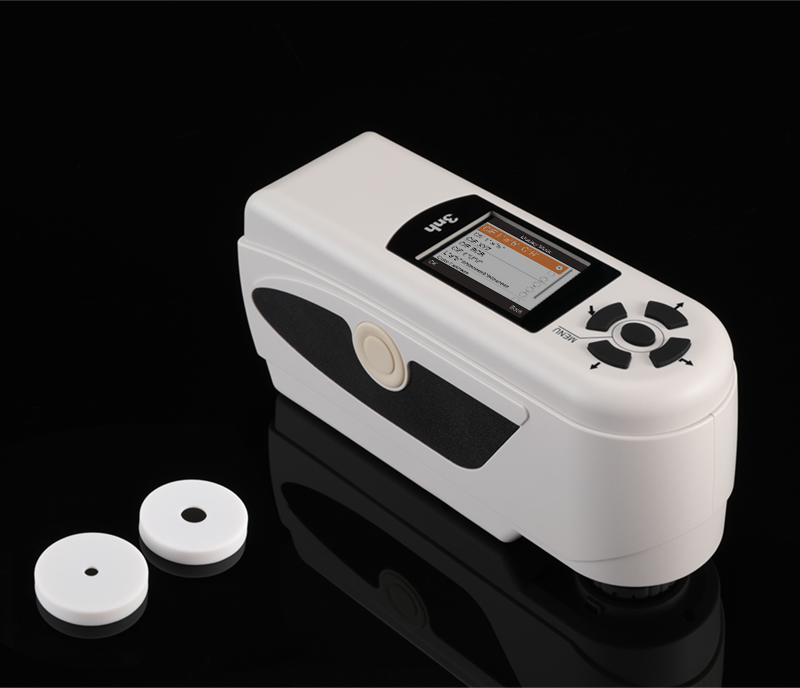

Three measuring apertures for more circumstances.
Five color spaces for more color schemes selection.
Three light sources for more circumstances.

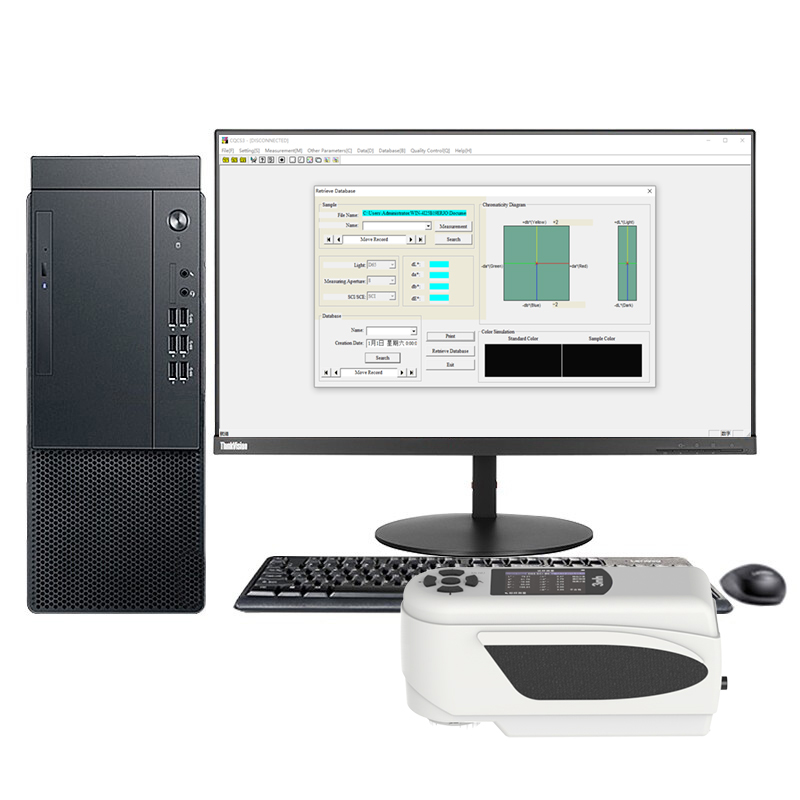

5. PC Software—Realize More Function Expansion

3nh has the intellectual property of PC software. The corresponding software serial number and password protection are configured in 3nh colorimeter.

Be able to?perform color difference analysis, color difference cumulative analysis, chromaticity index, color sample database management, simulating object color, etc.

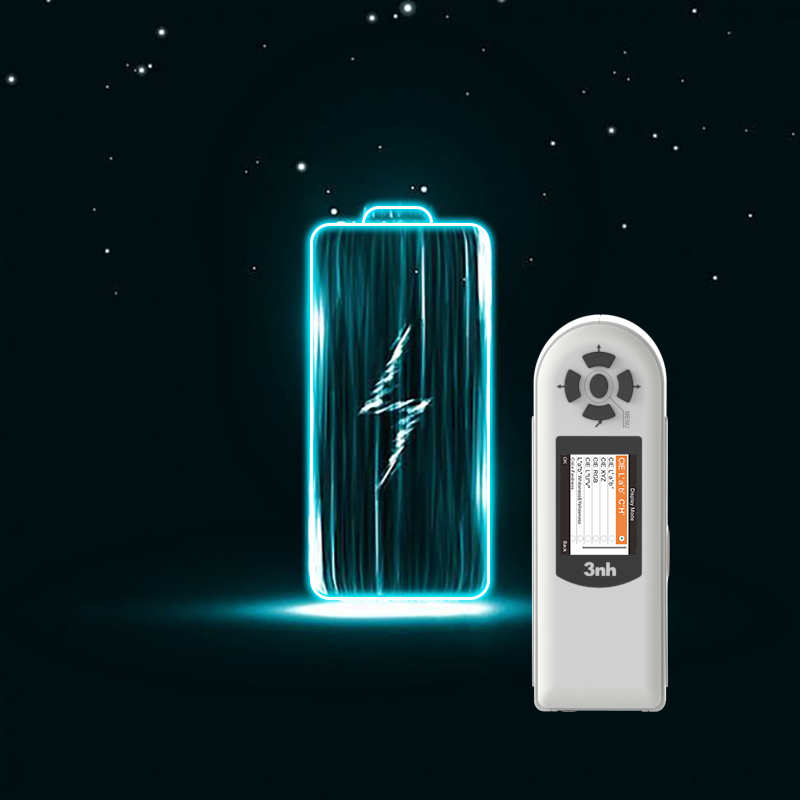

6. Advanced Power Management Design

3nh is the first enterprise using high capacity Li-ion battery in colorimeter.
3nh Li-ion battery can be repeatedly charged which will save cost. Meanwhile, it can measure more than

3000 times on one charge to ensure the stability of long time measurement.

National Patent and Innovative Technology

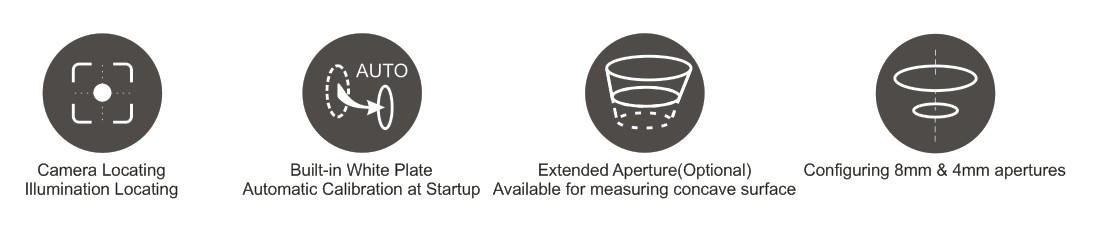

No.1 Camera locating and illumination location (NH310 has new functions of double locating.)

No. 2 Built-in white plate; Automatic calibration at startup (for NH310)

No. 3 Extended aperture (optional), available for measuring concave surface

NH Series Colorimeter Specifications

	NH300	NH310
Illuminating/Viewing Geometry	8/d	8/d
Measuring Aperture	Φ8mm	Φ8mm/Φ4mm
Detector	Silicon photoelectric diode	Silicon photoelectric diode
Color Space	CIELabCh* CIELab*	CIELabCh* CIELab* CIEXYZ CIERGB CIELuv* CIELCh Yellowness & Whiteness Color Fastness
Color Difference Formula	△Eab △Lab △EC*h	△Eab △Lab △ECh* △ECIE94 △Ehunter
Light Source	D65	D65 D50 A
Light Source Device	LED blue light excitation	LED blue light excitation
Errors Between Each Equipment	≤0.40ΔE*ab	≤0.40ΔE*ab
Storage	100pcs standards 20000pcs samples	100pcs standards 20000pcs samples
Repeatability	Standard deviation within ΔE*ab 0.07 Average of 30 measurements of standard white plate	Standard deviation within ΔE*ab 0.06 Average of 30 measurements of standard white plate
Weight	500g	500g
Dimension	205×70×100 mm	205×70×100 mm
Power source	Rechargeable lithium-ion battery 3.7V@3200mAh	Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life	5 years, more than 1.6 million measurements	5 years, more than 1.6 million measurements
Charging Time	2 hours (first time 8 hours--100% electricity)	2 hours (first time 8 hours--100% electricity)
Measuring Times Before Recharging	more than 3000 times	more than 3000 times
Operating Temperature/Humidity Range	-10~40℃, relative humidity 0~85% with no condensation	-10~40℃, relative humidity 0~85% with no condensation
Data Interface	USB	USB
Extended Aperture (optional)	-	Φ8mm extended aperture, available for measuring concave surface
Printer (optional)	Miniature thermal printer	Miniature thermal printer
