Description
Micropore gloss meter YG60M is a high-precision small-aperture handheld gloss meter developed by 3nh , which is professionally used for gloss measurement of curved surfaces or ultra-small objects. The instrument adopts a 60° universal angle design, with a range of up to 1000GU, simple operation and strong portability. It is widely used in gloss measurement and quality inspection in paints, inks, coatings, paper printing, plastic electronics, furniture, ceramics, electroplating, hardware, marble and other industries.
Product Features of Micropore High Precision Gloss Meter YG60M

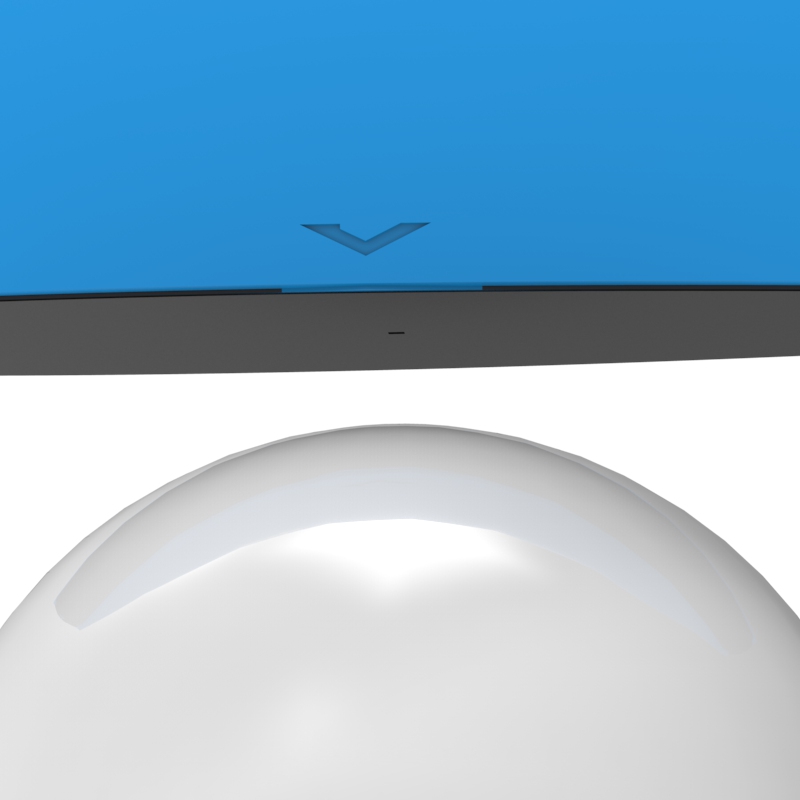

1. Micropore design
It adopts an extremely small measuring aperture of 2 x4 mm , which is suitable for gloss detection of samples such as curved surfaces, irregular objects , and small objects , and has a wider range of applications.
![Micropore design](/static/upload/image/20240614/cb2e284ae998f0465cdbea3b9190c80c.jpg)

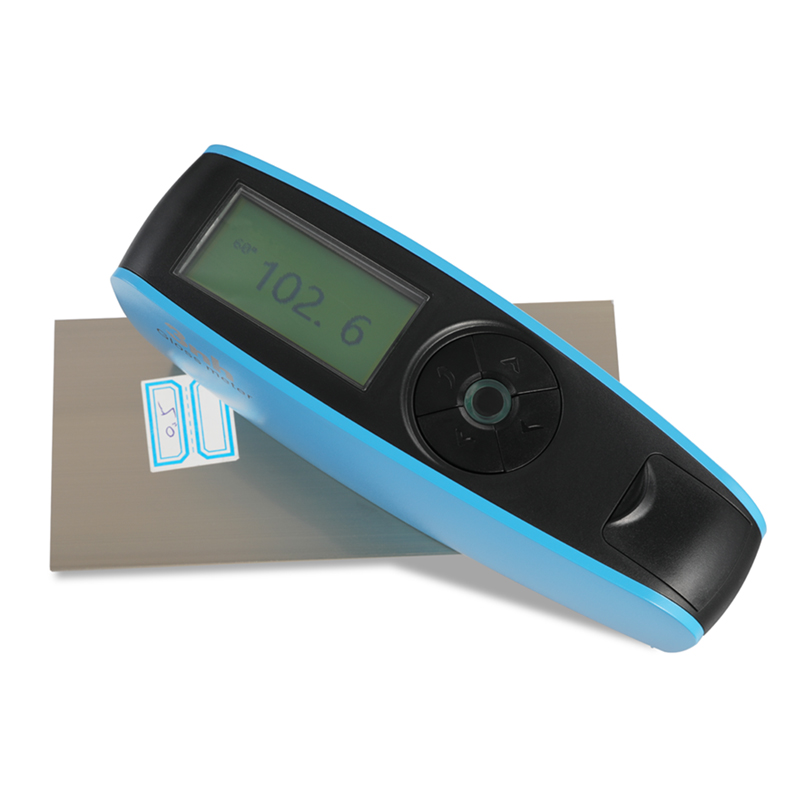

2. High measurement accuracy
The carefully adjusted measurement system and optical path layout ensure stable and accurate gloss measurement , meeting the requirements of JJG 696 working gloss meter, with superior performance, which can fully match the test data of imported gloss meters.
![High measurement accuracy](/static/upload/image/20240614/8472cceba9f4c40b7d158c10ee7c3647.jpg)

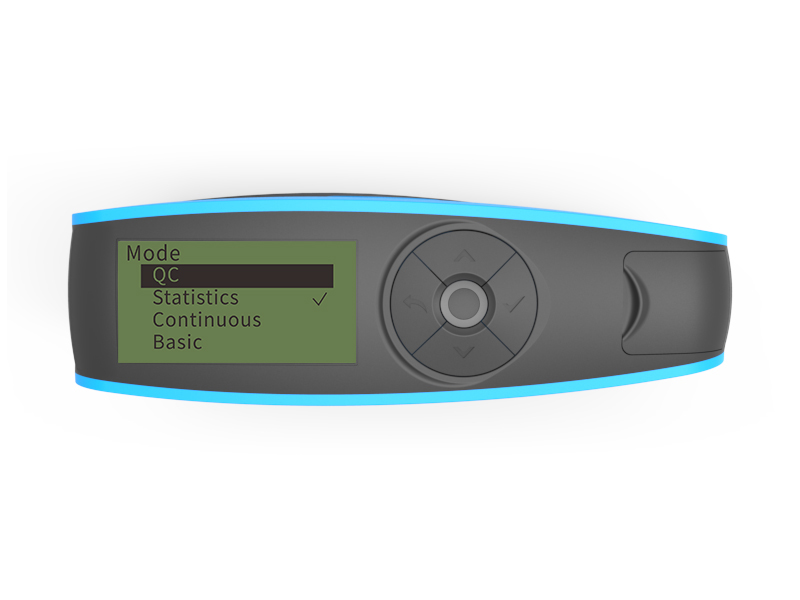

3. Multi-mode measurement
Supports switching between basic mode, statistical mode, continuous mode, and quality control mode to adapt to different application scenarios. The normal mode allows for immediate measurement and fast readings; the quality control mode allows for custom upper and lower limits to achieve fast incoming material testing .
![Multi-mode measurement](/static/upload/image/20240614/e891a3401442e893bc1d53c35557adb2.jpg)

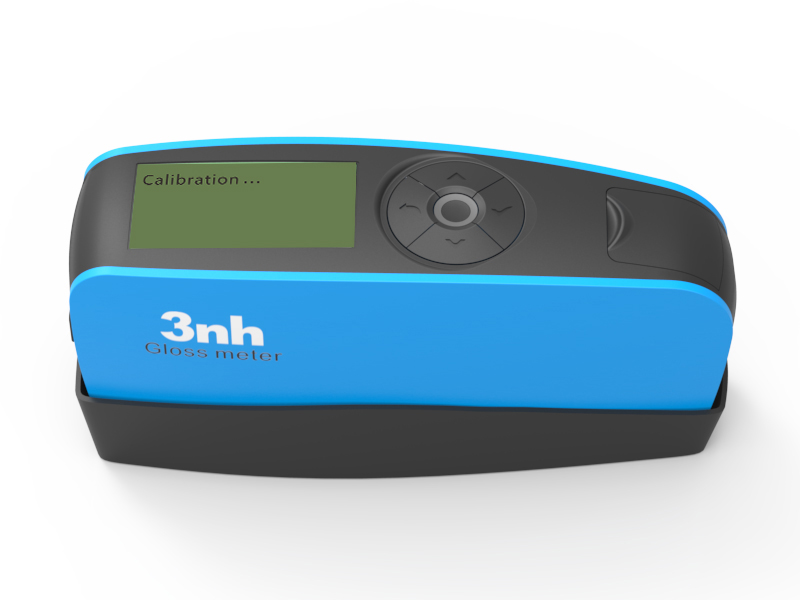

4. Calibration function
Supports calibration and has the function of automatically checking the calibration standard plate to ensure the accuracy and reliability of long-term measurement.
![Calibration function](/static/upload/image/20240614/961ab6c9c96fee95dc823fdf7eaf85d7.jpg)

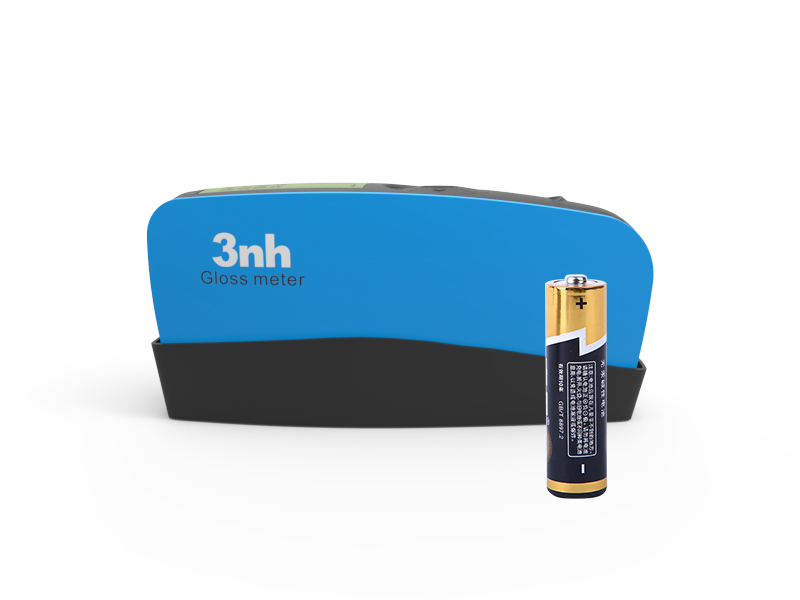

5. Low power consumption
A fully charged AA alkaline battery or NiMH rechargeable battery can measure more than 10,000 times.
![Low power consumption](/static/upload/image/20240614/832e419b611f96650396f440124c9749.jpg)

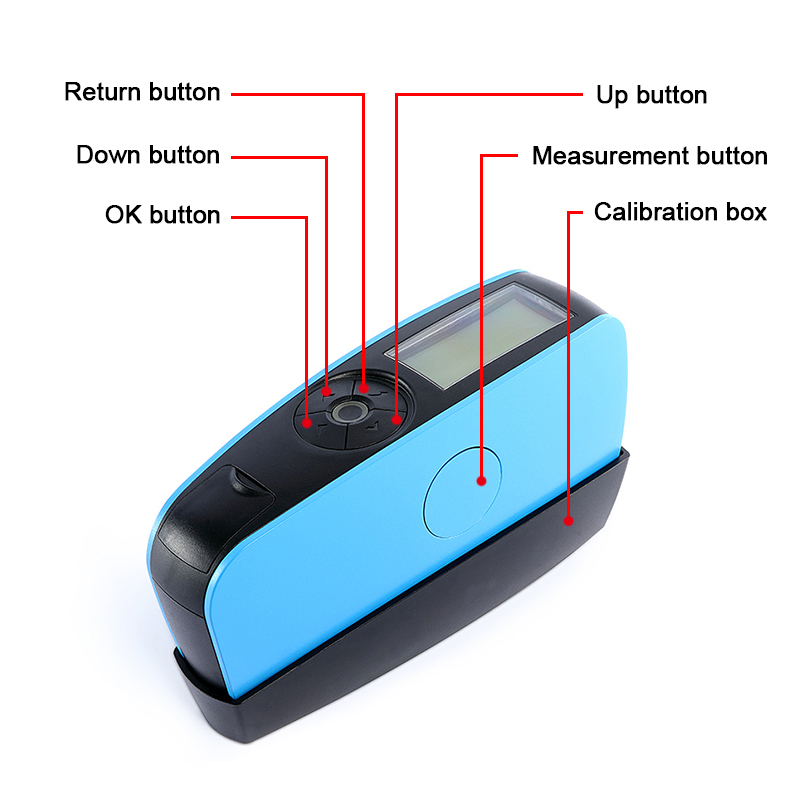

6. Simple operation, easy to use
The instrument is easy to operate and can be used immediately after being turned on. Data can be locked with one button. No complicated settings are required and the measurement can be completed in 0.5 seconds.
![Simple operation, easy to use](/static/upload/image/20240614/0bbed2835e020a5d3447c2536eaa892f.jpg)

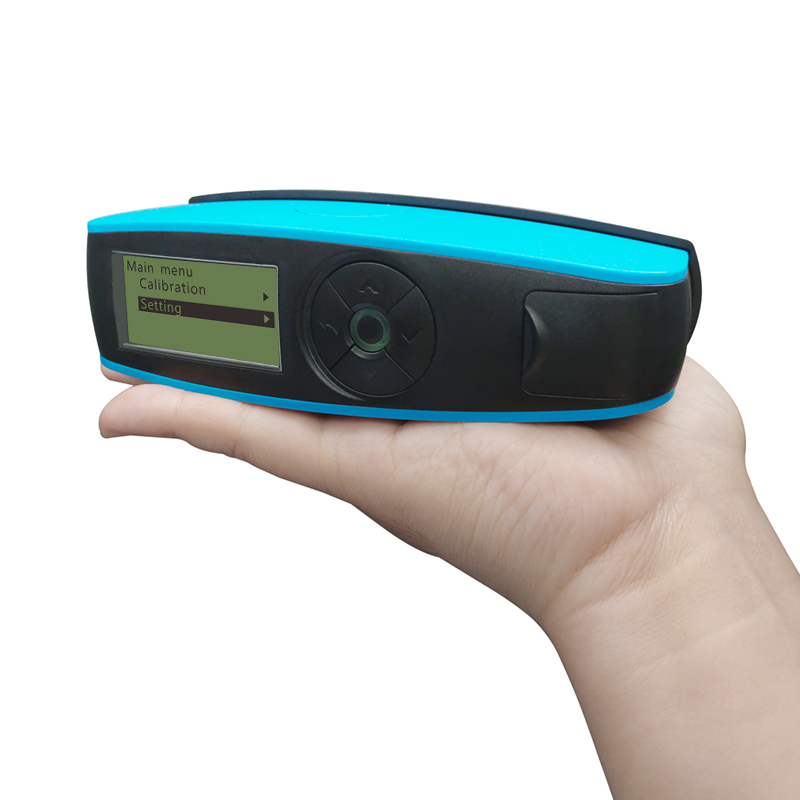

7. Lightweight and portable
The instrument is designed based on ergonomics, with a compact and beautiful appearance and a comfortable grip. It is not only suitable for precise measurement in the laboratory, but also convenient for flexible application in the production site.
![Lightweight and portable](/static/upload/image/20240614/ed4b66f87d2108a5c5d1fba9b270b522.jpg)

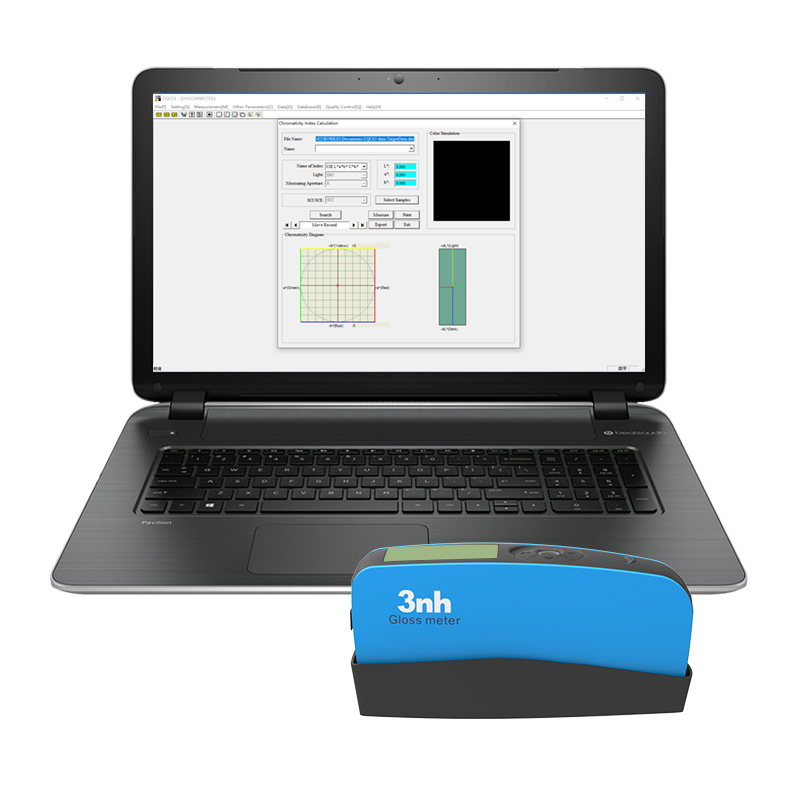

8. PC quality management software
The instrument is equipped with powerful PC data management software, which supports online measurement, printing test reports, data transmission and more functional expansion.
![PC quality management software](/static/upload/image/20240614/feceab74099fc5354cdc82b8493a00d7.jpg)
Micropore High Precision Gloss Meter YG60M Technical Parameters
Product number |
YG60M 60° Micropore High Precision Gloss Meter |
Measuring Angles |
60° |
Measuring spot(mm) |
60°:2X4 |
Measuring range |
60°: 0~1000GU |
Graduation value |
0.1GU |
characteristic |
It can be used for gloss measurement and gloss data transmission in paint, ink, coating, paper printing, plastic electronics, furniture, ceramics, electroplating, hardware, marble and other industries. |
Measurement Mode |
Basic mode, statistical mode, continuous mode, quality control mode |
measure time |
0.5 seconds |
Repeatability |
0~100GU:±0.2GU ;
100~1000GU:±0.2%GU |
accuracy |
Meet the requirements of JJG 696 working gloss meter |
Automatic shutdown time |
30~120 seconds optional |
Long time calibration |
Auto Identify Calibration Board and Calibrate / manual calibration |
language |
Simplified Chinese, English, Traditional Chinese |
Storing data |
35,000 (15,000 in basic mode and continuous mode, 10,000 in quality control mode, 10,000 in statistical mode) |
Display |
2.3 inch black and white display |
size |
160X52X84mm |
weight |
About 300g (including calibration box and batteries) |
power supply |
1 AA alkaline battery or NiMH rechargeable battery, can measure more than 10,000 times; or use USB port |
interface |
USB |
PC Software |
GQC6 quality management software, quality inspection report printing, more functional expansion |
Operating temperature range |
0~40°C (32~104°F) |
Storage temperature range |
-20~50°C (-4~122°F) |
humidity |
Less than 85% RH, no condensation |
Standard accessories |
USB data cable, instruction manual, GQC quality management software (download from official website or provided by after-sales), calibration board |
Optional accessories |
Micro printer, Bluetooth 5.0 adapter |
Note |
The technical parameters are for reference only, please refer to the actual products sold |
