According to users’ needs, various standard light sources recognized by the International Commission on Illumination (CIE) can be provided, meeting all major visual evaluation standards, including AS, ASTM, BSI, DIN, and ISO international standards, such as ISO 3664, ISO 3668, ISO 13076, ISO 23603, AATCC EP9, ASTM D1729, DIN 6173, CIE S025/E, BS 950 Pt.2, etc.
Advantages of standard color light box:
1. D60(4) color light box will show the using time of each light source and
total using time.
2. Automatically switch and with the function of metamerism.
3. Without preheating, no flicker.
4. Low energy consumption and high luminous efficiency.
5. Small size, easy to use and with low price.
Specifications
Item |
Name |
Model | D65 | TL84 | F | UV |
Power Supply |
10106 |
Standard light source box | D60(4)Four light source(220V) |
2pcs |
2pcs |
4pcs |
1pcs | 220V/50Hz |
10106 |
Standard light source box | D60(4)Four light source(110V) |
2pcs |
2pcs |
4pcs |
1pcs | 110V/60Hz |
Optional Accessory：45 degree stand
color light box parameters

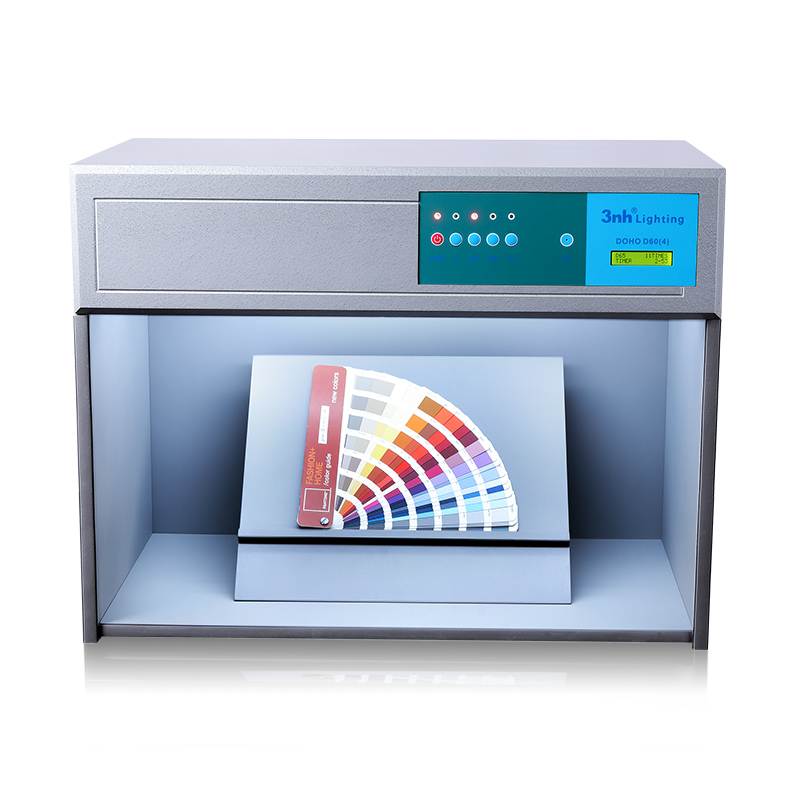

Model: D60(4)Four light source
Configuration: D65/TL84/F/UV Four light sources
Weight: 28Kg
Size(L*W*H): 710x405x570 mm
Light source
D65 International standard Artificial Daylight
Color temperature: 6500K Power: 18W
TL84 Applied to stores in Europe, Japan and China
Color temperature: 4000K Power: 18W
F "Sun-setting Light Yellow" incandescent light source(imitation of sunset)
Color temperature: 2700K Power: 40W
UV Viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments
Wavelength: 365nm Power: 40W
