Description
TS7X series grating spectrophotometer is 3NH company spent 3 years, carefully
designed, fully with independent intellectual property rights grating spectrophotometer.
The instrument uses 1000 lines of precision shining grating as the optical
splitter, built-in silicon photodiode array (double row 40 groups) sensor,
imported white board, repeatability delta E* AB easily controlled within
0.03, the use of long life full spectrum LED as the light source, optical
resolution in the visible range is less than 10nm.
Under the condition of d/8 geometric optical illumination recommended
by CIE, TS7700 grating spectrophotometer can accurately measure the SCI

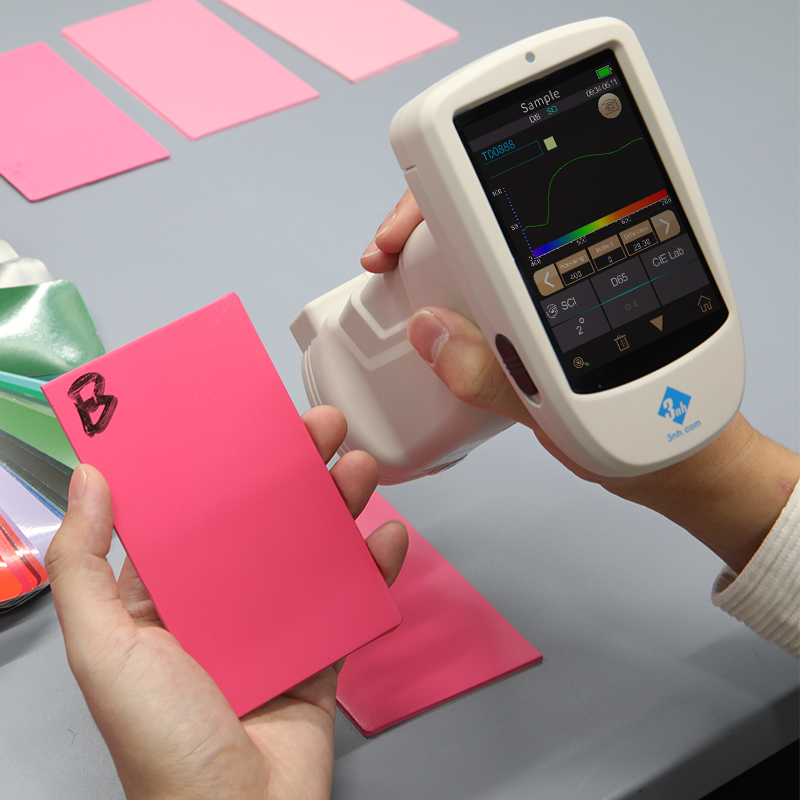

and SCE reflectance data of samples / fluorescent samples, and also can
accurately measure and express various color difference formulas and color
indexes in various color spaces. With spectrophotometer TS7700, it can
easily realize the accurate transmission of color and can also be used
as the detection equipment of accurate color matching system.

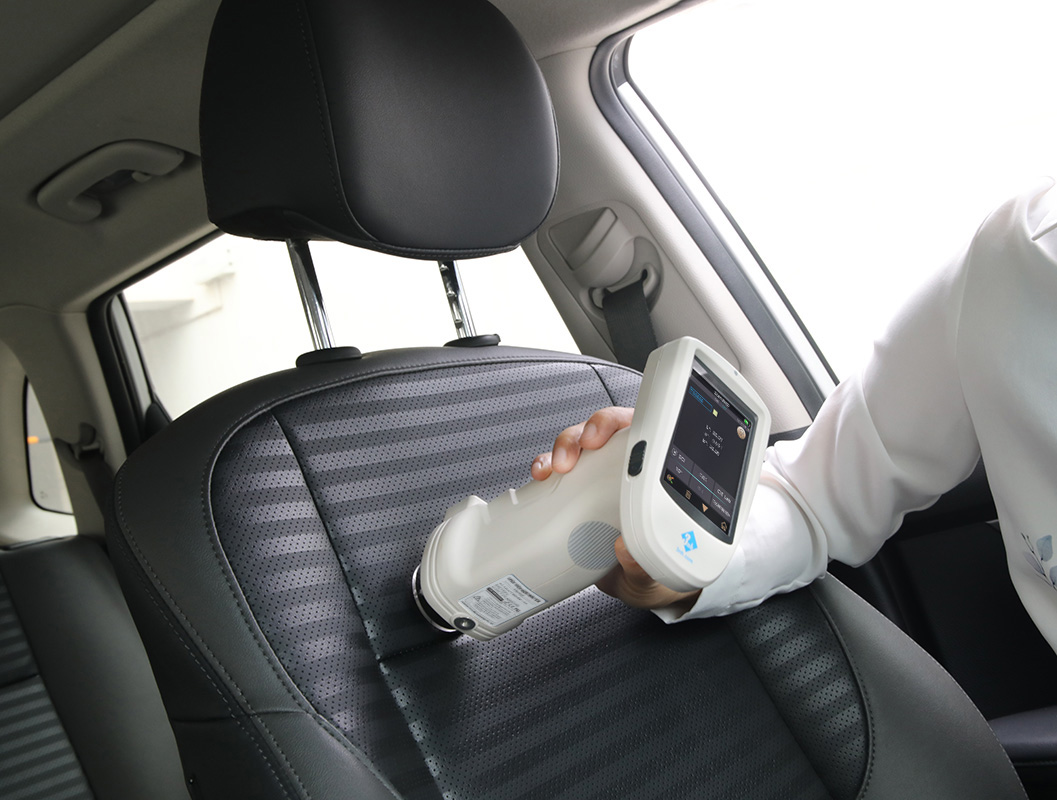

TS7708 spectrometer is equipped with φ 8mm, φ 4mm, 1x3mm three measuring
apertures, more adaptability, accurate measurement of color, stable performance,
in plastic electronics, paint coating, textile printing and dyeing, printing
paper products, automotive, medical, cosmetics and food industries, in
scientific research institutions, laboratory fields are widely used.
Technical Advantages:

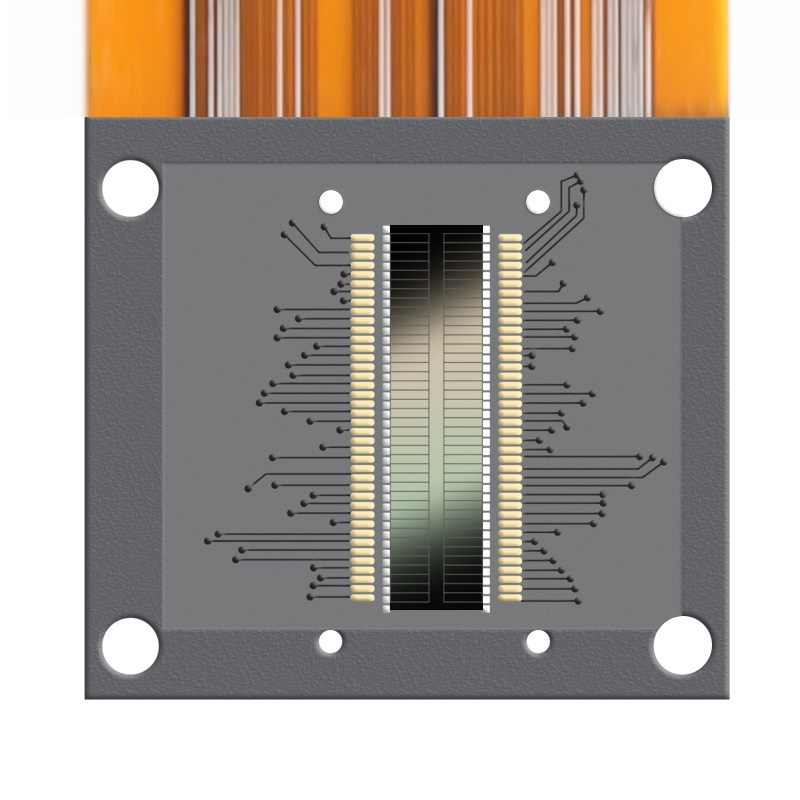

1. Silicon photodiode array (double 40 array) sensor
The larger area of the double 40 array sensor, the strong light will not
saturation, weak light sensitivity and a wider spectrum response range,
to ensure the instrument measurement speed, accuracy, stability and consistency,
master the core technology, and the international standard of the same
platform, complete compatibility.

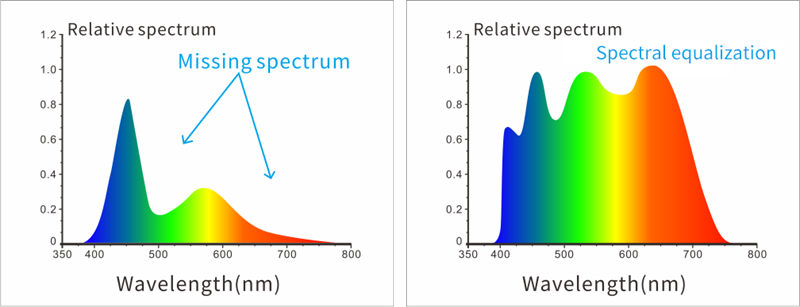

2. Adopt full waveband balanced LED light source
The full waveband balanced LED light source ensures sufficient spectral
distribution in the visible light range, avoids the spectral loss of white
LED in specific waveband, and ensures the measurement speed and accuracy
of the measurement results.

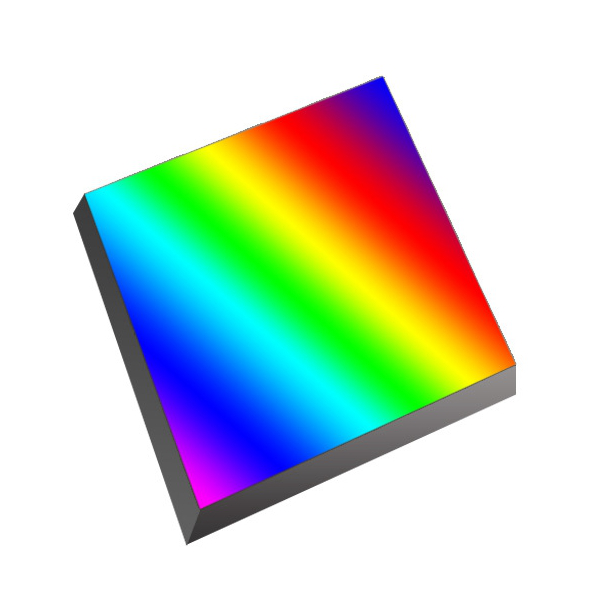

3. Grating spectroscopic technique
Use Grating spectroscopic technique, with higher resolution, to make the
color measurement more accurate.

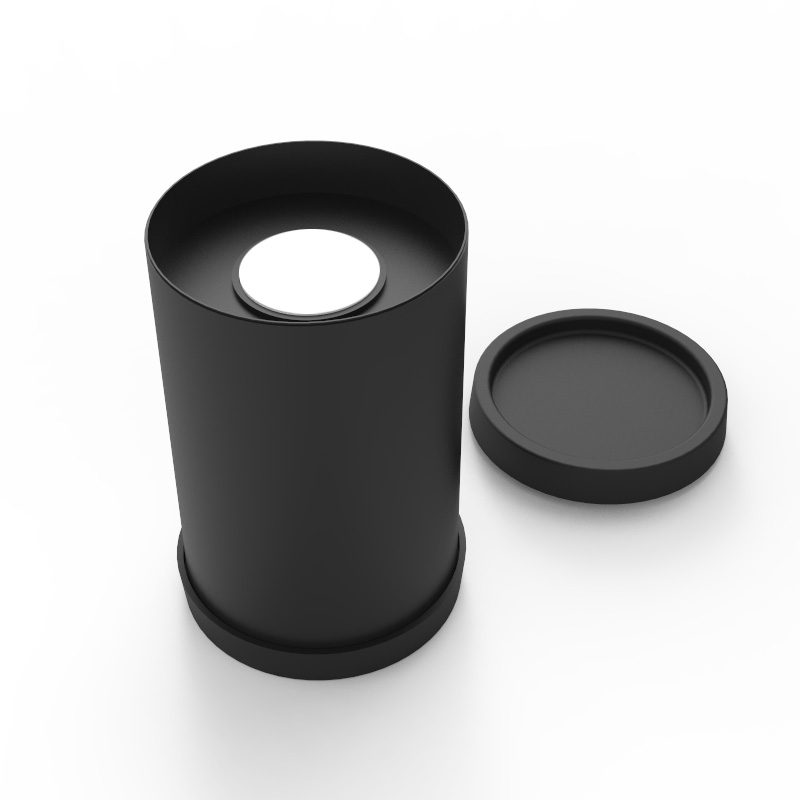

4. Place the base safely to ensure that the whiteboard is not dirty.
5. Professional whiteboard, a lifetime never change color commitment

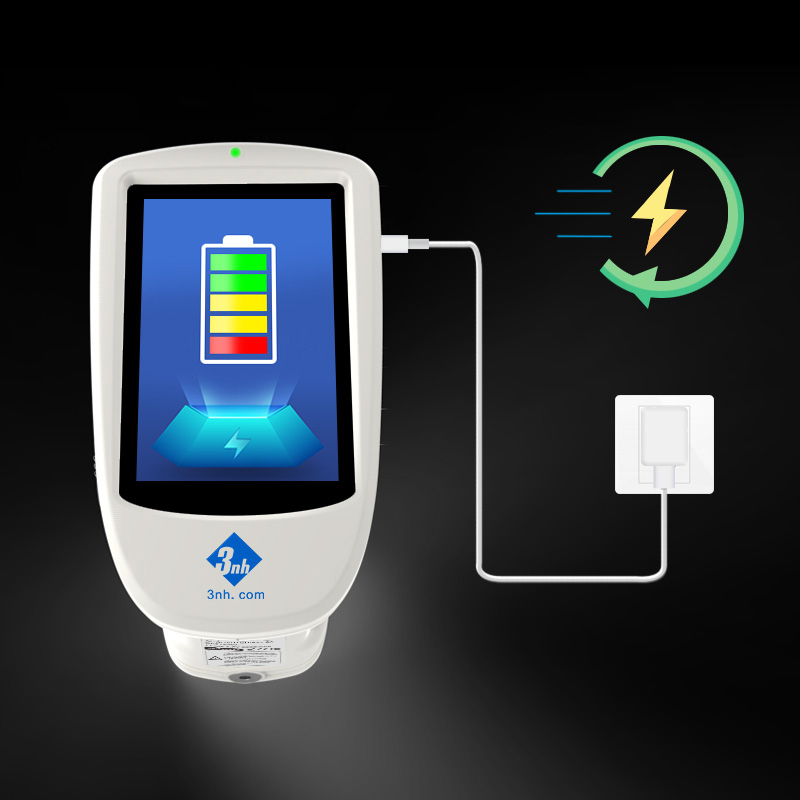

6. Fast charging
Special fast charging mode, low voltage to remind charging or use off-duty
time charging, to ensure the capacity and life of the battery (note: frequent
repeated battery charging more harm).

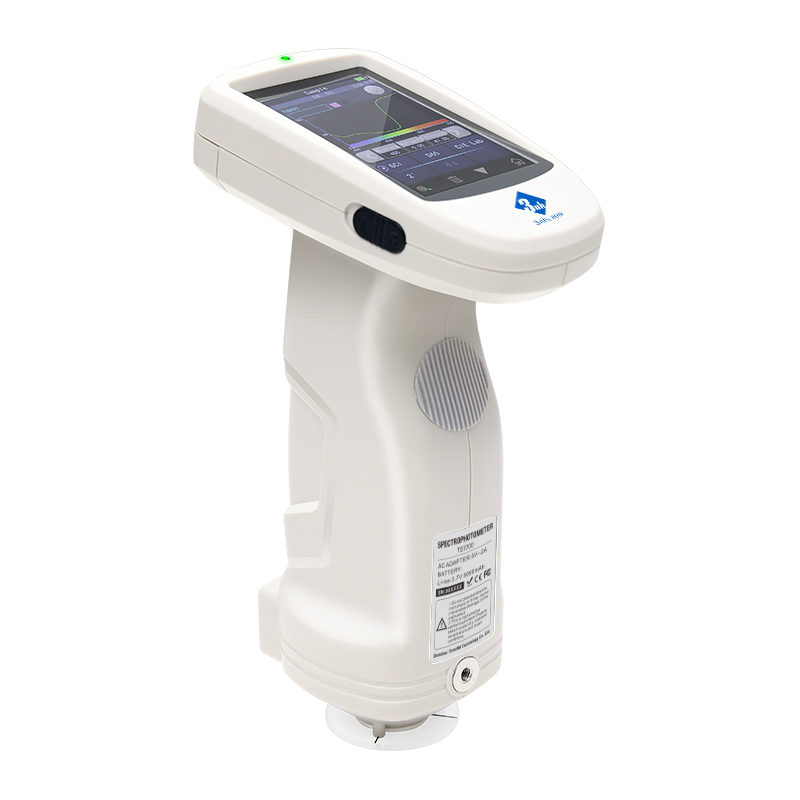

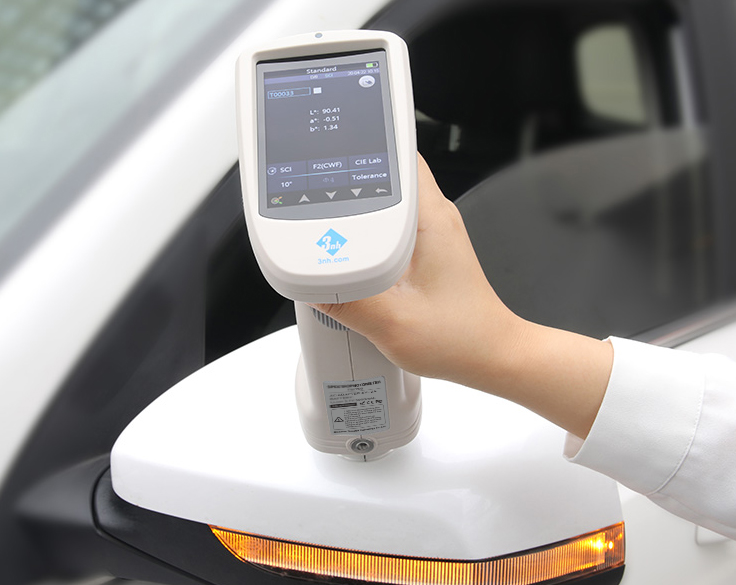

7. New fashionable appearance design based on ergonomics
The position of the hand holding and the measurement button are carefully
designed to meet different holding habits, smooth and fine surface, resulting
from the high-precision appearance processing art.

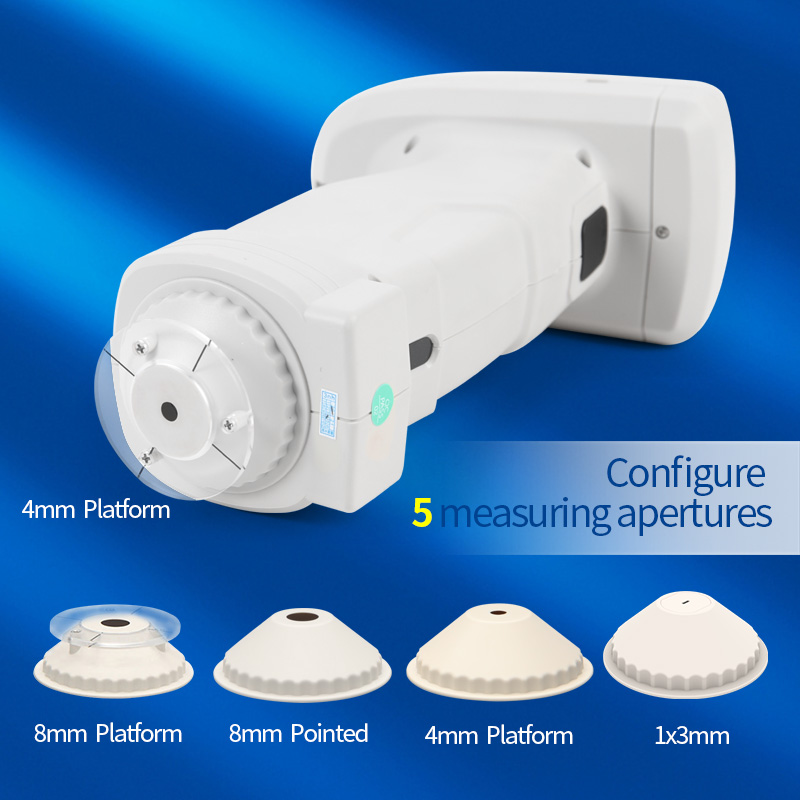

8. Equipped with three measuring apertures to meet the most samples measurement
The Factory configuration of spectrophotometer TS7708 is with ø 8mm flat
aperture, ø 8mm tip aperture, ø 4mm flat aperture, ø 4mm tip aperture,
ø 1x3mm aperture, a total of five measuring apertures, to meet the most
samples measurement.

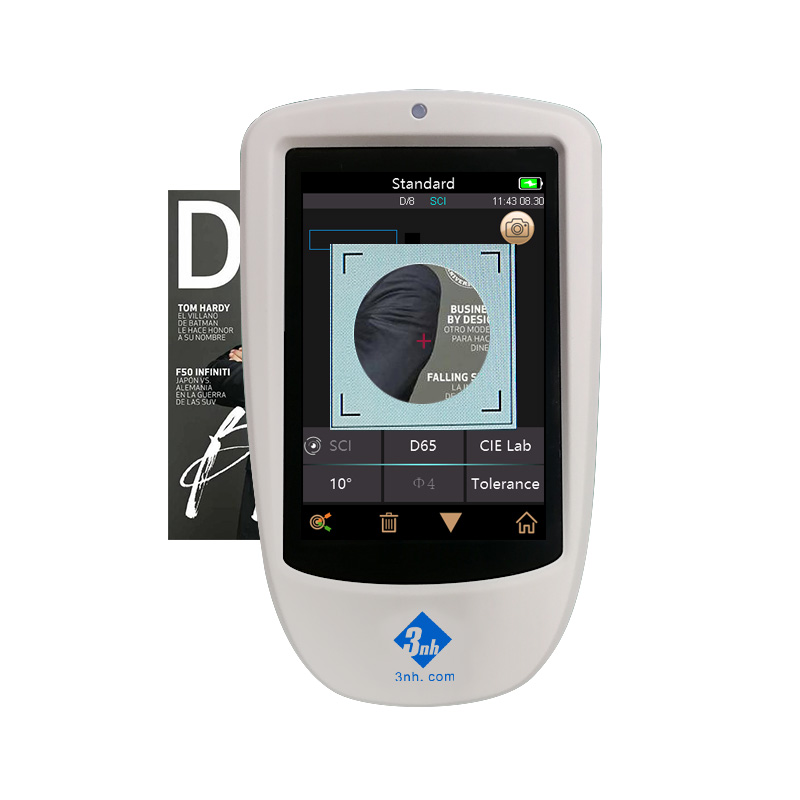

9. Camera positioning can clearly observe the measured area
Spectrophotometer TS7708 built-in camera positioning, through the camera
real-time view, can accurately determine whether the object measured part
is the target center, improve the measurement efficiency and accuracy.

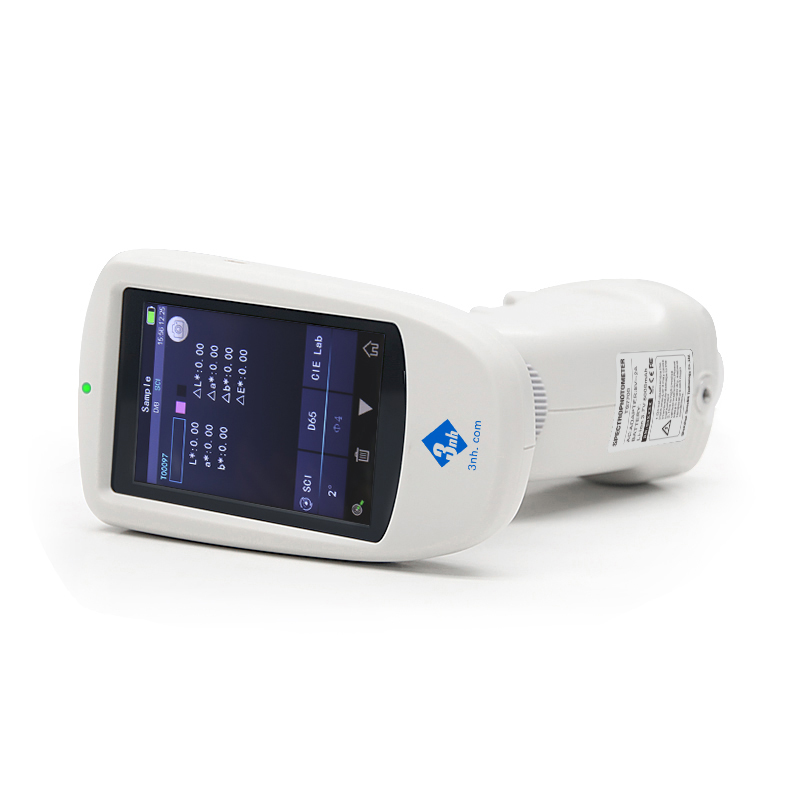

10. Excellent errors between instruments and repeatability
Ensure the consistency of measurement data of multiple equipment, to be
used for color matching and accurate color transfer.

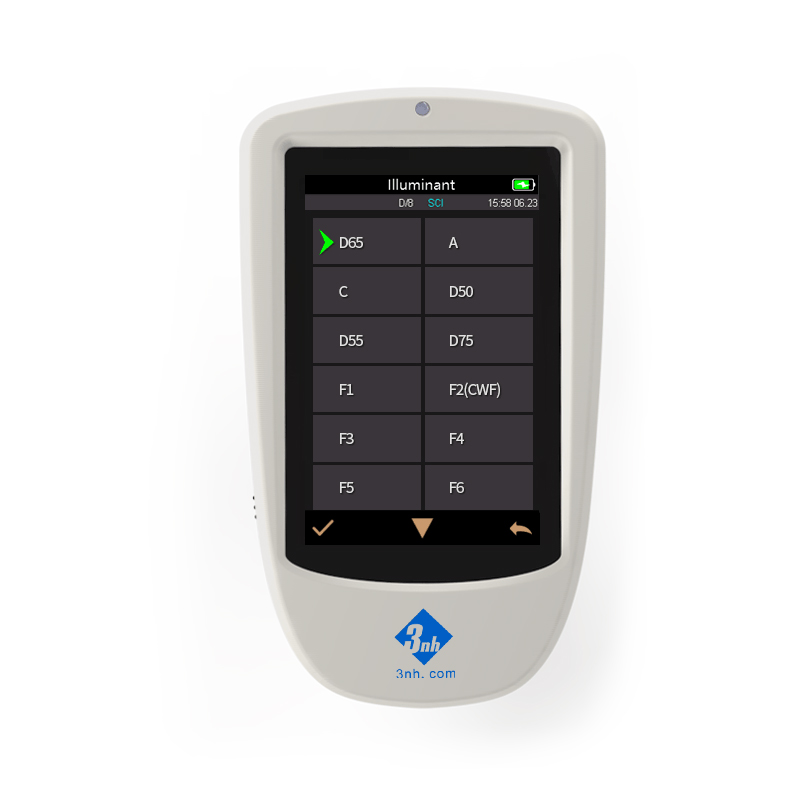

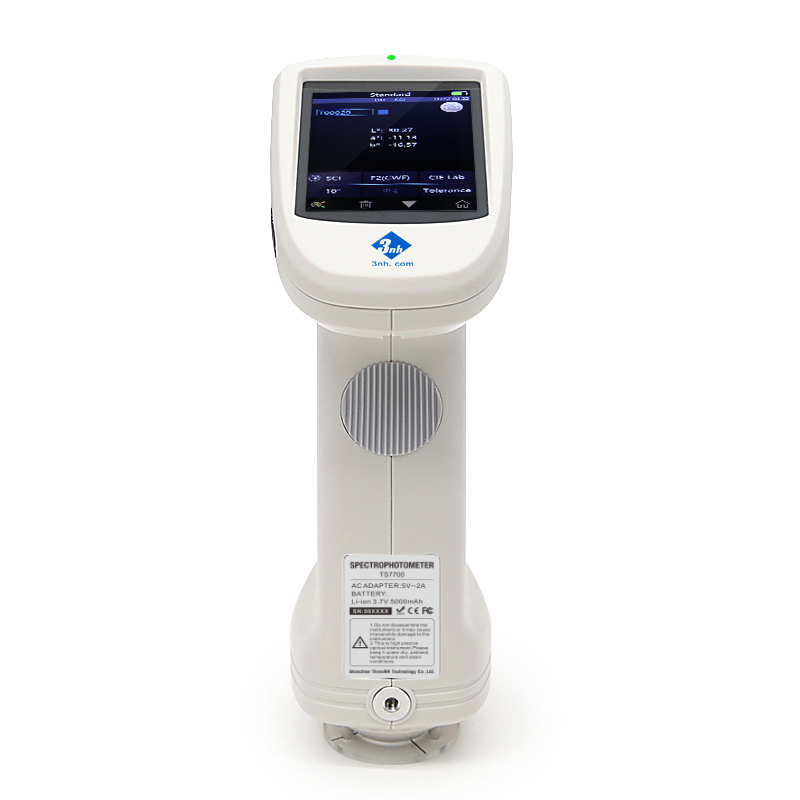

11. A variety of color spaces and observation light sources
Offer CIE LAB,XYZ,Yxy,LCh,CIE LUV, S-RGB,HunterLab,βXY,DIN Lab99 Munsell(C/2)
color spaces, and D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4 and F5,
F6 and F7 (DLF), F8, F9, F10 (TPL5), and F11 (TL84), F12 (TL83 / U30) a
variety of light sources, to meet the special measurement requirements
under different measurement conditions.

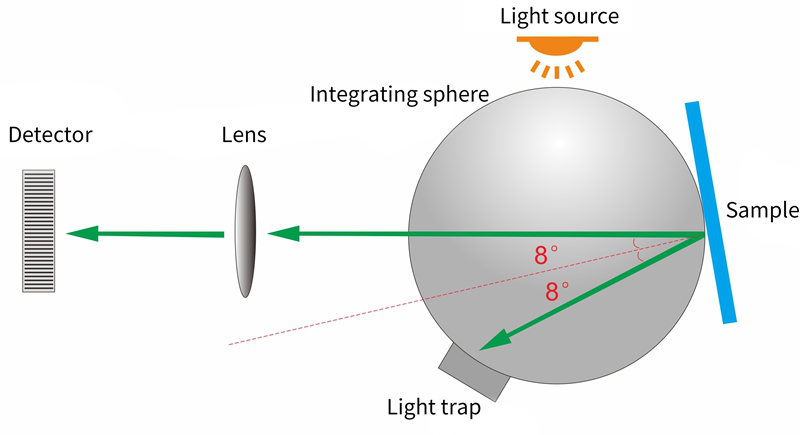

12. Adopt international common use d/8 SCI/SCE Synthesis technology
Adopt D/8 (SCI/SCE) measurement structure to more objectively reflect
the color itself, and reduce the impact of object surface texture on test
results, in accordance with CIE No.15. GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM
E1164,DIN5033 Teil7.

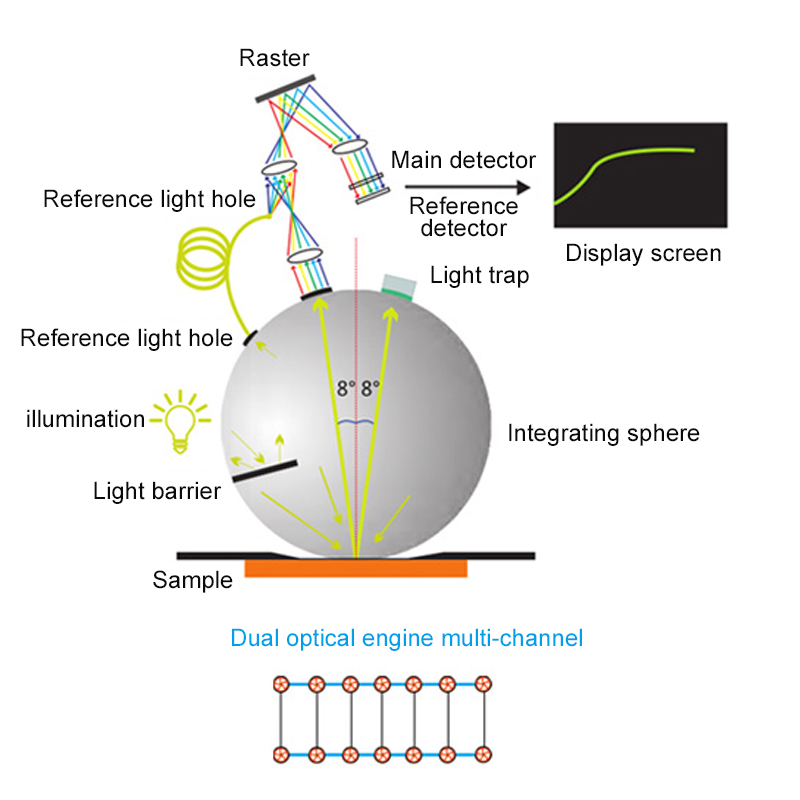

13. Dual optical path system for more accurate color measurement
Dual optical path system, optical resolution is less than 10nm in the
visible range, can simultaneously measure the sample SCI, SCE spectrum.

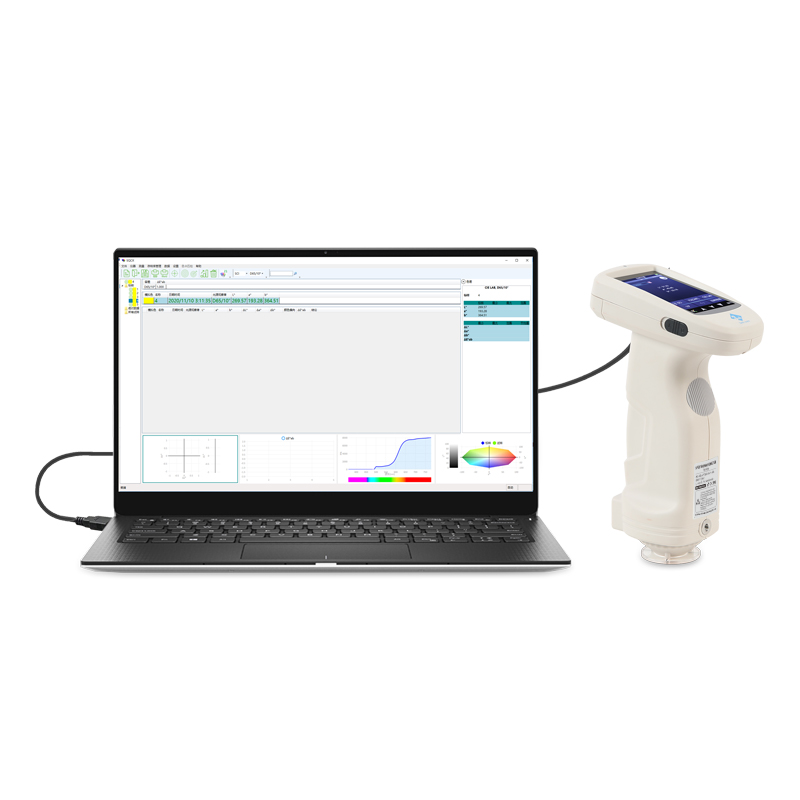

14. PC software has powerful function expansion
SQCX quality management software with TS7708 spectrophotometer is suitable
for quality monitoring and color data management of various industries.
Digitize user data color management.
Specification
|
Model |
TS7708 |
|
Optical Geometry |
D/8 (diffused illumination, 8-degree viewing angle)
SCI (specular component included)/SCE (specular component excluded) ;
Include UV / excluded UV light source
Conforms to CIE No.15, GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033
Teil7 |
|
Characteristic |
3 measuring apertures for accurate color analysis and transmission in
laboratory
It is used for precise color measurement and quality control in plastic
electronics, paint and ink, textile and garment printing and dyeing, printing,
ceramics and other industries, and for fluorescent sample measurement. |
|
Integrating Sphere Size |
Φ40mm |
|
Light Source |
Combined full spectrum LED light source, UV light source |
|
Spectrophotometric Mode |
Flat Grating |
|
Sensor |
Silicon photodiode array (double row 40 groups) |
|
Wavelength Range |
400~700nm |
|
Wavelength Interval |
10nm |
|
Semiband Width |
10nm |
|
Measured Reflectance Range |
0-200% |
|
Measuring Aperture |
3 apertures: MAV:Φ8mm/Φ10mm；SAV:Φ4mm/Φ5mm;LAV:1x3mm
LAV1x3mm: Slightly poor accuracy, can be used for color test |
|
Specular Component |
SCI&SCE |
|
Color Space |
CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 Munsell(C/2)) |
|
Color Difference Formula |
ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter) |
|
Other Colorimetric Index |
WI(ASTM E313,CIE/ISO,AATCC,Hunter),
YI(ASTM D1925,ASTM 313),
Metamerism Index MI,
Staining Fastness, Color Fastness, Color Strength, Opacity,
8° Glossiness,555 tone classification |
|
Observer Angle |
2°/10° |
|
Illuminant |
D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30) |
|
Displayed Data |
Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph,
PASS/FAIL Result, Color Offset |
|
Measuring Time |
About 1.5s (Measure SCI & SCE about 3.2s) |
|
Repeatability |
Spectral reflectance: MAV/SCI, Standard deviation within 0.08% (400 nm
to 700 nm: within 0.18%)
Chromaticity value: MAV/SCI, within ΔE*ab 0.03 ( When a white calibration
plate is measured 30 times at 5 second intervals after white calibration) |
|
Inter-instrument Error |
MAV/SCI, Within ΔE*ab 0.15
(Average for 12 BCRA Series II color tiles) |
|
Measurement Mode |
Single Measurement, Average Measurement(2-99times) |
|
Locating Method |
Camera Locating,stabilizer cross position |
|
Dimension |
L*W*H=129X76X217mm |
|
Weight |
Approx 600g |
|
Battery |
Li-ion battery, 6000 measurements within 8 hours |
|
Illuminant Life Span |
5 years, more than 3 million times measurements |
|
Displayed Data |
3.5-inch TFT color LCD, Capacitive Touch Screen |
|
Data Port |
USB, Bluetooth 4.2 |
|
Data Storage |
Standard 1000 Pcs, Sample 30000 Pcs |
|
Language |
Simplified Chinese, English, traditional Chinese |
|
Operating Environment |
0~40℃, 0~85%RH (no condensing), Altitude
< 2000m |
|
Storage Environment |
-20~50℃, 0~85%RH (no condensing) |
|
Standard Accessory |
Power Adapter, User Guide, PC Software(Download from office website),
USB cable, White and Black Calibration Cavity, Protective Cover, Wrist
strap, 8mm flat aperture, 8mm tip aperture, 4mm flat aperture, 4mm tip
aperture,1x3mm tip aperture |
|
Optional Accessory |
Micro Printer, Powder Test Box, Holding base |
|
Notes |
The specifications are subject to change without notice. |
