Description

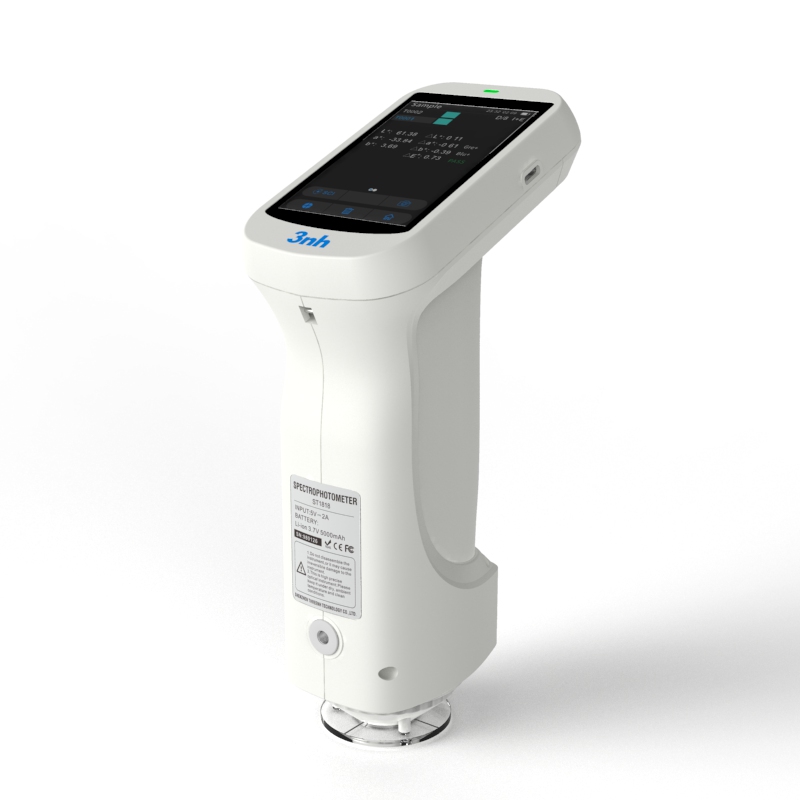

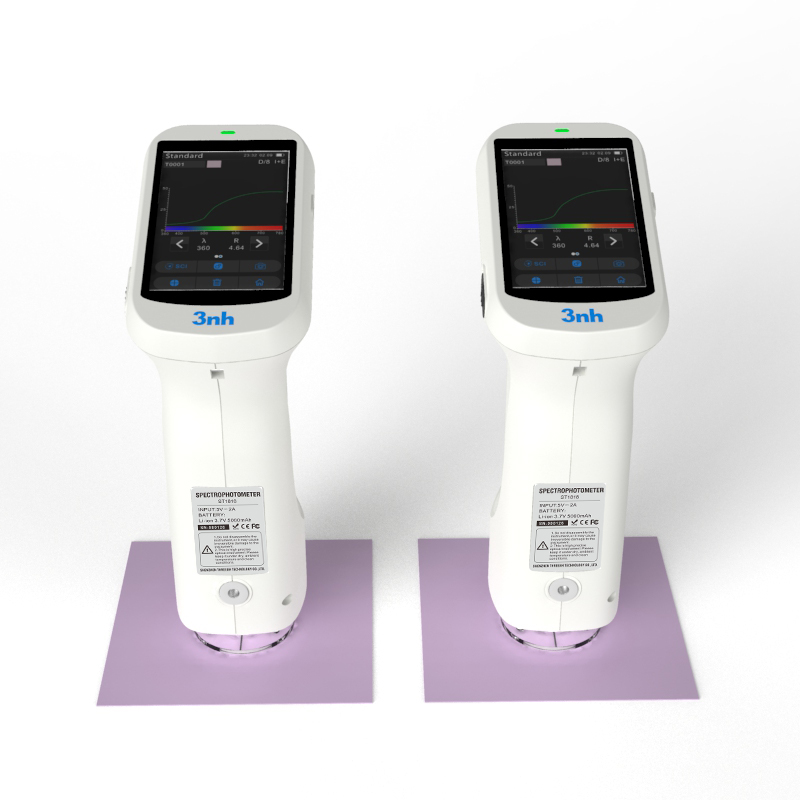

ST2020 is a new portable spectrophotometer with 3nh own core research and development technology，Built-in large area silicon photodiode array (double row 20 groups) sensors, with excellent repeatability and inter-station differences, measuring data continued stable, accurate and reliable. The repeatability ΔE * AB of the array spectrometer ST2020 is easily controlled within 0.028, and the Inter-instrument Error ΔE * AB is controlled within 0.28. The measurement is accurate and can be used for accurate color analysis and transmission in the laboratory.
ST2020 array spectrometer with Φ8MM/φ10mm platform + Φ8MM/φ10mm sharp tip and 1*3MM/φ three measuring aperture, no matter the sample surface is regular flat or curved radian, can easily measure and get reliable and good repeatability data, in plastic electronics, paint coating, textile printing and dyeing, printing paper products, automotive, medical, cosmetics and food industries, scientific research institutions, laboratories are widely used.
Characteristics of the array spectrometer ST2020

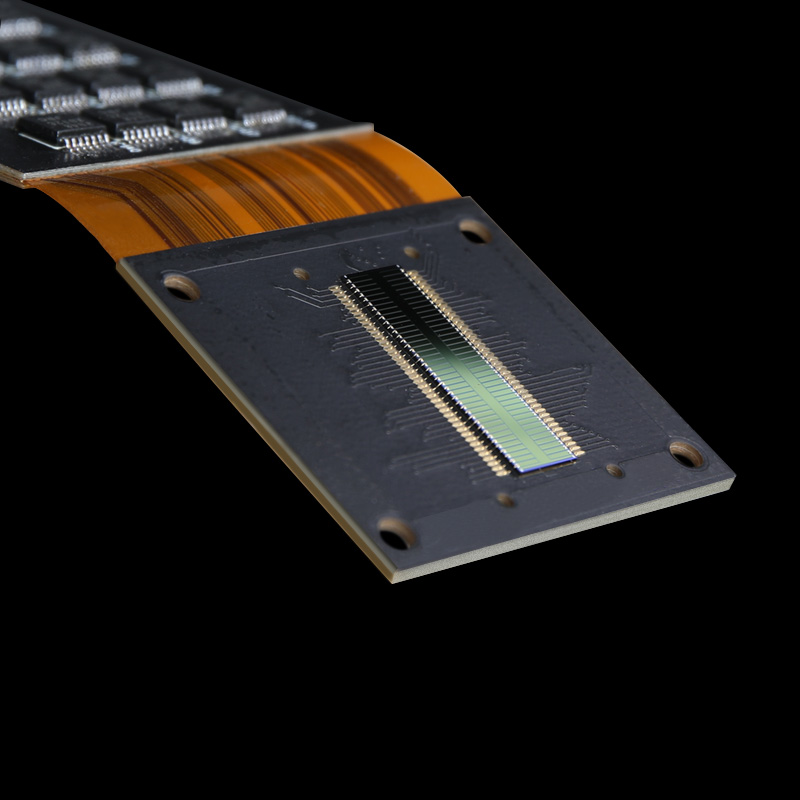

1. Silicon photodiode array (20 double-row) sensors
The larger array sensor, the stronger light will not be saturated, the lower light sensitivity is higher and the wider spectrum response range, has guaranteed the instrument measurement speed, the accuracy, the stability and the consistency, grasps the core technology, with the same platform of international standards, achieve perfect compatibility.
2、Adopt full waveband balanced LED light source

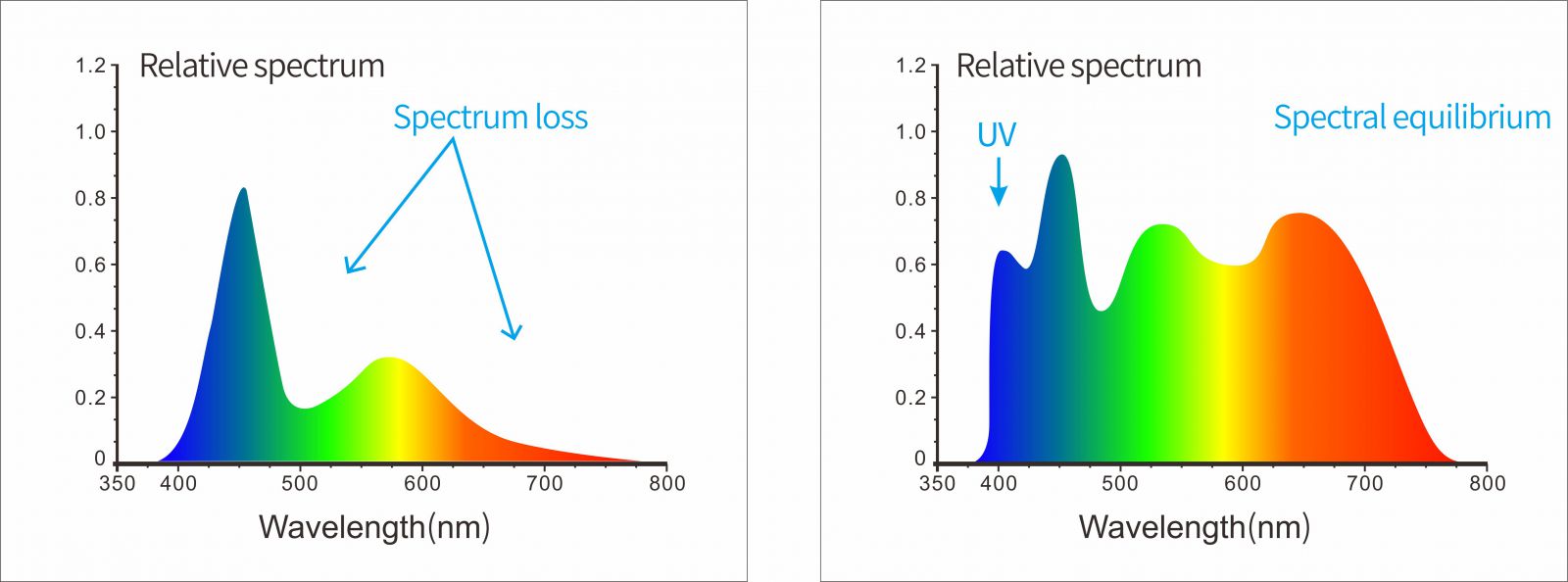

The array spectrometer ST2020 adopts 400 ~ 700nm full waveband balanced LED and UV light source as the illumination light source, which has enough spectrum distribution in the visible light range and avoids the loss of the spectrum of white LED in the specific wave band,Fluorescent materials can also be easily measured.
3、Grating splitting technology
The use of plane grating spectroscopy technology, with a higher resolution, so that more accurate color measurement.

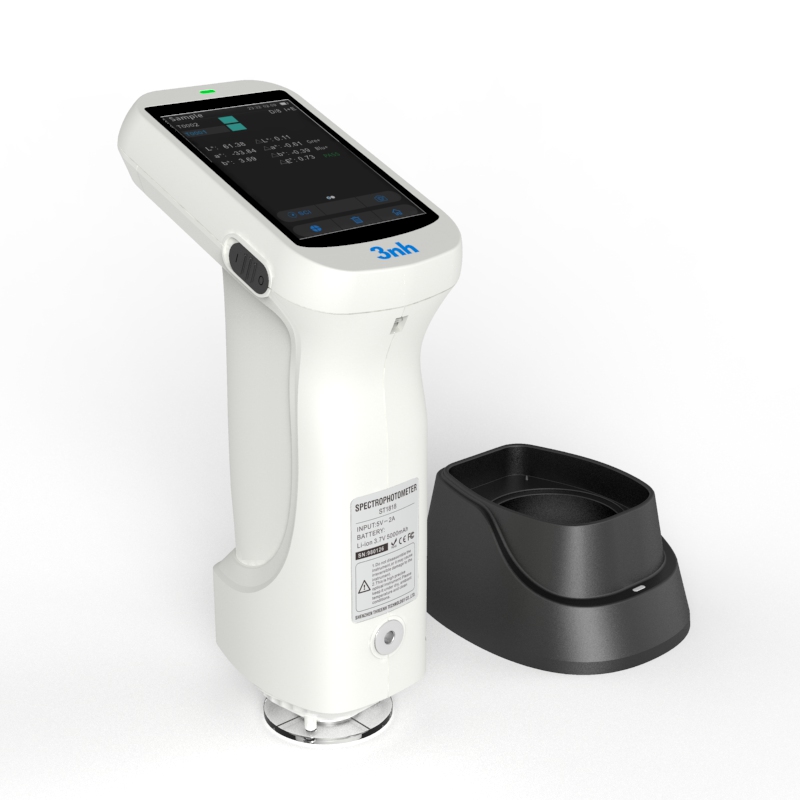

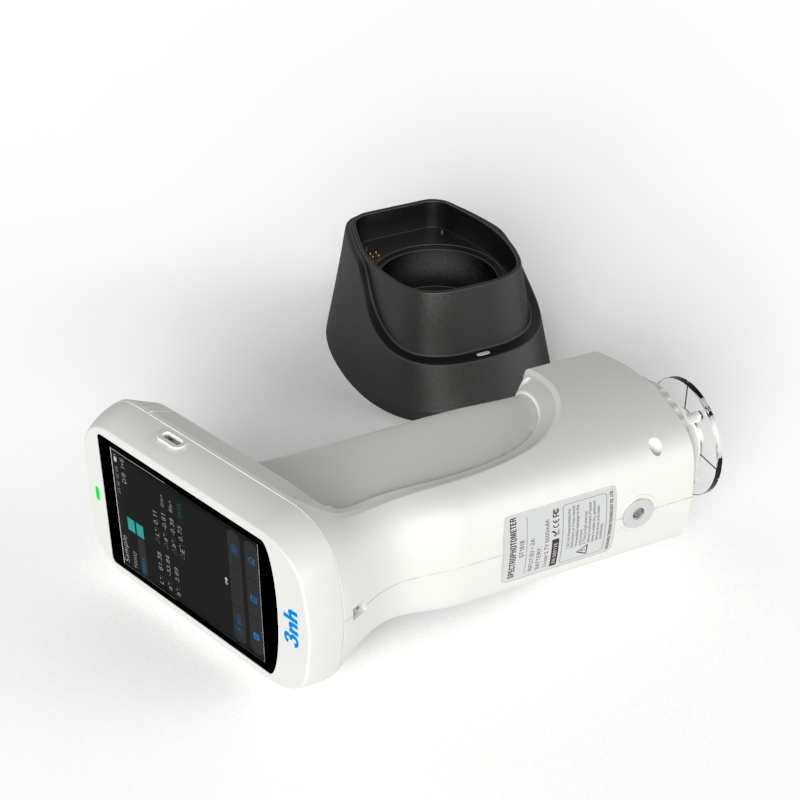

4、Intelligent base, automatic calibration

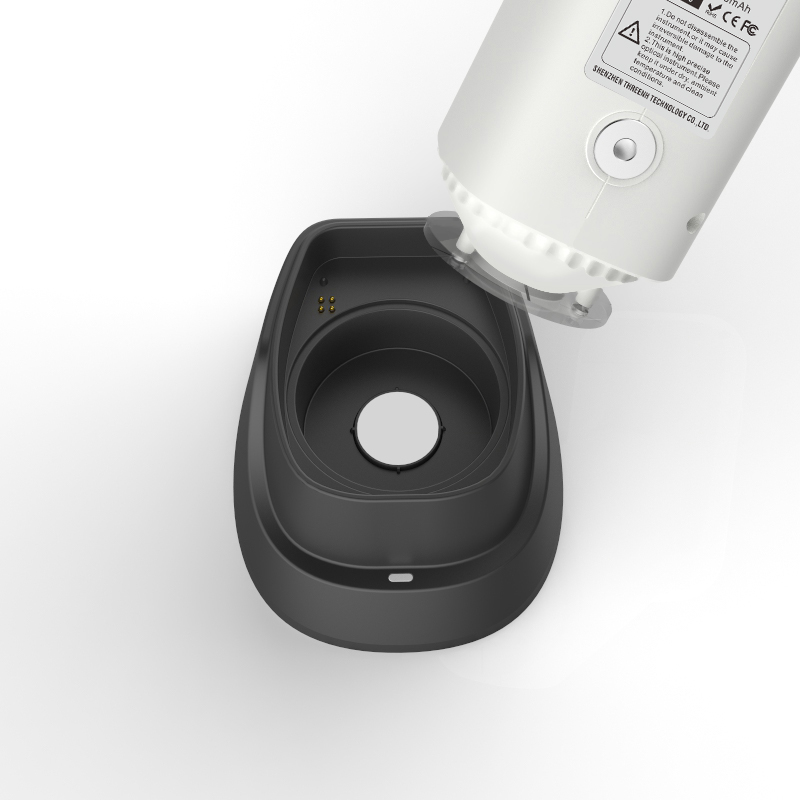

It is equipped with intelligent calibration base, can carry out automatic white board calibration, professional grade standard white board reflectivity R% ≥95% , good surface uniformity, high stability, can obtain repeated accurate data.

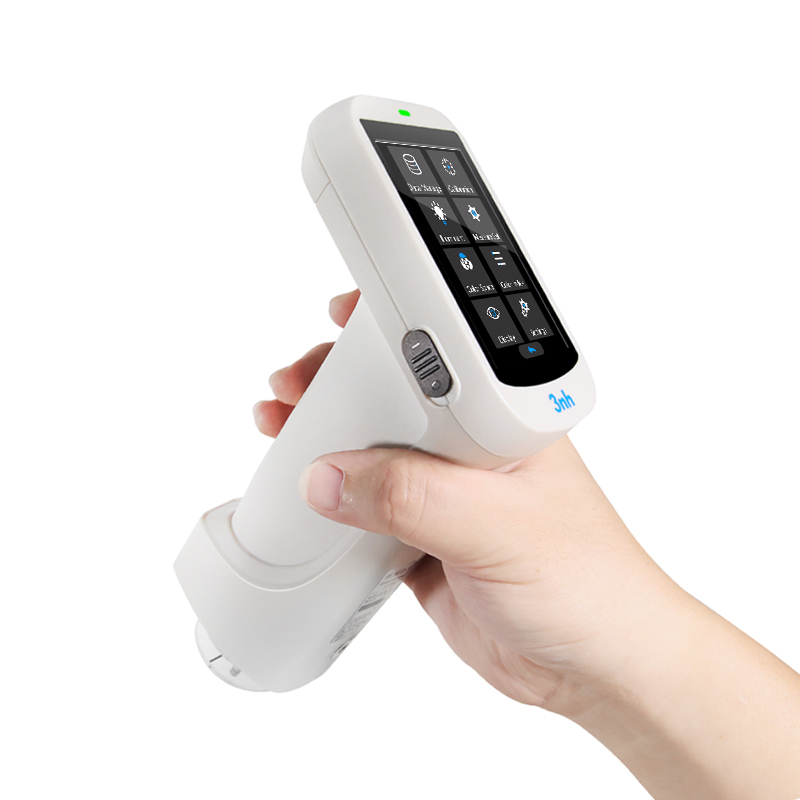

5、New fashion appearance design based on ergonomics
The hand-held position and the position of the measuring button are carefully designed to meet different holding habits, smooth and fine surface, derived from the professional appearance treatment technology.

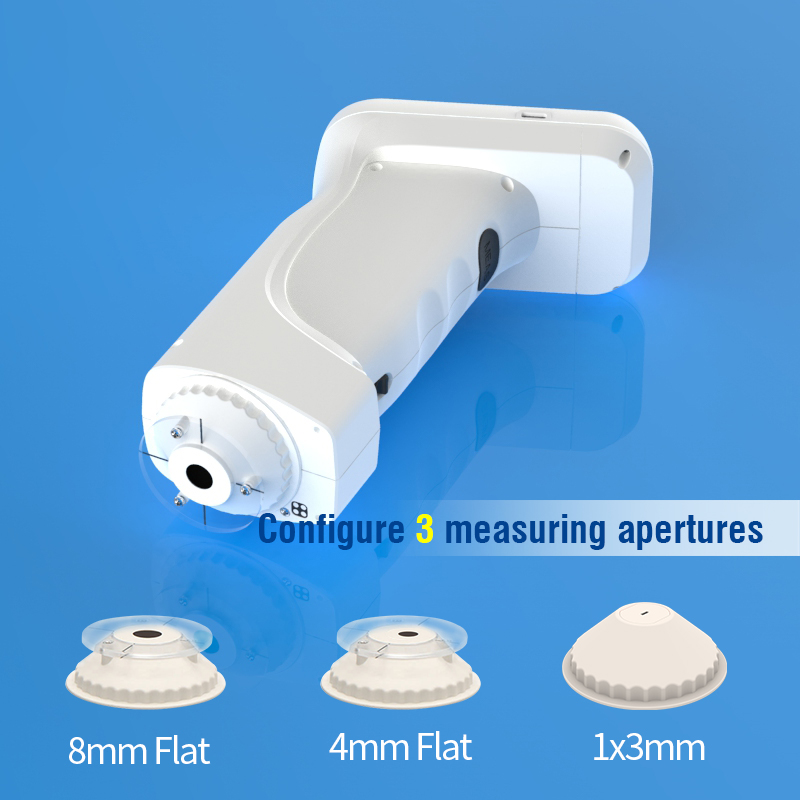

6、 Equipped with three measuring calibers larger to meet the sample measurement needs
The array spectrometer ST2020 is equipped with Φ8mm/φ10mm platform, Φ4mm/φ5mm platform and 1x3mm calibre, which meet the measurement requirements of most special samples.

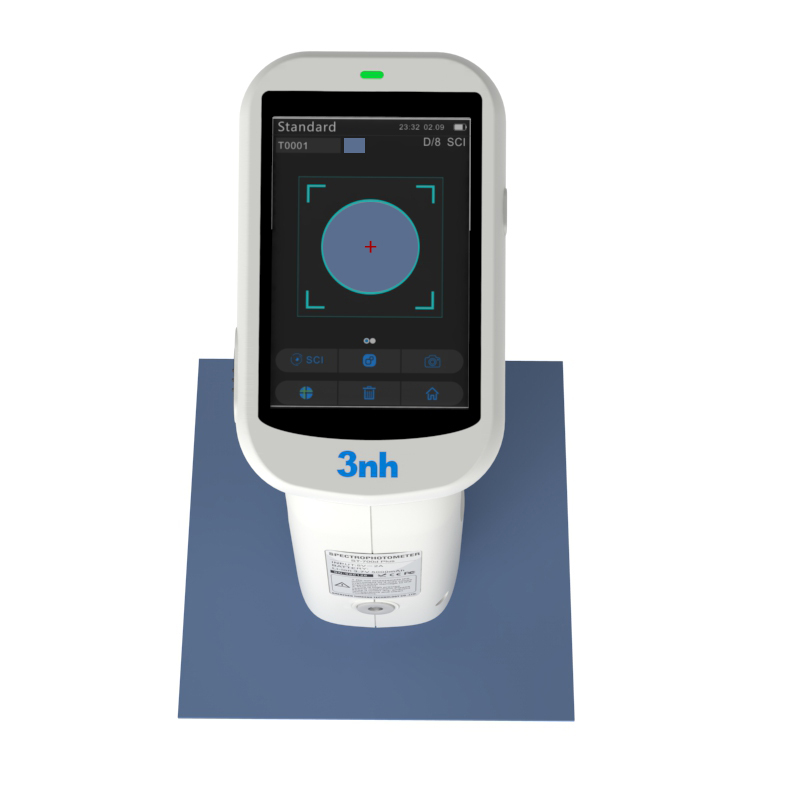

7、Camera positioning can clearly observe the area to be measured
The ST2020 array spectrophotometer has a built-in camera, which can accurately judge whether the object is the target center, and improve the measuring efficiency and accuracy.
8、Excellent interstation and repeatability
The repeatability ΔE * ab ≤0.028, the Inter-instrument Error ΔE * AB ≤0.28 data is stable and reliable, which ensures the consistency of the data measured by multiple devices, and can be used for color matching and accurate color transfer.

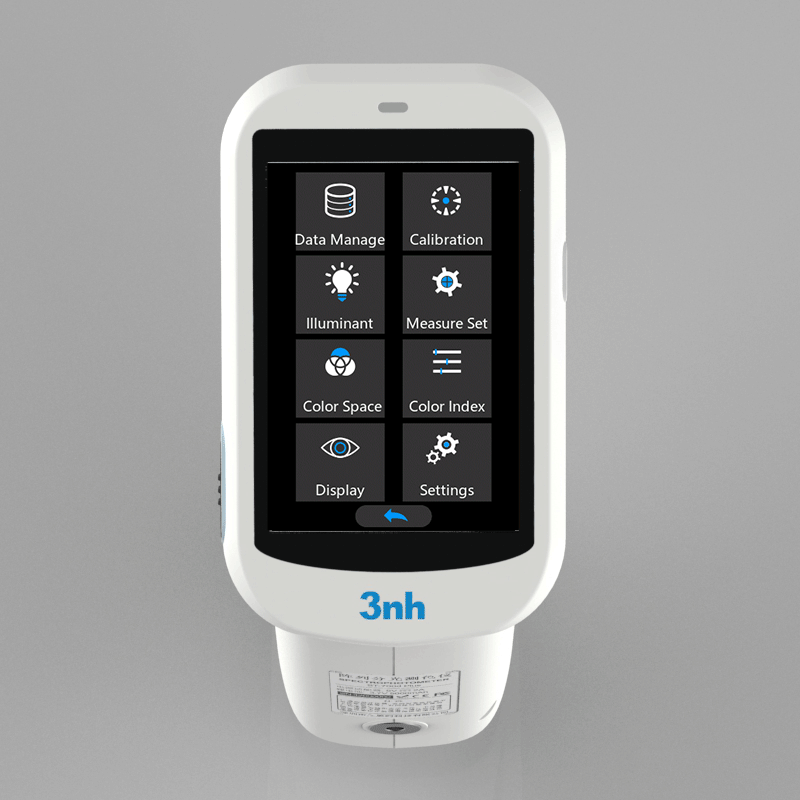

9、Multi-color measurement space and observation light source
Provide CIE LAB, XYZ, Yxy, LCH, Cie Luv, s-RGB, HunterLab, βxy, DIN Lab99 Munsell (C/2) color space, and a variety of observation light sources
A, B, C, D50, D55, D65, D75, F 1, f 2, F 3, F 4, F 5, F 6, F 7, F 8, F 9, F10, F11, F12, CWF, U30, U35, DLF, NBF, TL83, TL84, ID50, ID65, LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-B6, LED-BH1, LED-RGB1, LED-V1, LED-V2, LED-V3, customizable light source, it can meet the special measuring requirements under different measuring conditions.

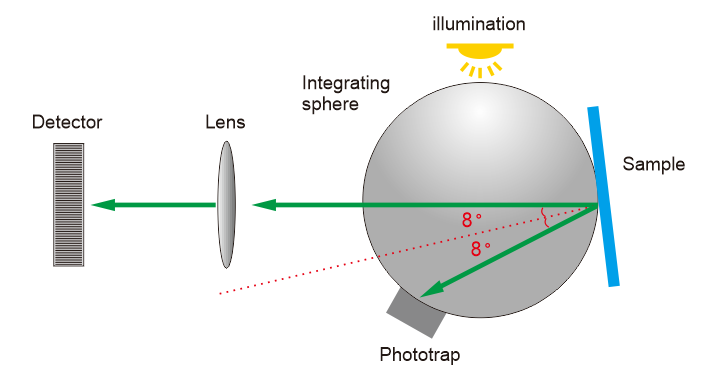

10、Adopt D/8sci/SCE synthesis technology
The measurement structure of D/8(SCI/SCE) is adopted to reflect the color itself more objectively and reduce the influence of the surface texture of the object on the test results, which conforms to the standard CIE No. 15, GB/T 3978, GB 2893, GB/t 18833, ISO7724-1, ASTM E1164, DIN 5033 TEIL7

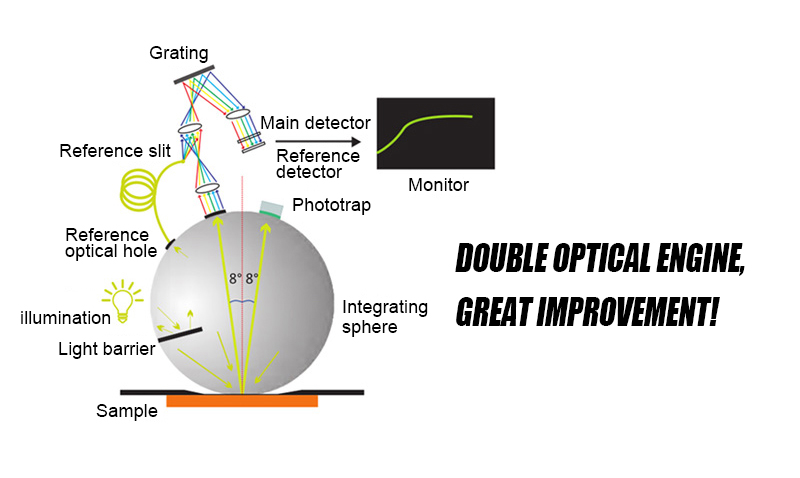

11、Double light path system is more stable in color measurement
Double optical path system, when the environment changes, to ensure that the measurement data more stable and accurate.

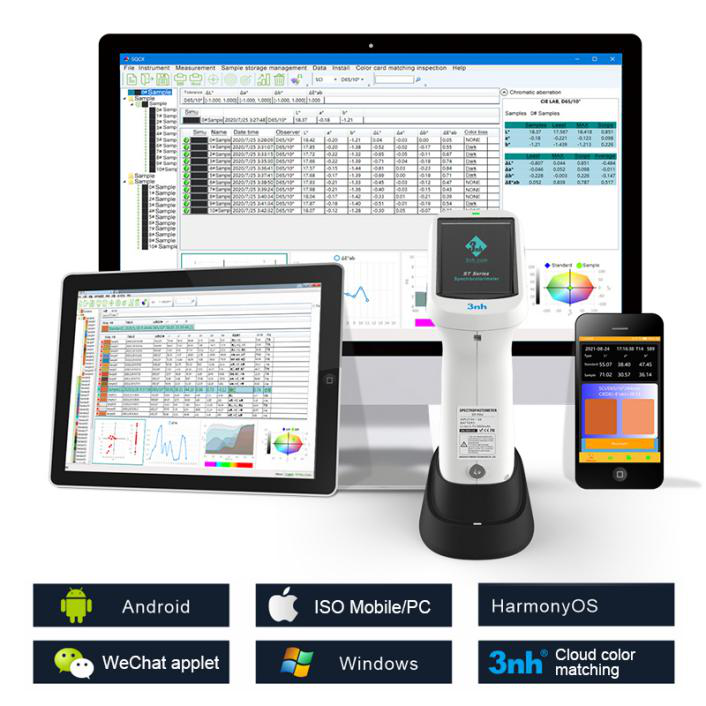

12、Support Android, IOS, Windows, wechat small programs, HUAWEI Harmony OS
The array spectrometer ST2020 is equipped with SQCX software, which is suitable for quality monitoring and color data management in various industries. The user's color management data, compare color differences, generate test reports, provide a variety of color space measurement data, customized customer color management.
ST2020 technical parameters of the array spectrometer
| Product name | ST2020 array spectrophotometer |
|
Optical Geometry |
D/8(diffused illumination, 8-degree viewing angle) |
|
Specular Component |
SCI Including the specular reflection of light |
|
Meet The Criteria |
CIE NO.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 |
|
Repeatability* |
ΔE*ab≤0.028 |
|
Inter-instrument Error** |
ΔE*ab≤0.28 |
|
Displayed Accuracy |
0.01 |
|
Measuring/Illuminating Aperture*** |
Dual Apertures：Φ8MM/φ10mm platform + Φ8MM/φ10mm tip
+Φ4MM/φ5mm platform+Φ4MM/φ5mm tip+1*3mm |
|
Measurement Indicators |
Spectral reflectivity, CIE-Lab, CIE-LCh, HunteLab, CIE-Luv, XYZ, Yxy, RGB, chromatic aberration (ΔE * ab, ΔE * CMC, ΔE * 94, ΔE * 00) , whiteness (ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube Berger Stensby) , yellows (ASTM D1925, ASTM E313-00, ASTM E313-73) , blackness (My, DM) , staining fastness, colour changing fastness, tint (ASTM E313-00) , color density CMYK (A, T, E, M) , isochromism index Milm, Munsell, hiding power, force fraction (dye strength, coloring power) |
|
Illuminant |
A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-B6,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-V3,Customisable light sources |
|
Displayed Data |
Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset |
|
Light Source |
Combined full spectrum LED light source, UV light source |
|
Locating Method |
Camera Locating, Stability film, visual |
|
Calibration |
Intelligent automatic calibration (Contact Type) |
|
Accuracy Assurance |
Grade I metrological qualification |
|
Observer Angle |
2°，10° |
|
Integrating Sphere Size |
40mm |
|
Spectrophotometric Mode |
Flat Grating |
|
Sensors |
Large-area silicon photodiode array (double-row 20 group) |
|
Wavelength Interval |
10nm |
|
Wavelength Range |
400-700mm（The user can view 31 wavelengths of reflectivity） |
|
Measured Reflectance Range |
0-200% |
|
Reflectivity resolution |
0.01% |
|
Measurement Mode |
Single Measurement, Average Measurement(2-99times) |
|
Measuring Time |
About 1s |
|
Size |
L * W * H=114 X 70 X 208mm |
|
Weight |
About 435g（Calibration block not included） |
|
Battery |
Li-ion battery, 8500 measurements within 8 hours |
|
Illuminant Life Span |
10 years, more than 1.5 million times measurements |
|
Display |
3.5-inch TFT color LCD, Capacitive Touch Screen |
|
Data Port |
USB, Bluetooth 5.0 |
|
Data Shorage |
Standard 500 Pcs, Sample 20000 Pcs(A single piece of data can include both SCI/SCE) Mass storage on PC/APP side |
|
Software Support |
Windows, Android, IOS, HUAWEI Harmony OS, We Chat app, Color Cloud APP |
|
Language |
Simplified Chinese, English, Traditional Chinese |
|
Operating Environment |
0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
|
Storage Environment |
-20~50℃, 0~85%RH (no condensing) |
|
Standard Accessory |
Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 4mm tip aperture |
|
Optional Accessory |
USB Micro Printer, Powder Test Box |
Notes：
* 30 standard deviations of the whiteboard were measured at a 5-second interval after whiteboard calibration;
** BCRA Series II 12-panel measurement average;
*** The illumination aperture is the actual aperture size of the instrument;
If there are any changes to the above parameters, without prior notice. |
