TS-23C Spectrophotometer

It is widely used in industries such as plastics and electronics, paints and inks, textiles and clothing printing and dyeing, printing, and ceramics for precise color measurement and quality control....

Portable Spectrophotometers

Brands:

Type: TS-23C

Description Additional information

Description

3nh TS-23C spectrophotometer is a standard spectrophotometer that using a 45/0 optical geometry and features planar grating spectral splitting technology and a silicon photodiode array (dual array of 40 groups) sensor, ensuring stable performance. Capable of full-band spectral analysis from 400 to 700 nm。It can accurately reproduce the true colors of plastics, textiles, and various paint coatings, avoiding metamerism and making the measurement results more reliable. Instrument inter-machine variation is strictly controlled within ΔE*ab≤0.2 ,to ensure color consistency between the production line and the global supply chain. It is widely used in industries such as plastics and electronics, paints and inks, textiles and clothing printing and dyeing, printing, and ceramics for precise color measurement and quality control.

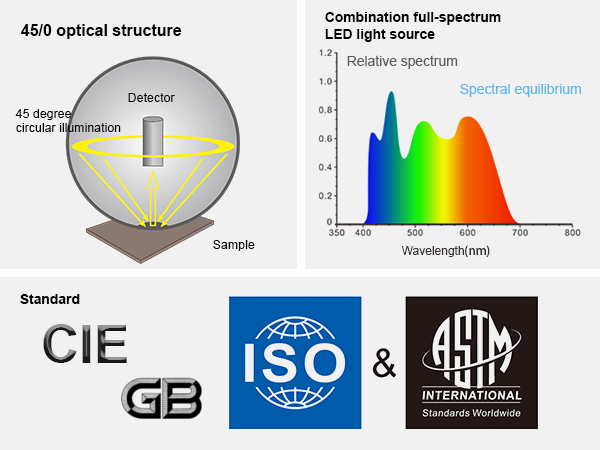

一、Professional optical systems

Optical geometry: It adopts a 45/0 optical structure (45° ring-shaped illumination and 0° reception), Eliminating orientation dependence significantly reduces interference from the texture of matte and textured materials, making the measurement results closer to the actual perception of the human eye.

Combined full-spectrum LED light source： The full-band balanced LED light source ensures sufficient spectral distribution in the visible light range, avoiding the spectral deficiencies of white LEDs in specific bands, thus guaranteeing the instrument's measurement speed and the accuracy of the measurement results.

Industry Standards: Compliant with multiple authoritative standards including CIE, ISO, ASTM, and national standards, ensuring accurate measurement specifications.

二、Reliable measurement performance

Repeatability accuracy: using dual-array 40-group silicon photodiode sensor，It achieves fine spectral dispersion and high-sensitivity photosensitive acquisition across the entire 400-700nm wavelength range, providing core technical support for the instrument's ultra-high repeatability accuracy of ΔE*ab≤0.022, restoring subtle color differences in samples, and meeting the color control needs of high-precision industries.

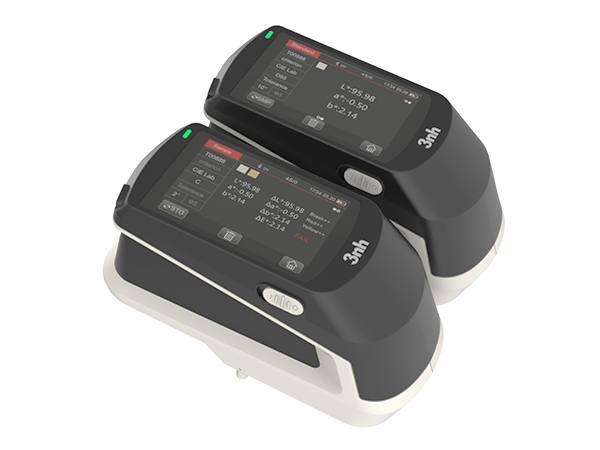

Inter-station consistency：The difference between production lines is controlled within an ultra-small range of ΔE*ab≤0.2, ensuring that color standards remain consistent across multiple production lines, workshops, and regions, thus meeting the comprehensive quality control needs of large enterprises and supply chain factories.

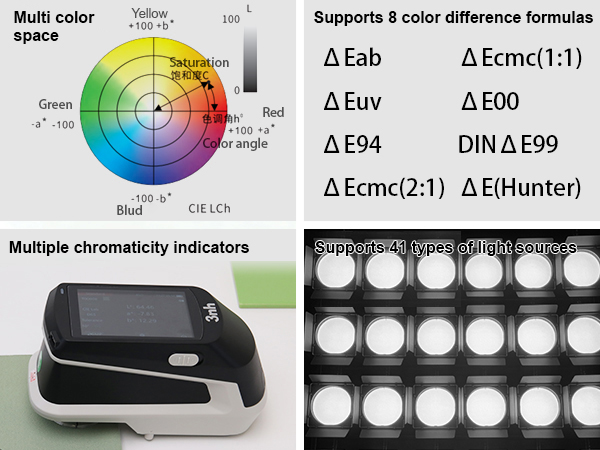

三、Comprehensive Color Analysis

Rich color space：CIE LAB、XYZ、Yxy、LCh、CIE LUV、s-RGB、HunterLab、βxy、DIN Lab99、Munsell (C/2) Multiple color spaces，Meets the requirements of different industry standards.

Supports 8 color difference formulas：ΔEab、ΔEuv、ΔE94、ΔEcmc(2:1)、ΔEcmc(1:1)、ΔE00、DINΔE99、ΔE (Hunter), Adaptable to color difference assessment in different scenarios.

Comprehensive colorimetric index: In addition to commonly used color index measurements, it also provides whiteness index, yellowness index, metamerism index, blackness, Tint (ASTM E313-00), Munsell (C/2), staining fastness, color change fastness, force content, color density (CMYK), and opacity (some are achieved through PC software /APP software).

Supports observation of 41 light sources：It covers 41 evaluation light sources and simulates color performance under different lighting environments.

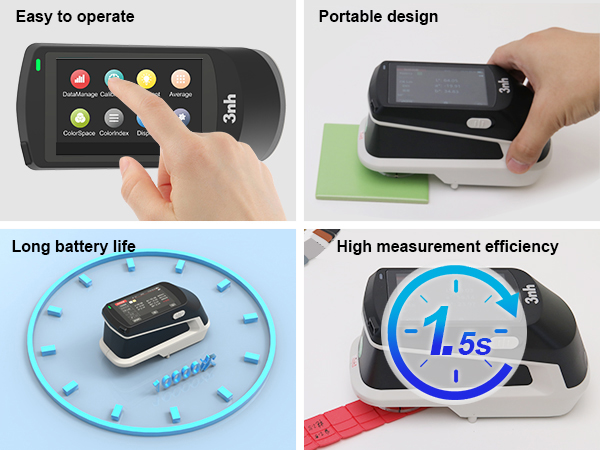

四、Easy to operate and use

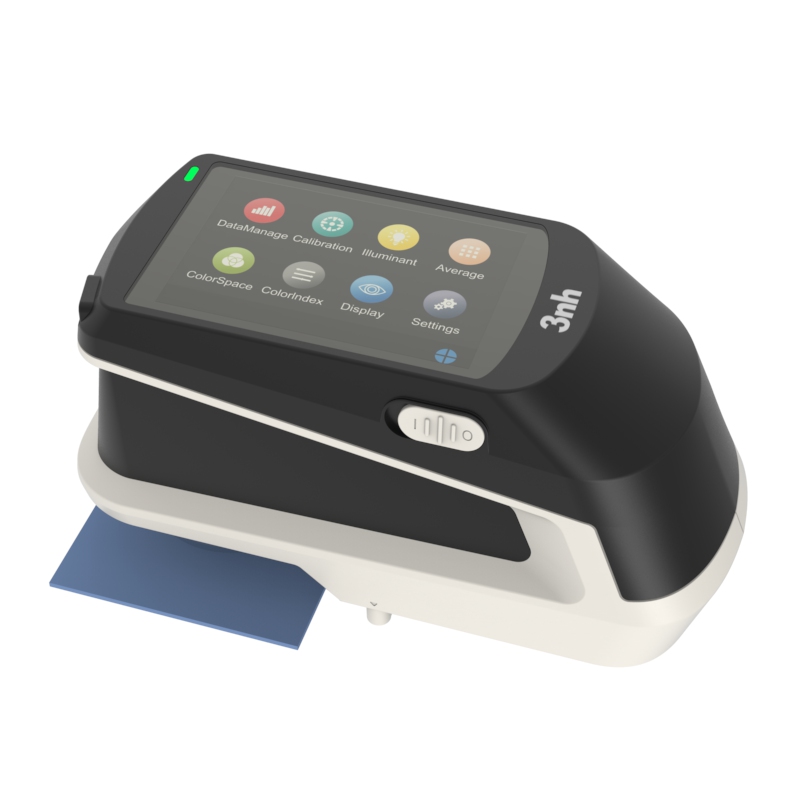

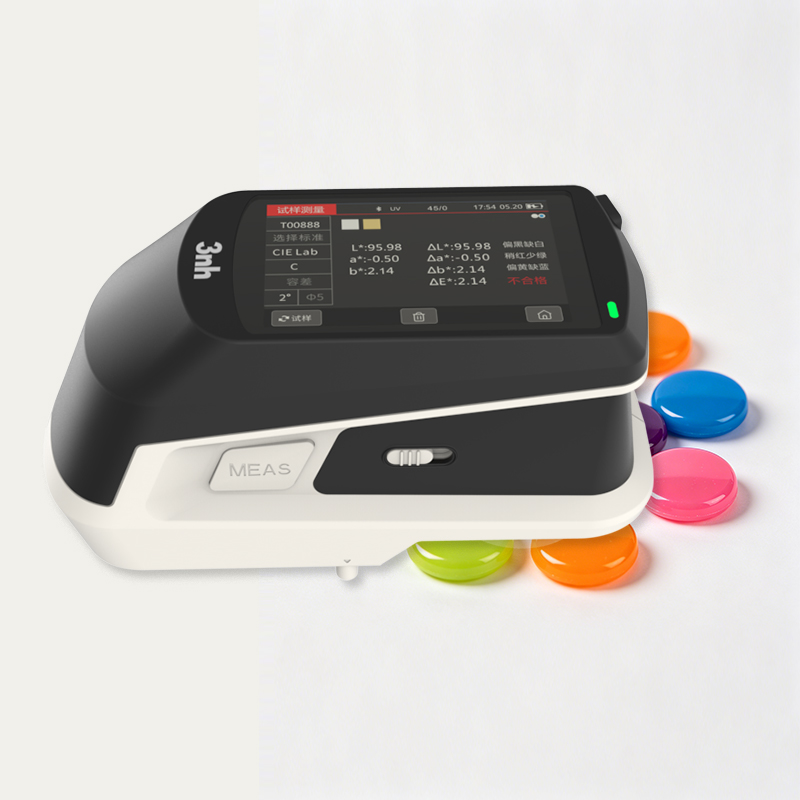

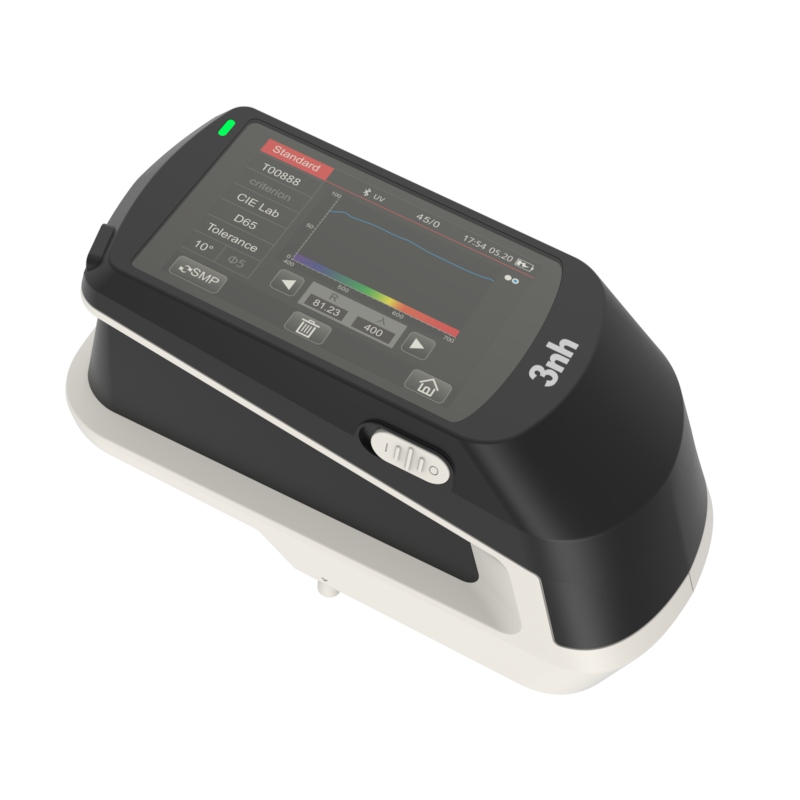

User-friendly interface: Equipped with a 3.5-inch TFT true-color capacitive touchscreen, it can display spectrum/data, sample colorimetric values, color difference values/graphs, pass/fail results, color simulation, Color Offset, and other results to meet diverse industry needs.

Portable design：It features an ergonomic and lightweight design, making it comfortable to hold and easy to carry to workshops, outdoor testing sites, and other measurement scenarios.

Long battery life： With a built-in high-performance lithium battery, it can perform 10,000 tests in 8 hours, meeting the needs of long-term continuous operation.

High measurement efficiency：A single measurement takes approximately 1.5 seconds, balancing accuracy with measurement speed.

五、Wide range of applicable scenarios

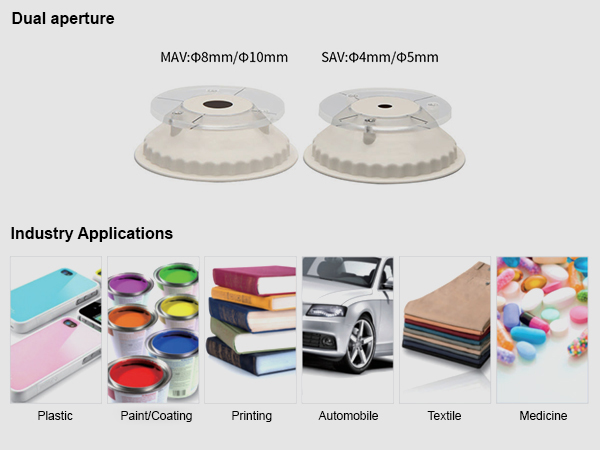

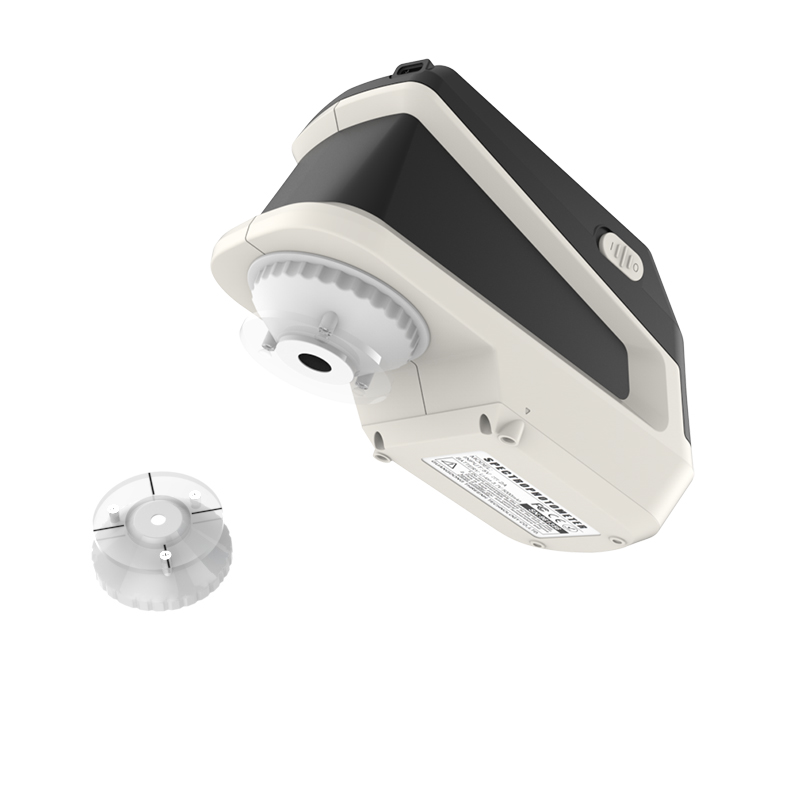

Dual-caliber configuration: Equipped with dual-aperture (10mm platform + 5mm platform), it can flexibly adapt to large and small size samples.

Multi-industry adaptation：Used for precise color measurement and quality control in industries such as plastics and electronics, paints and inks, textiles and apparel printing and dyeing, printing, and ceramics.

Technical Specification

Spectrocolorimeter
Model	TS-23C
Illumination/Observation system	45/0(45 ring-shaped illumination, vertical viewing); Comply with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Features	The standard version of the spectrophotometer is used for precise color measurement and quality control in industries such as plastics and electronics, paints and inks, textiles and clothing printing and dyeing, printing, and ceramics.
Light Source	Combined LED Light
Spectral separation device	Flat Grating
Detector	Silicon photodiode array (dual array, 40 groups)
Wavelength Range	400~700nm
Wavelength Pitch	10nm
Half Bandwidth	10nm
Reflectance resolution	0.01%
Reflectance Range	0~200%
Measuring Aperture	Dual aperture:10mm platform+5mm platform
Color Space	CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99,Munsell(C/2)
Color Difference Formula	ΔEab,ΔEuv,ΔE94,ΔEcmc(2:1),ΔEcmc(1:1),ΔE00, DINΔE99,ΔE(Hunter)
Other Colorimetric Index	WI(ASTM E313，CIE/ISO,AATCC,Hunter)， YI(ASTM D1925，ASTM 313), Metamerism Index MI，Blackness (My,dM)，Tint(ASTM E313-00)，Munsell(C/2)， Staining Fastness, Color Fastness, Color Density CMYK,Opacity（Some functions are realized through PC software）
Observer Angle	2°/10°
Illuminant	D65,A,C,D50,D55,D75,F1,F2,F3,F4，F5，F6,F7,F8,F9，F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30，B,U35,NBF, ID50,ID65,LED-B1,LED-B2 ,LED-B3,LED-B4,LED-B5,LED-BH1 ,LED-RGB1,LED-V1,LED-V2 ,LED-C2,LED-C3,LED-C5,Light source can be customized (a total of 41 kinds of light sources, some of which are realized through the host computer/APP)
Display Data	Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset
Measurement Time	About 1.5s
Display resolution	0.01
Repeatability	Spectral reflectance: MAV,Standard deviation within 0.1% (400 nm to 700 nm: within 0.2%) Chromaticity value: MAV, within ΔE*ab 0.022 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error	MAV,Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles)
Measurement mode	Single Measurement, Average Measurement(2-99)
Size(LWH)	169X73X87mm
Weight	About 446g
Battery power	Li-ion battery. 5000 measurements within 8 hours
Illuminant Life Span	5 years, more than 3 million times measurements
Display	3.5-inch TFT color LCD, Capacitive Touch Screen
Interface	USB, Bluetooth 5.0
Data memory	Standard 1000 Pcs, Sample 20000 Pcs
Language	Chinese Simplified, Chinese Traditional, English, Russian

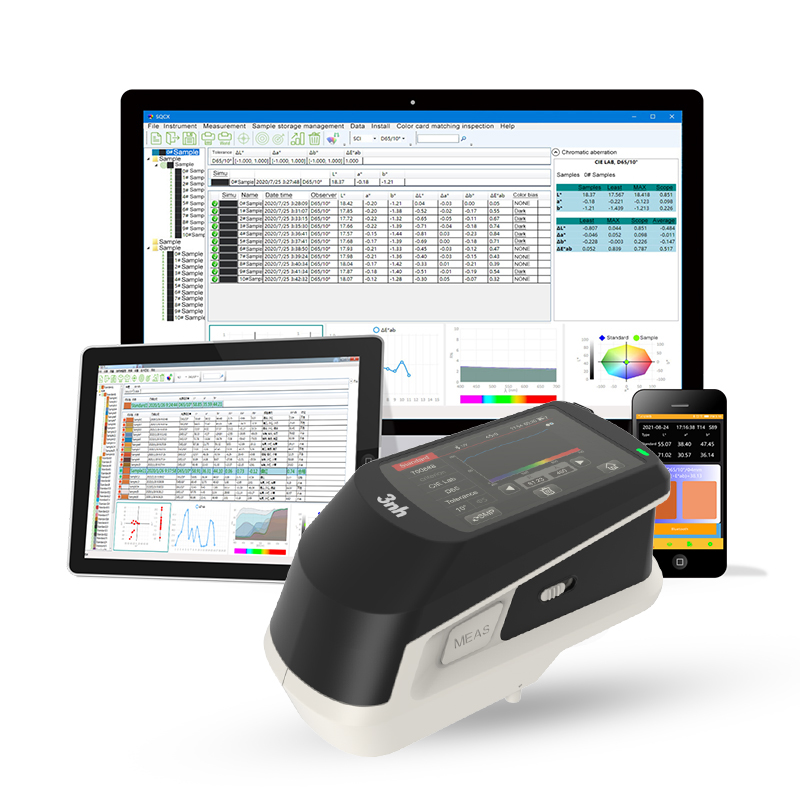

Software	Andriod,iOS,Windows,WeChat Mini Program
Working Environment	Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m
Storage Environment	Temperature: -20~50℃; Humidity: 0~85% (No Condensation)
Standard Accessory	Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website)White and Black Calibration Board, Protective Cover, Measuring Apertures
Optional Accessory	Micro Printer, Powder Test Box, Universal test components, Locating Plate
Note	Technical specifications are for reference only; the actual product sold shall prevail.
