TS-25C Spectrophotometer

it is equipped with 5 switchable measurement apertures to flexibly adapt to samples of different sizes;...

Portable Spectrophotometers

Brands:

Type: TS-25C

Description Additional information

Description

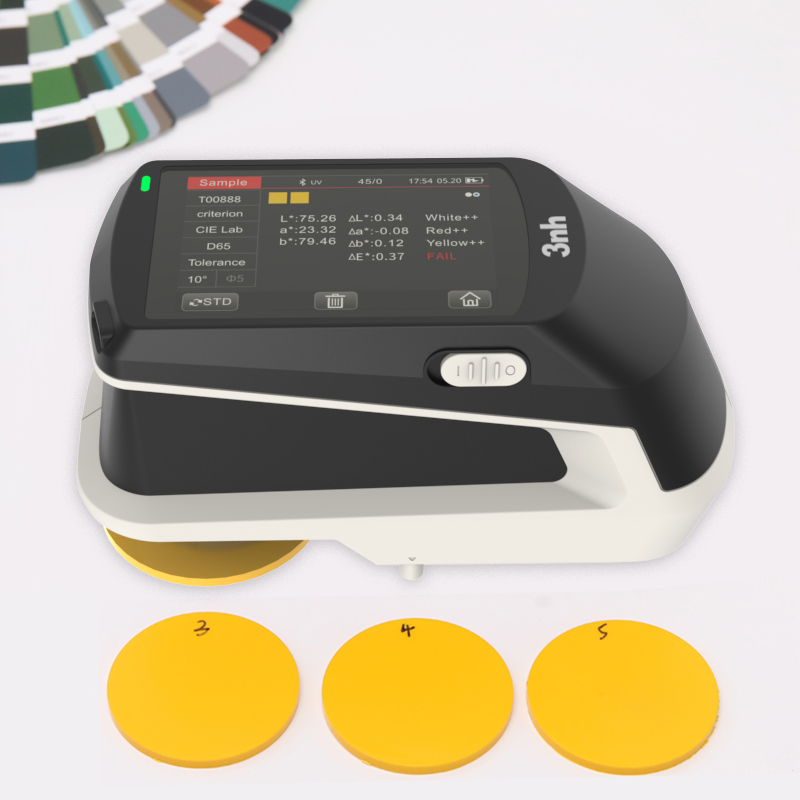

3nh TS-25C spectrophotometer is a high-precision color management instrument for laboratories. With "accurate measurement + multi-scenario adaptation" as its core market positioning, it provides color analysis solutions for multiple industries. The TS-25C features a 45/0 optical structure and grating spectral technology to ensure measurement standardization and accuracy; it is equipped with 5 switchable measurement apertures to flexibly adapt to samples of different sizes; it also supports specialized detection of fluorescent samples, as well as measurement of luminance factor and chromaticity coordinates of traffic signs, markings, and reflective films. Built-in GB 2893 and GB/T 18833 standard colors, with manually customizable polygonal rectangle tolerances, it is used for color measurement and quality control needs in industries such as plastics and electronics, paints and inks, textiles and clothing printing and dyeing, printing, and ceramics, meeting the requirements of laboratory-level accurate color analysis and cross-scenario transmission.

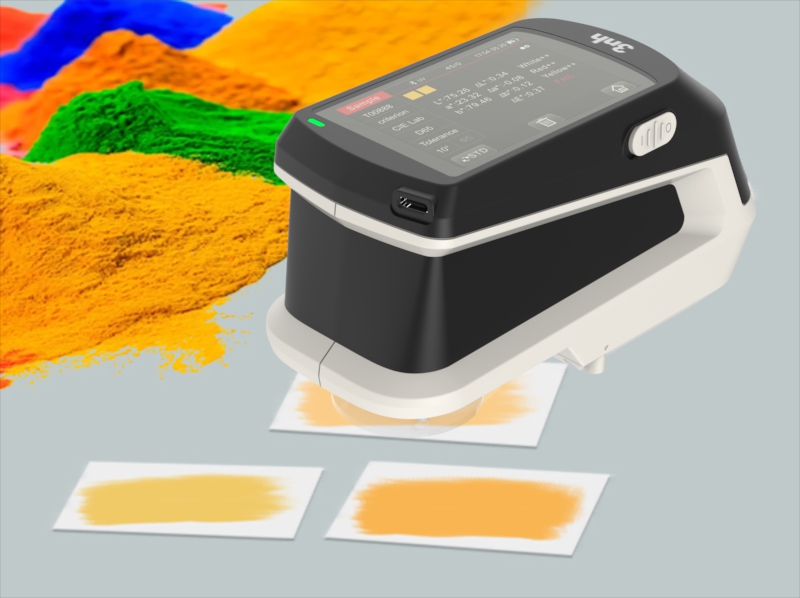

一、Fluorescent sample measurement, accurately capturing special colors

Using a 400-700nm full-spectrum LED light source + UV light source, it ensures a sufficient spectral distribution in the visible light range, avoids spectral gaps in specific wavelengths, does not saturate under strong light, is more sensitive under weak light, and can easily measure fluorescent samples.

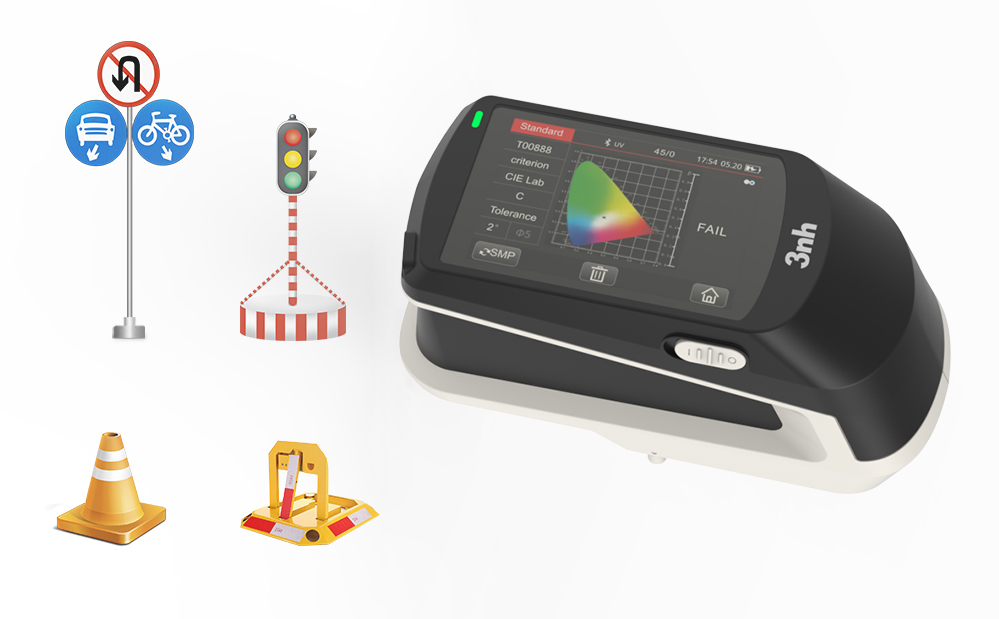

二、Traffic sign solutions that comply with national standards

Built-in GB 2893 and GB/T 18833 standard color libraries, it can directly measure luminance factor and chromaticity coordinates, and supports polygon/rectangle tolerance settings, making it suitable for compliance testing of safety color marks for traffic signs, reflective films, etc

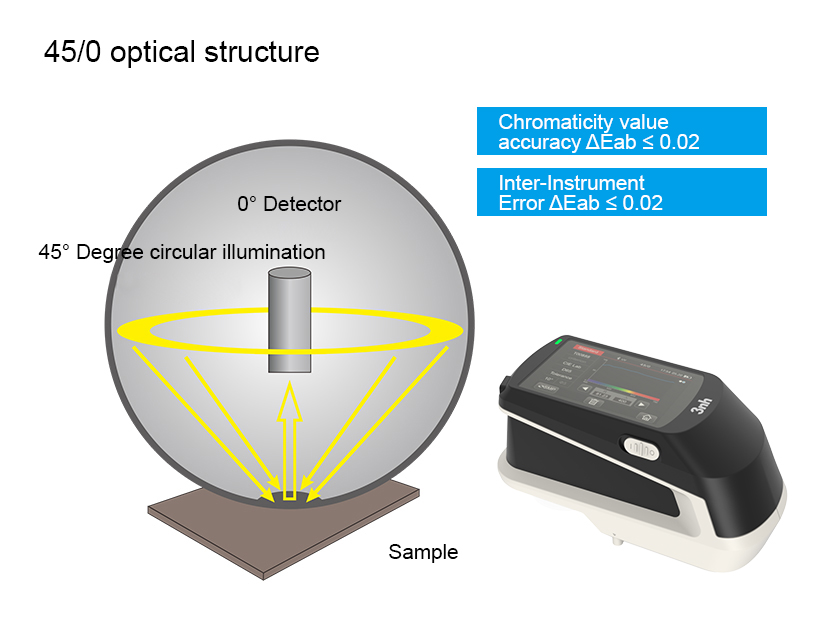

三、High-precision optical design ensures measurement accuracy.

Professional optics geometrical : 45/0 (45 ring-shaped illumination, vertical viewing) geometrical optics, conforms with CIE No.15、ISO7724-1、ASTM E1164 and so on international standards, High data authority

High precision and stability: Chromaticity value accuracy ΔEab ≤0.02, inter-device error ΔEab ≤0.18, ensuring data reliability and consistency across multiple devices.

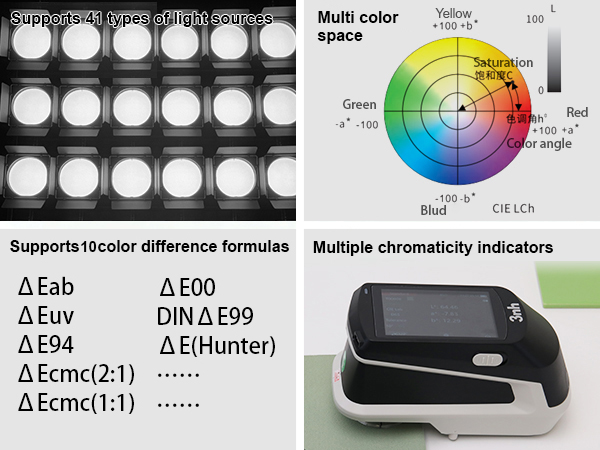

四、Multi-light source and multi-scene adaptation

Supports 41 types of observation light sources: It supports 41 types of observation light sources (D65, A, CWF, LED series, etc.) to cover measurement needs under different light source conditions.

Configure 9 color spaces: It supports 9 color space data, including CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, HunterLab, DIN Lab99, and Munsell (C/2), eliminating the need for multiple measurements and improving quality control efficiency.。

Supports 10 color difference formulas: It has 10 built-in color difference formulas, including ΔEab, ΔEuv, ΔE94, ΔEcmc(2:1), ΔEcmc(1:1), and ΔE00, to meet the color difference evaluation standards of different industries and customers.

Rich colorimetric indicators: It supports multiple colorimetric indicators such as whiteness (WI), yellowness (YI), metamerism index (MI), blackness, color density (CMYK), opacity, staining fastness, and color change fastness, enabling full-dimensional color analysis.

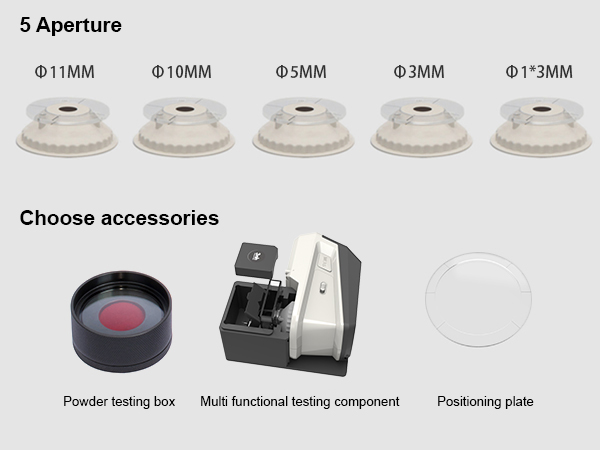

五、Suitable for all industries, one machine for multiple uses

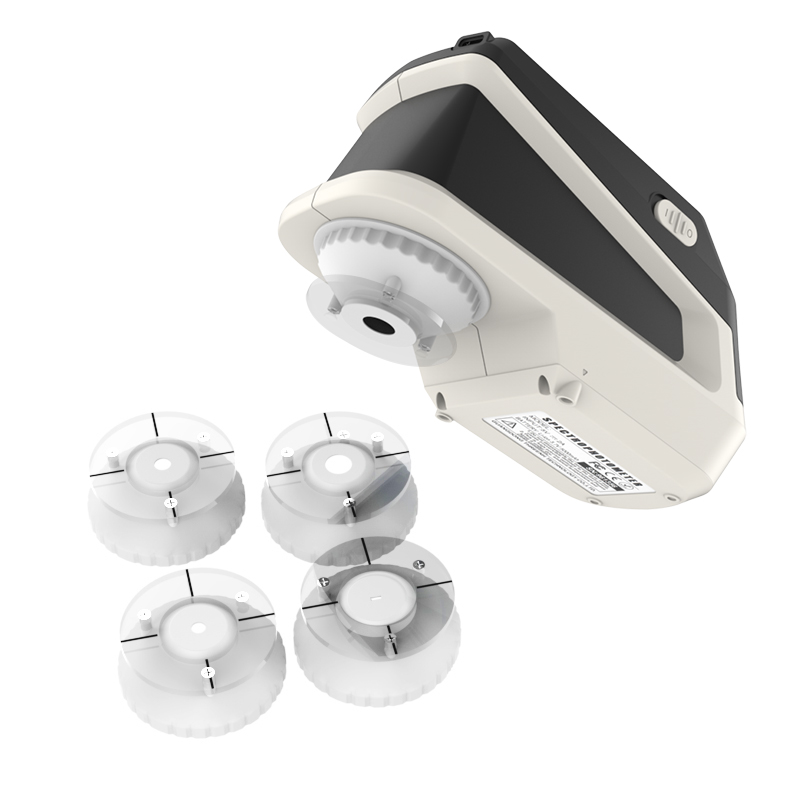

Multi-morphological sample compatibility: Equipped with five measuring apertures (11mm, 10mm, 5mm, 3mm, and 1*3mm platforms), and combined with optional powder test kits, multi-functional test components, and positioning plates, it can measure samples in different forms such as solids, powders, liquids, and pastes.

Application coverage across all industries: It is widely applicable to industries such as plastics and electronics, paints and inks, textiles and clothing printing and dyeing, printing, ceramics, traffic signs, and fluorescent materials, providing high-precision solutions for color quality management, production control, and scientific research and testing.

Technical Specification

Spectrocolorimeter
Model	TS-25C
Illumination/Observation system	45/0(45 ring-shaped illumination, vertical viewing); Comply with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Features	Enhanced spectrophotometer for precise color analysis and transmission in the laboratory; Used for precise color measurement and quality control in industries such as plastics and electronics, paints and inks, textiles and clothing printing and dyeing, printing, and ceramics; it can also be used for fluorescent sample measurement. It can be used to measure the luminance factor and chromaticity coordinates of traffic signs, markings, and reflective films. It includes GB 2893 and GB/T 18833 standard colors and allows manual customization of polygonal rectangle tolerances.
Light Source	Combined LED Light, UV Light
Spectral separation device	Flat Grating
Detector	Silicon photodiode array (dual array, 40 groups)
Wavelength Range	400~700nm
Wavelength Pitch	10nm
Half Bandwidth	10nm
Reflectance resolution	0.01%
Reflectance Range	0~200%
Measuring Aperture	5 aperture:11mm platform+10mm platform+5mm platform +3mm platform +1*3mm platform
Color Space	CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99,Munsell(C/2)
Color Difference Formula	ΔEab,ΔEuv,ΔE94,ΔEcmc(2:1),ΔEcmc(1:1),ΔE00, DINΔE99,ΔE(Hunter)
Other Colorimetric Index	WI(ASTM E313，CIE/ISO,AATCC,Hunter)， YI(ASTM D1925，ASTM 313), Metamerism Index MI，Blackness (My,dM)，Tint(ASTM E313-00)，Munsell(C/2)， Staining Fastness, Color Fastness, Color Density CMYK,Opacity（Some functions are realized through PC software）
Observer Angle	2°/10°
Illuminant	D65,A,C,D50,D55,D75,F1,F2,F3,F4，F5，F6,F7,F8,F9，F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30，B,U35,NBF, ID50,ID65,LED-B1,LED-B2 ,LED-B3,LED-B4,LED-B5,LED-BH1 ,LED-RGB1,LED-V1,LED-V2 ,LED-C2,LED-C3,LED-C5,Light source can be customized (a total of 41 kinds of light sources, some of which are realized through the host computer/APP)
Display Data	Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset
Measurement Time	About 1.5s
Display resolution	0.01
Repeatability	Spectral reflectance: MAV, Standard deviation within 0.08% (400 nm to 700 nm: within 0.18%) Chromaticity value: MAV, within ΔE*ab 0.02 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error	MAV,Within ΔE*ab 0.18 (Average for 12 BCRA Series II color tiles)
Measurement mode	Single Measurement, Average Measurement(2-99)
Size(LWH)	169X73X87mm
Weight	About 446g
Battery power	Li-ion battery. 5000 measurements within 8 hours
Illuminant Life Span	5 years, more than 3 million times measurements

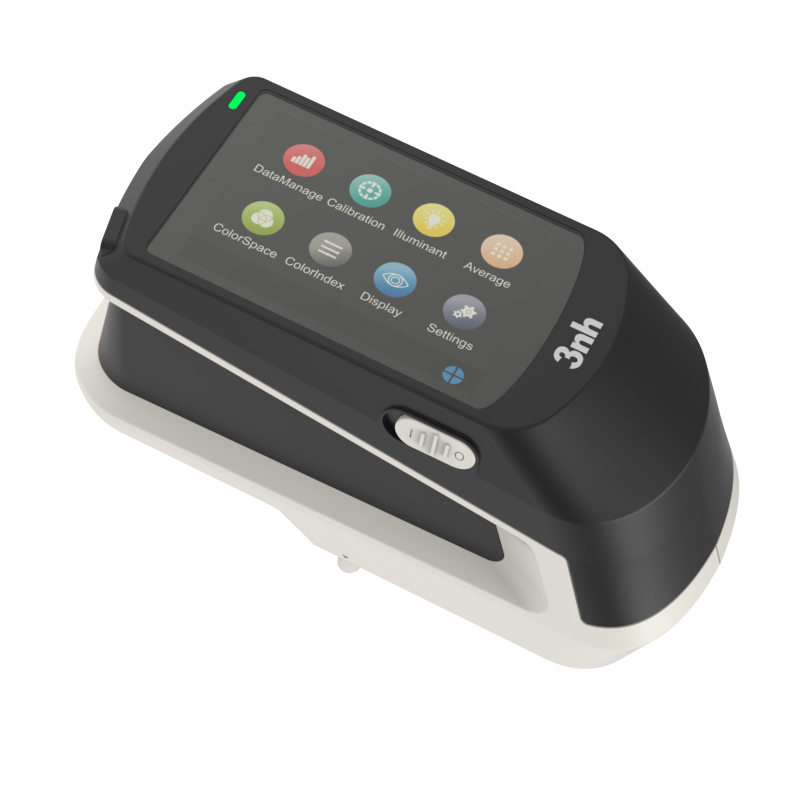

Display	3.5-inch TFT color LCD, Capacitive Touch Screen
Interface	USB, Bluetooth 5.0
Data memory	Standard 1000 Pcs, Sample 30000 Pcs
Language	Chinese Simplified, Chinese Traditional, English, Russian

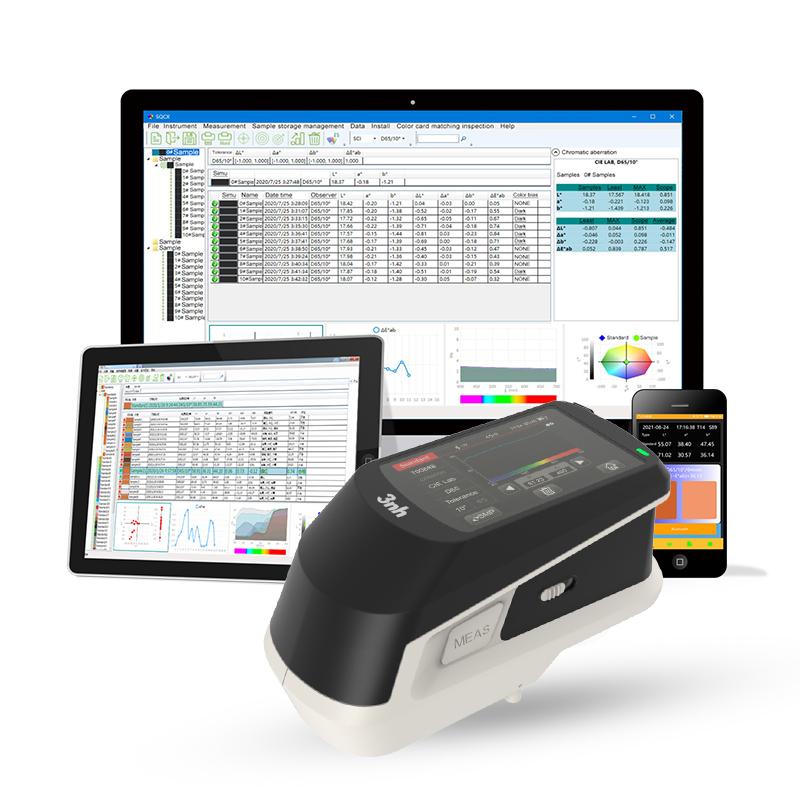

Software	Andriod,iOS,Windows,WeChat Mini Program
Working Environment	Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m
Storage Environment	Temperature: -20~50℃; Humidity: 0~85% (No Condensation)

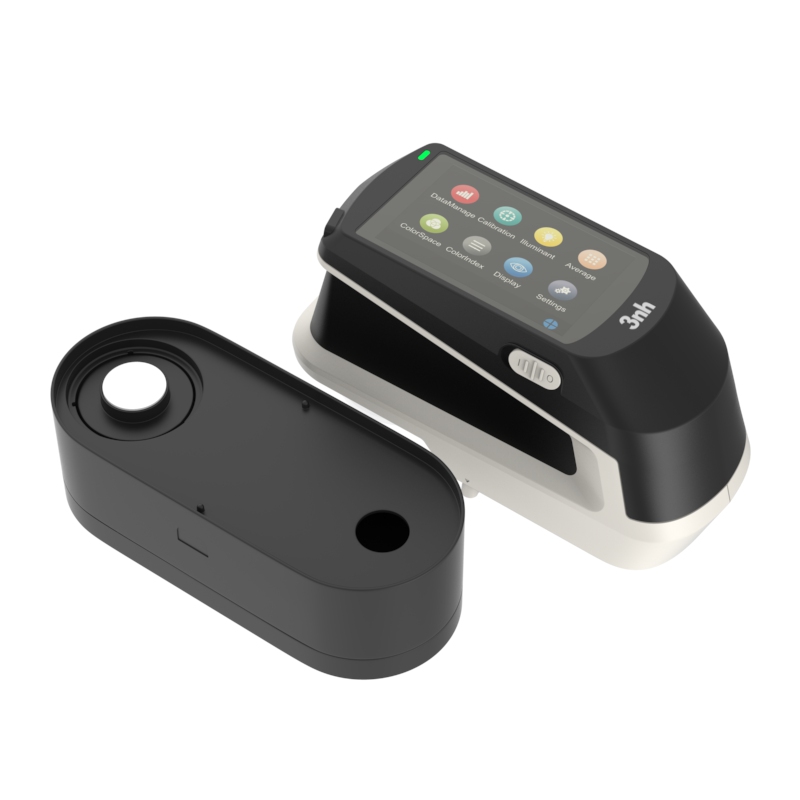

Standard Accessory	Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website)White and Black Calibration Board, Protective Cover, Measuring Apertures
Optional Accessory	Micro Printer, Powder Test Box, Universal test components, Locating Plate
Note	Technical specifications are for reference only; the actual product sold shall prevail.
