Description

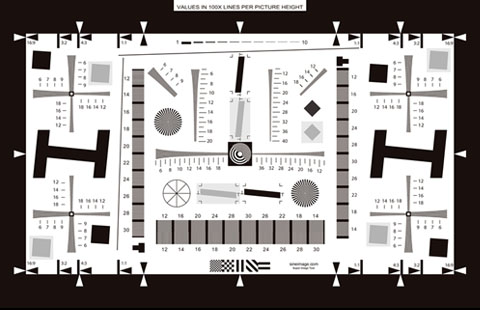

Based on ISO 12233:2000, the QA-77 has all of the original features as the QA-72 plus several new ones, such as; Star Sector target; 5° slant bar; 5° dark gray square for SFR analysis as well as a greater resolution range, from 100 - 4000 Line Width / Pixel Height and hyperbolic wedges.
Common standard specifications
|
Product NO |
Multiple |
Size |
|
NE-10-50A |
0,5X |
10x17.8 cm |
|
NE-10-100A |
1X |
20x35.6 cm |
|
NE-10-200A |
2X |
40x71.1 cm |
|
NE-10-400A |
4X |
80x142.2 cm |
|
NE-10-800A |
8X |
160x284.4 cm |
Please Note
This chart does not conform to the updated ISO 12233:2014 standard. We recommend thePhotographic ISO 12233:2014 E-SFR chart for testing that does not specifically require the old chart.
