Description

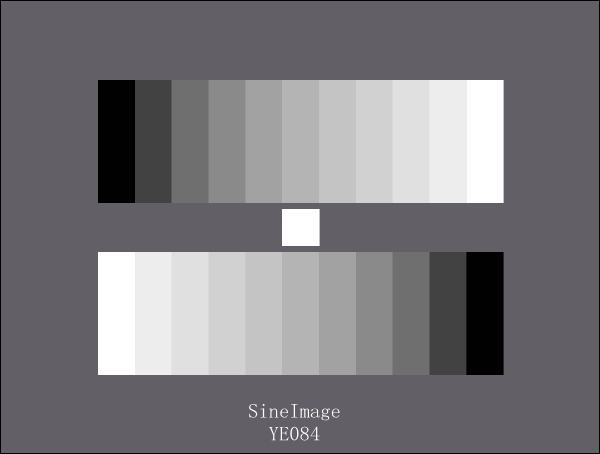

The YE084 is designed for the evaluation of the halftone reproduction of an electronic camera. Two 11-graduated counter current gray scales are arranged on a gray background (D≈0.65), the gray scales being graduated linear. Related to the densities of the gray scales: gamma = 1. The contrast range of the gray scales is 40:1.
Properties
Type |
selectable |
Format |
selectable |
Aspect ratio |
4:3 |
The values of the 11-graduated gray scales are the follows:
Step |
Density |
Reflectance in % |
1 |
0.05 |
89 |
2 |
0.10 |
80 |
3 |
0.14 |
72 |
4 |
0.20 |
63 |
5 |
0.26 |
54 |
6 |
0.34 |
45 |
7 |
0.43 |
37 |
8 |
0.55 |
28 |
9 |
0.71 |
19 |
10 |
0.96 |
11 |
11 |
1.65 |
2 |
The density of the white filed between the gray scales is D = 0.05 (reflectance = 89%).
