Description

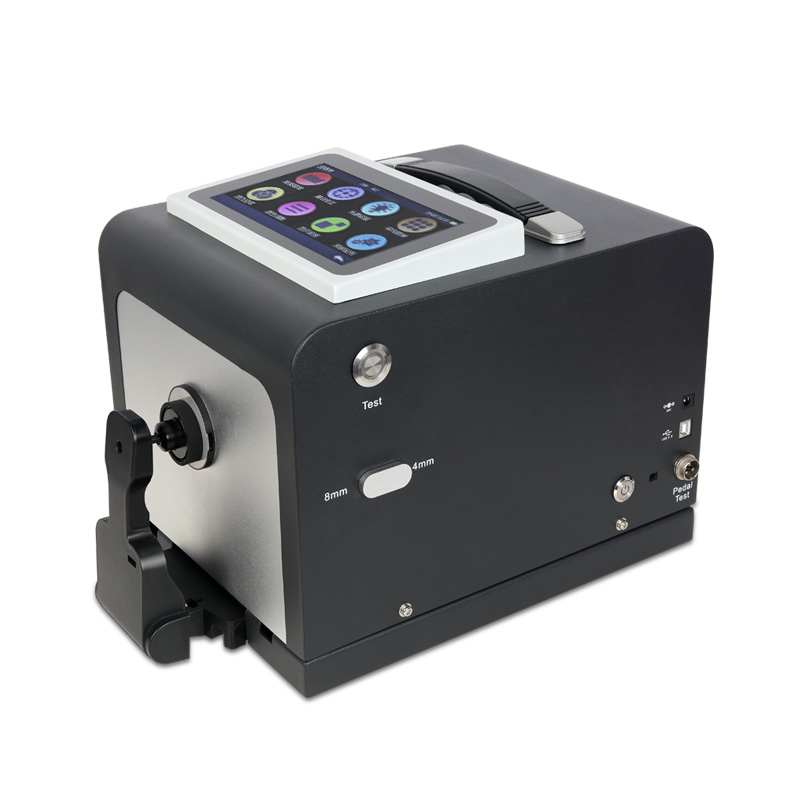

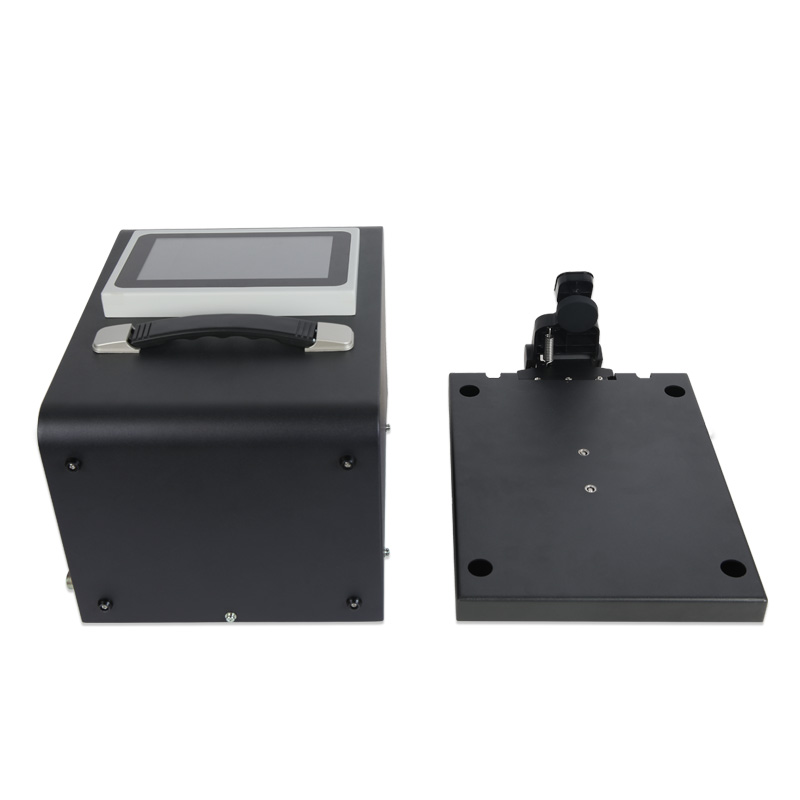

TS8450 is a 45/0 optical portable desktop spectrophotometer, with 256 pixels dual array CMOS image sensor, imported white board, and gives consideration to the speed of measurement and the convenience of operation. It features with repeatability Δ E * ab easily control within 0.02, and inner instrument errors Δ E * ab control within 0.15. This accuracy measurement makes it good to use in the lab color accurate analysis and transfer. The TS8450 portable desktop spectrophotometer is also good to measure the brightness factor and color coordinates of traffic signs, markings and reflective films.Including GB 2893 and GB/T 18833 standard colors, it can customize the rectangular tolerance of polygons manually.
Application of TS8450 portable Desktop spectrophotometer:
TS8450 portable desktop spectrophotometer color measurement instrument is equipped with a single customized 18/8/4mm measurement diameter, used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries; It can be also used for fluorescence sample measurement. In addition, TS8450 portable desktop spectrophotometer is suitable for measuring the brightness factor and chromaticity coordinate of traffic road signs, marking lines and reflective film. It contains GB 2893 and GB/T 18833 standard colors and it can customize the rectangular tolerance of polygons manually.
Technical Advantages:
1.Adopt combination full spectrum LED light source and UV light source
Full band balanced LED light source ensures sufficient spectral distribution in visible light range, avoids the spectral loss of white LED in specific band, ensures the accuracy of instrument measurement speed and measurement results, and professional UV light source ensures more reliable UV testing.
2.A variety of color space, a variety of observation light sources
TS8450 portable desktop spectrophotometer color measurement instrument provides CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,Munsell(C/2) color space, and D65,A,C,D50,F2(CWF),F7(DLF),F10(TPL5),F11(TL84),F12(TL83/U30) light sources, which can meet the special measurement requirements under different measurement conditions.
3.Calirbation Certificate
Each TS8450 spectrophotometer has been verified and tested. After leaving the factory, each instrument is verified according to the measurement standards of authoritative verification departments, and the measurement data are traceable to the National Metrotechnical Institute to ensure the authority of the instrument test data.
4.Industrial-grade HD touch screen, easy to use user interface
Using 7-inch industrial grade hd touch screen, smooth operation, the user interface is easy to use and it makes the operation to become comfortable and convenient.
5.Color management software
SQCX quality management software with TS8450 spectrophotometer is suitable for quality monitoring and color data management in various industries. Data the user's color management, compare color differences, generate test reports, provide multiple color space measurement data, and customize the customer's color management.
6.Optional Accessory
Micro printer, foot switch, rotating bracket can be freely selected according to the needs.
