Description

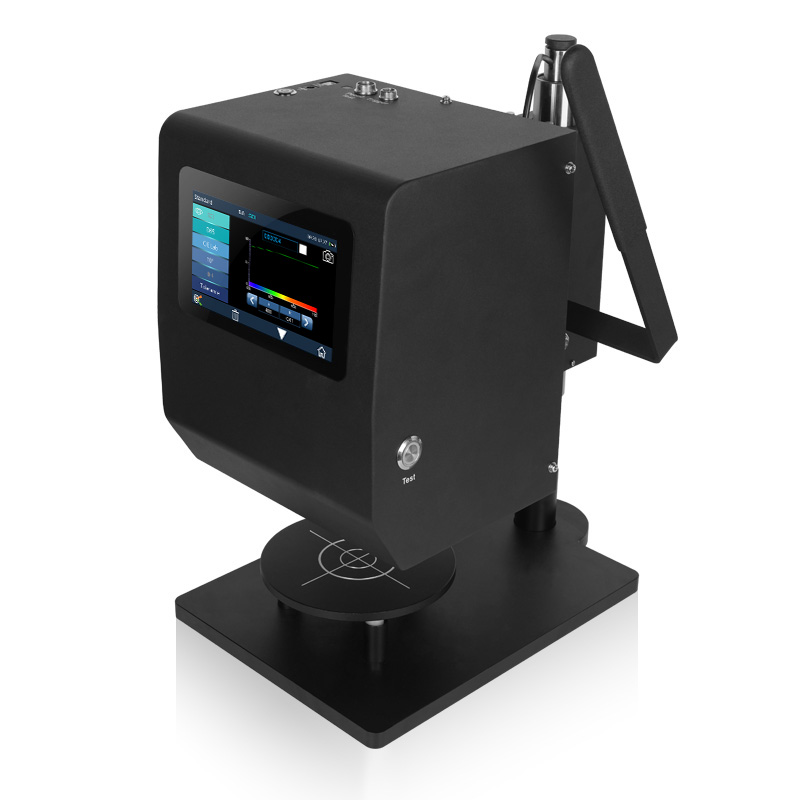

The portable benchtop spectrophotometer TS8290 is a spectrophotometer
developed by 3nh using its own core technology of spectroscopy. It uses
a built-in silicon photodiode array (40 pairs of dual-row) sensors and
an imported whiteboard. It also takes into account the measurement speed

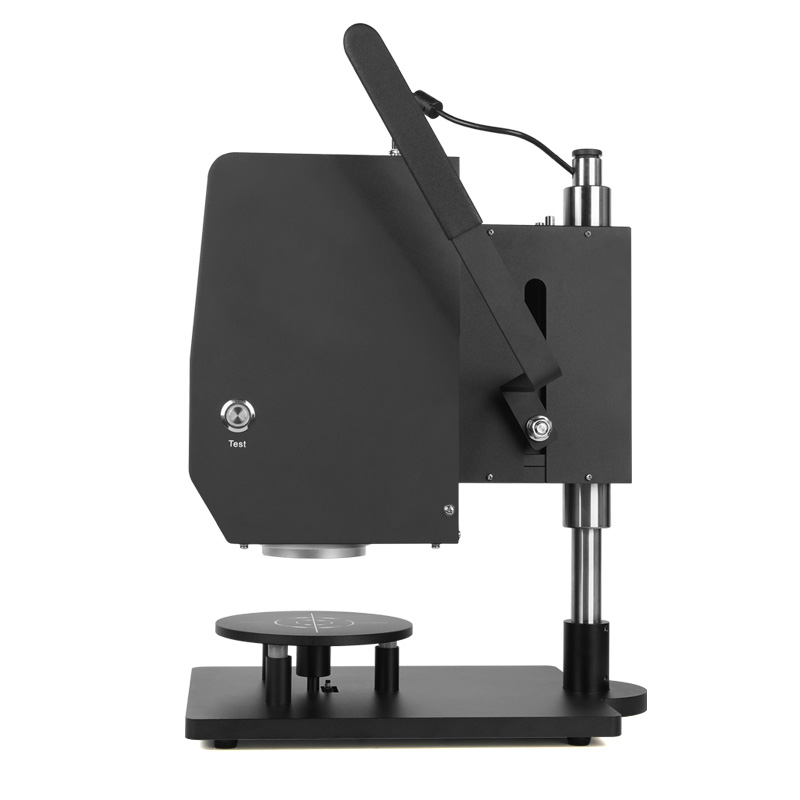

and the convenience of operation. Rotating and pressing structure makes
testing more convenient. The repeatability ΔE*ab of TS8290 portable benchtop
spectrophotometer is easily controlled within 0.05, and the inter-instrument
error ΔE*ab is controlled within 0.15. The measurement is accurate and
can be used for accurate color analysis and transmission in the laboratory.
TS8290 Portable Benchtop Spectrophotometer Application
The TS8290 portable benchtop spectrophotometer is equipped with a Φ30mm
measuring aperture, which is suitable for measuring large-area samples,
meeting the requirements of accurate color measurement and quality control
in textile and garment printing and dyeing, plastic electronics, ceramics
and other industries; it can be used for fluorescent sample measurement.
Features of TS8290 Portable Benchtop Spectrophotometer

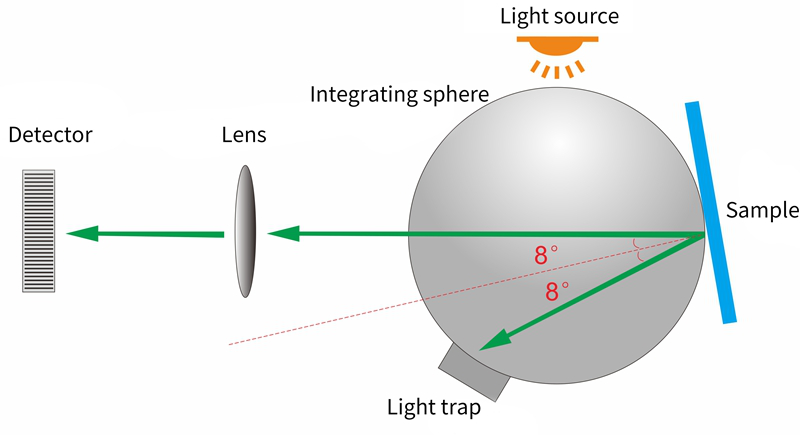

1. It adopts the internationally-used D/8 structure, compatible with SCI/SCE
measurement, and supports SCI+SCE rapid measurement at the same time
The TS8290 benchtop spectrophotometer adopts the internationally applicable
D/8 illumination observation conditions, SCI/SCE (including specular reflection/not
including specular reflection) synthesis technology, and supports SCI+SCE
simultaneous rapid measurement, the test time is about 3.2 seconds.
![1641521826171504.png 11.png](/static/upload/image/20220107/1641521826171504.png)

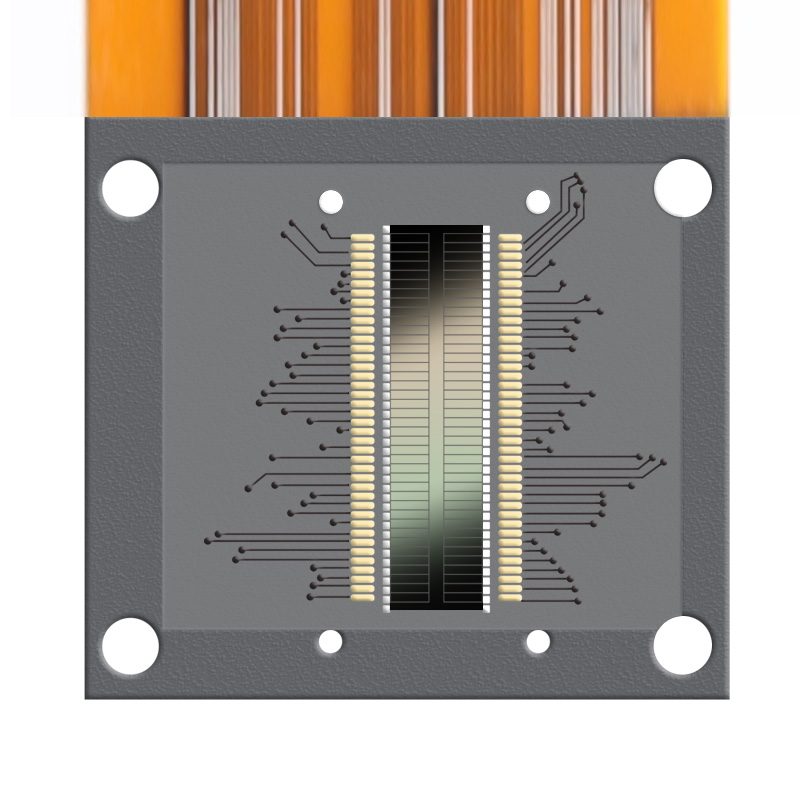

2. Silicon photodiode array (dual 40 array) sensor
Larger area dual 40 array sensor, strong light will not saturate, low
light sensitivity higher and wider spectral response range, ensuring the
measurement speed, accuracy, stability and consistency of the instrument.
![1641521831911813.jpg 12.jpg](/static/upload/image/20220107/1641521831911813.jpg)

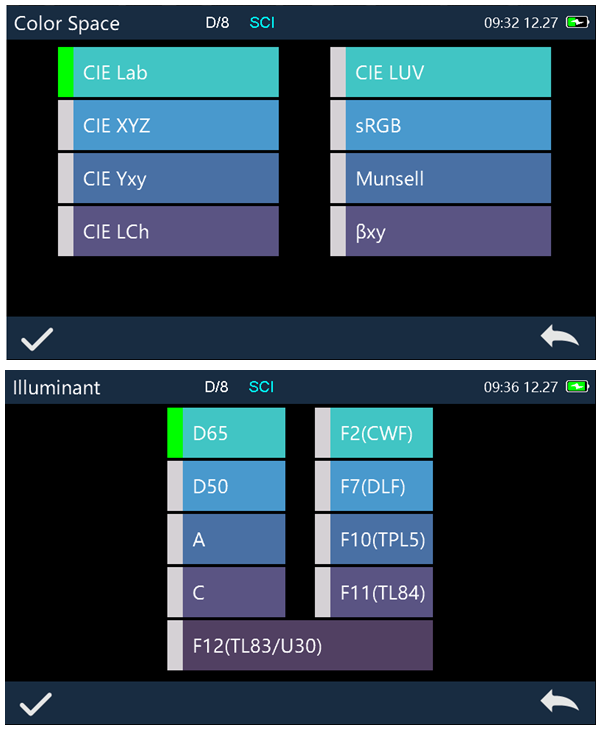

3. Multiple color measurement spaces, multiple observation light sources
TS8290 benchtop spectrophotometer provides CIE LAB, XYZ, Yxy, LCh, CIE
LUV, Musell, s-RGB, HunterLab, βxy, DIN Lab99 color space, as well as D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
multiple observation light sources, which can meet the special measurement
requirements under different measurement conditions.

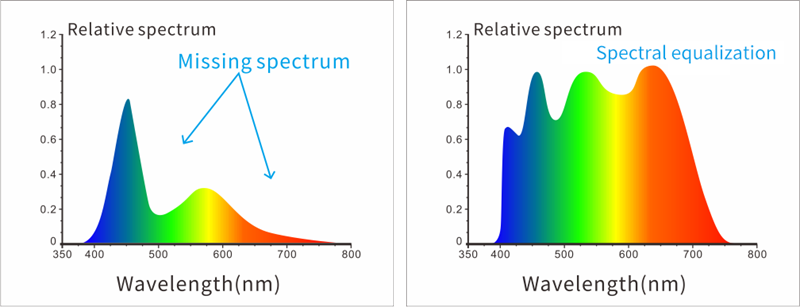

4. Adopt a combined full-spectrum LED light source and UV light source
The full-band balanced LED light source ensures sufficient spectral distribution
in the visible light range, avoids the lack of spectrum of white light
LEDs in specific wavelength bands, and ensures the measurement speed of
the instrument and the accuracy of the measurement results. Professional
UV light sources ensure UV testing more reliable.
![1641521841357806.png 14.png](/static/upload/image/20220107/1641521841357806.png)
5. Metrological verification report
Each TS8290 benchtop spectrophotometer has been verified and tested, and
the instrument is verified according to the measurement standards of the
authoritative verification department at the factory, and the measurement
data is traced to the National Institute of Metrology to ensure the authority
of the instrument test data.

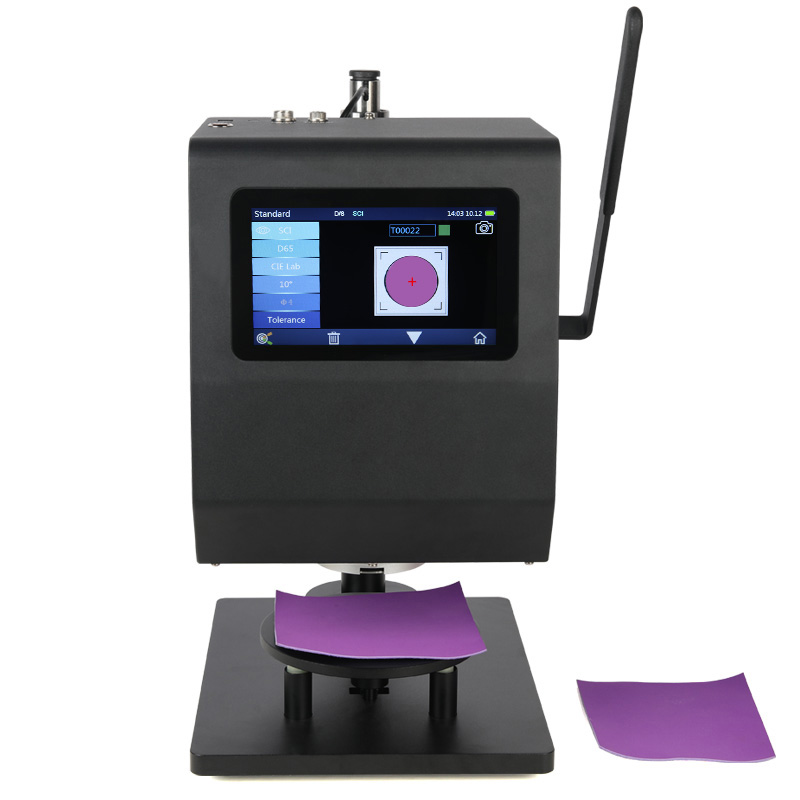

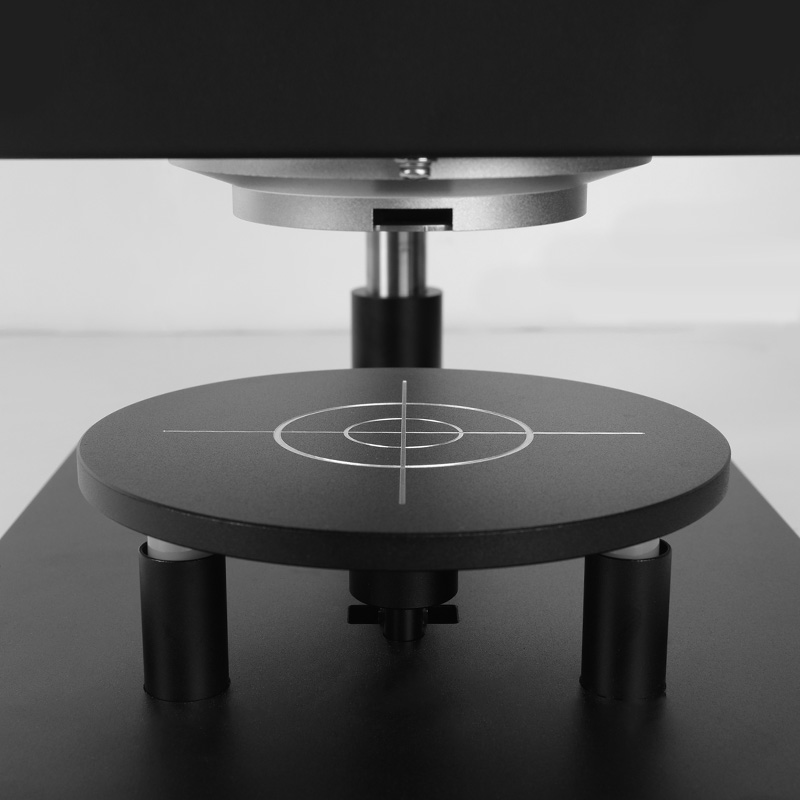

6. Camera locating, can clearly observe the measured area
The TS8290 portable benchtop spectrophotometer has a built-in camera for
framing and positioning. Through the real-time framing of the camera, it
can accurately determine whether the measured part of the object is the
center of the target, which improves the measurement efficiency and accuracy.
![1641521845569258.jpg 15.jpg](/static/upload/image/20220107/1641521845569258.jpg)

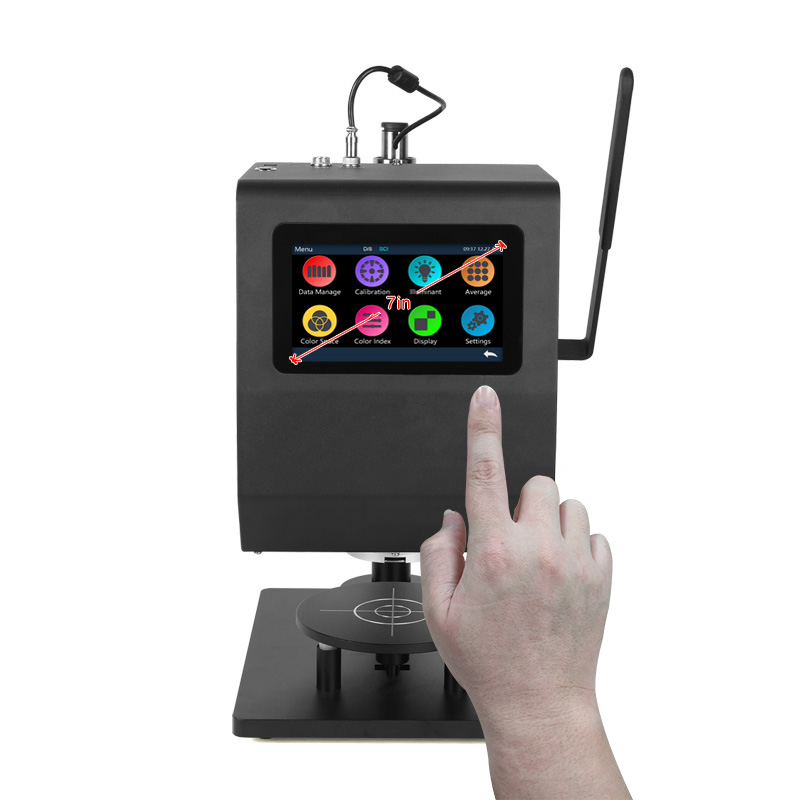

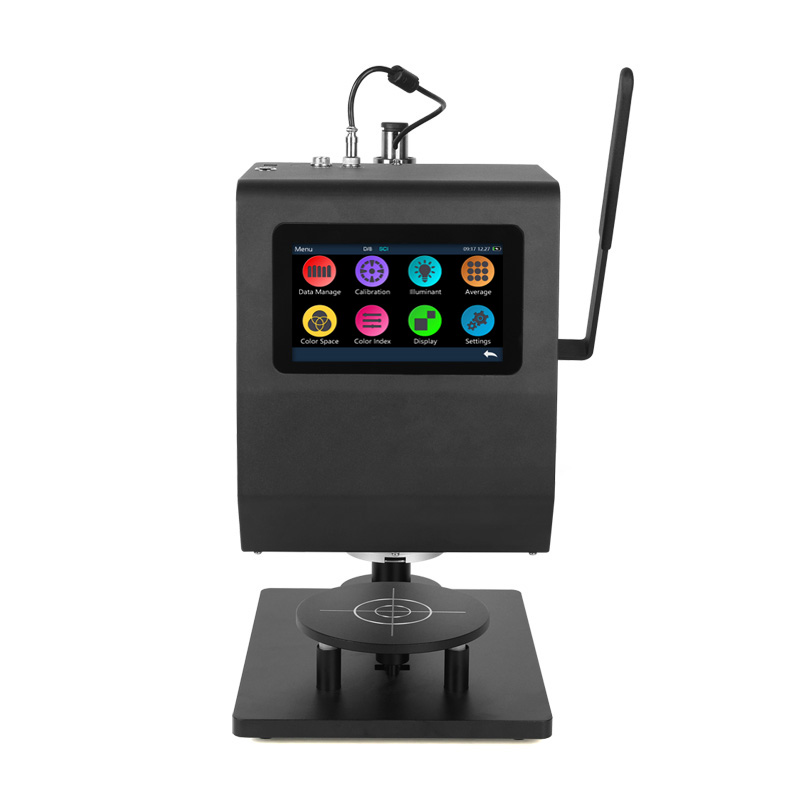

7. Industrial-grade high-definition touch screen, easy-to-use user interface
Using a 7-inch industrial-grade high-definition touch screen, the control
is smooth, and the easy-to-use user interface makes the operation comfortable,
convenient and easier to use.
![1641521850844102.jpg 16.jpg](/static/upload/image/20220107/1641521850844102.jpg)

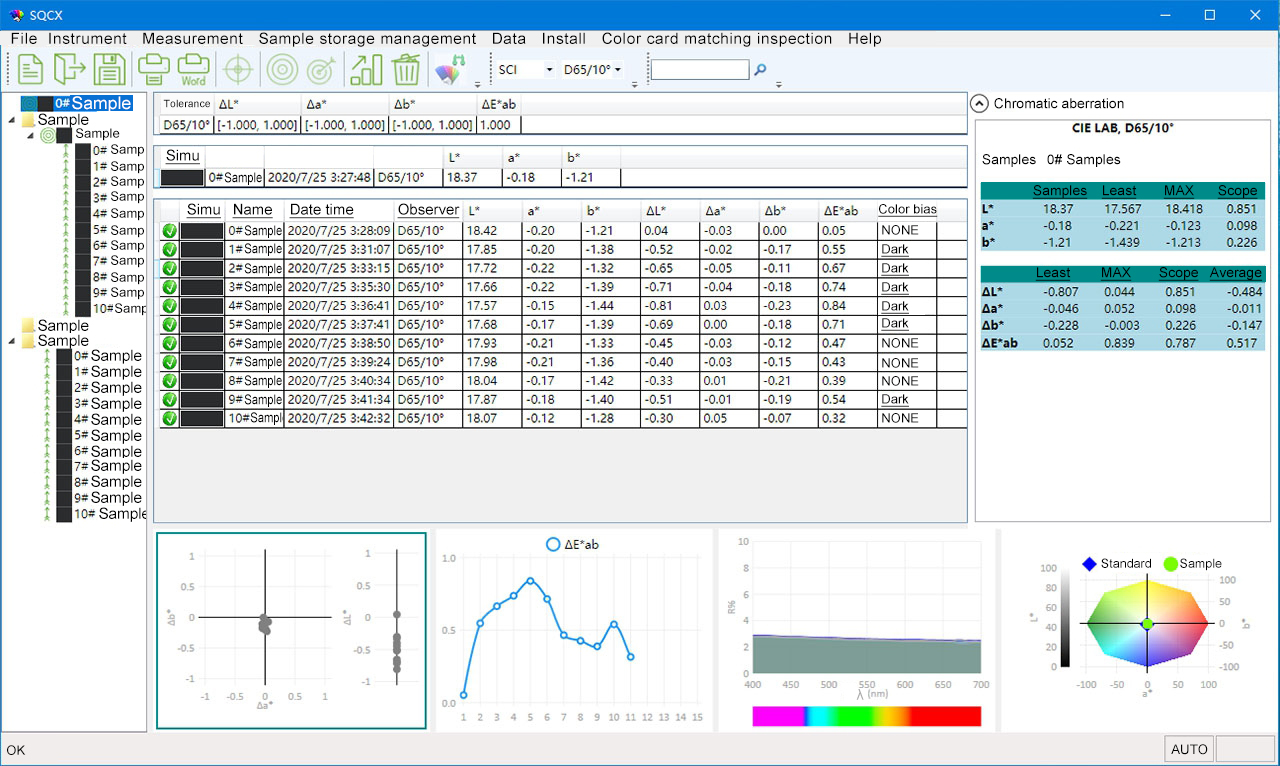

8. Color management software
The SQCX quality management software matched with the TS8290 benchtop
spectrophotometer is suitable for quality monitoring and color data management
in various industries. Data the user's color management, compare color
differences, generate test reports, provide a variety of color space measurement
data, and customize customer color management.
![1641521855403305.jpg 17.jpg](/static/upload/image/20220107/1641521855403305.jpg)
Technical Parameters Of TS8290 Portable Benchtop Spectrophotometer
Model |
TS8290 |
Optical Geometry |
D/8 (diffuse illumination, 8° direction reception);
SCI/SCE measurement; include UV/exclude UV measurement;
Comply with standard CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1,
ASTM E1164, DIN5033 Teil7 |
Features |
Φ30mm measuring aperture, suitable for measuring large area samples;
Standard configuration of rotary pressing structure, more convenient for
testing;
Accurate measurement, can be used for accurate analysis and transmission
of laboratory colors;
It is used for accurate color measurement and quality control in textile
and garment printing and dyeing, plastic electronics, ceramics and other
industries; it can be used for fluorescent sample measurement. |
Integrating Sphere Size |
Φ152mm |
Light Source |
Combined full spectrum LED light source, UV light source |
Spectrophotometric Mode |
Plane Grating |
Sensor |
Silicon photodiode array (40 groups in dual rows) |
Wavelength Range |
400~700nm |
Wavelength Interval |
10nm |
Semiband Width |
10nm |
Measured Reflectance Range |
0-200% |
Measuring Aperture |
Φ30mm/Φ25.4mm |
Specular Component |
Simultaneously test SCI/SCE |
Color Space |
CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 Munsell(C/2) |
Color Difference Formula |
ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter) |
Other Colorimetric Index |
WI (ASTM E313, CIE/ISO, AATCC, Hunter),
YI (ASTM D1925, ASTM 313),
Metamerism index Mt,
Staining Fastness, Color Fastness, Color Strength, Opacity,
8° gloss, 555 color classification |
Observer Angle |
2°/10° |
Illuminant |
D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30) |
Displayed Data |
Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph,
PASS/FAIL Result, Color Simulation, Color Offset |
Measuring Time |
About 1.5s (Measure SCI & SCE about 3.2s) |
Repeatability |
Chromaticity value:MAV/SCI, within ΔE*ab 0.05 (After the instrument is
warmed up and calibrated, measure the average value of the whiteboard 30
times at an interval of 5s) |
Inter-instrument Error |
MAV/SCI, Within ΔE*ab 0.15(Measured average value of 12 tiles of BCRA
series Ⅱ) |
Measurement method |
Single measurement, average measurement (2~99 times) |
Locating |
Camera lpcating |
Dimension |
L*W*H=425X250X470mm |
Weight |
Approx. 18kg |
Power |
AC 24V, 3A Power adapter power supply |
Illuminant Life Span |
5 years, more than 3 million times measurements |
Display |
7-inch TFT color LCD, Capacitive Touch Screen |
Data Port |
USB, Bluetooth®5.0, Trigger switch interface |
Data Storage |
Standard 1000 Pcs, Sample 30000 Pcs(SCI/SCE counts as one piece of data) |
Language |
Simplified Chinese, Traditional Chinese, English |
Operating Environment |
0~40℃, 0~85%RH (no condensation), altitude: less than 2000m |
Storage Environment |
-20~50℃, 0~85%RH (no condensation) |

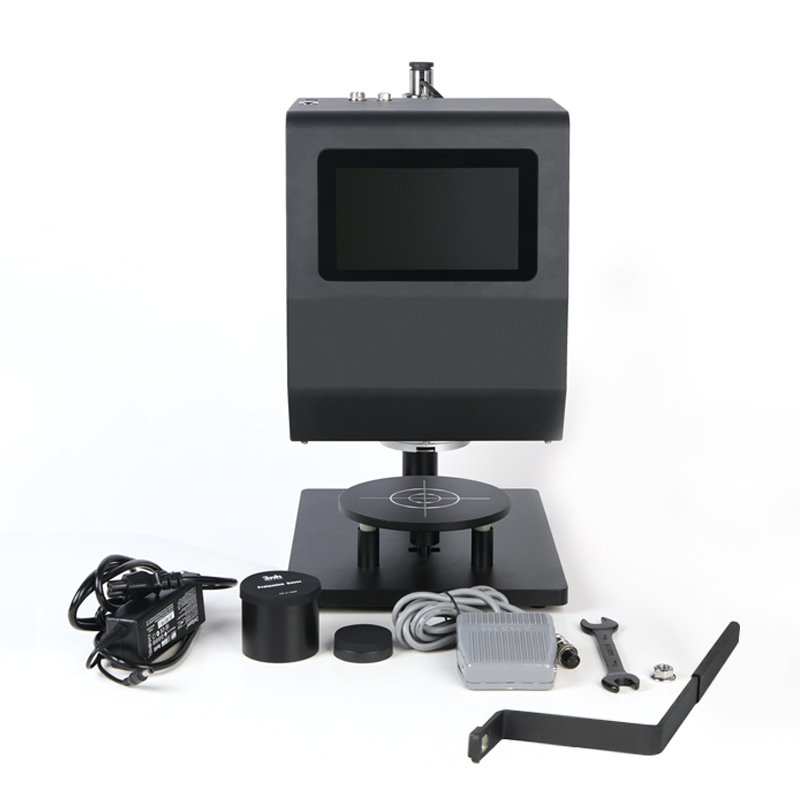

Standard Accessory |
Power adapter, data cable, manual, quality management software (download
from official website), calibration box, measuring aperture, rotating bracket |
Optional Accessory |
Mini printer, Foot switch |
Notes |
The specifications are subject to change without notice. |
