Description

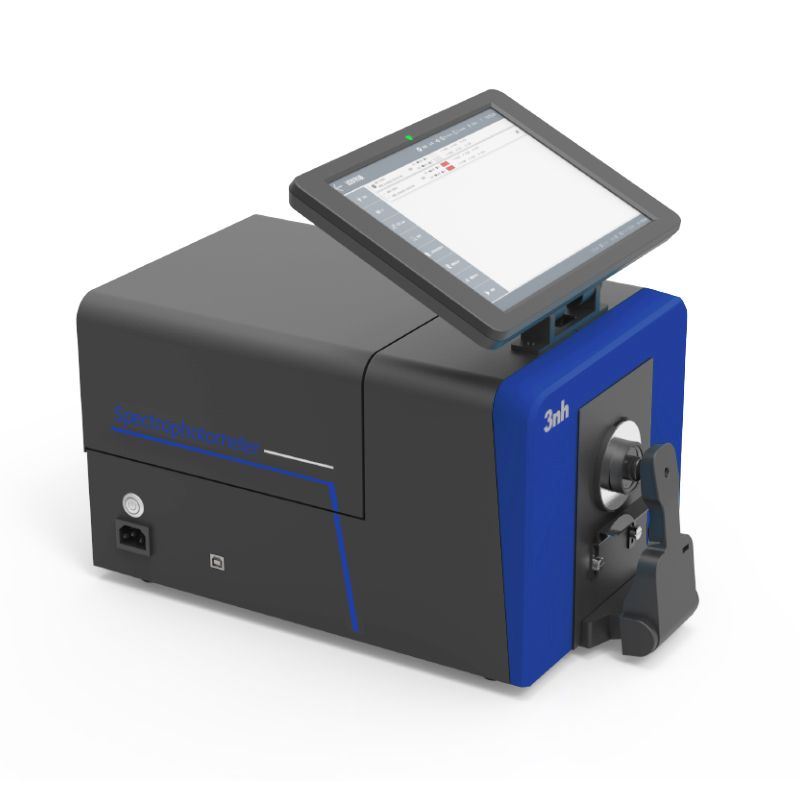

TS8500 is a benchtop grating spectrophotometer which is developed by 3nh independently with core technology. It uses a dual-array CMOS image sensor to have high sensitivity and a wider spectral response range, which makes the test more accurate. With a 10.5-inch independent rotating screen, it is convenient and easy to use. TS8500 also supports Xenon pulse and LED two Light Sources. The repeatability of ΔE*ab is within 0.015, and inter-instrument error is within 0.2, and the measurement performance is super stable and accurate.
Features:
1. International common d/8, SCI/SCE , SCI+SCE Synchronous measurement

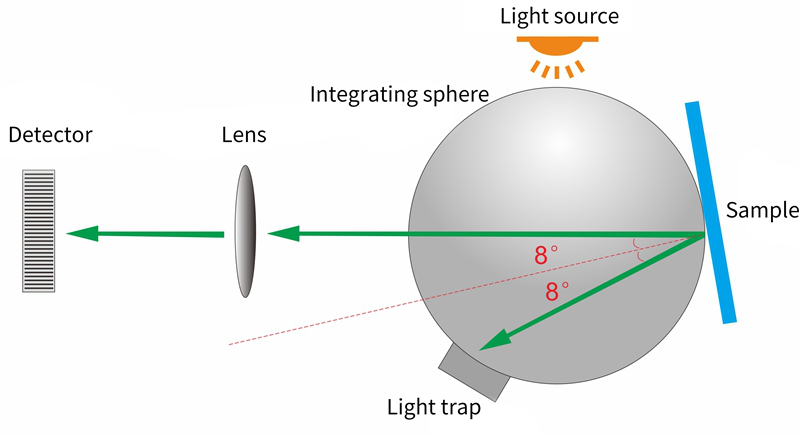

TS8500 spectrophotometer adopts D/8 (diffused illumination, 8-degree viewing angle) which is widely applicable in the world, and SCI/SCE (specular component included/specular component excluded) Synthesis technology, supporting SCI+SCE simultaneous rapid measurement.

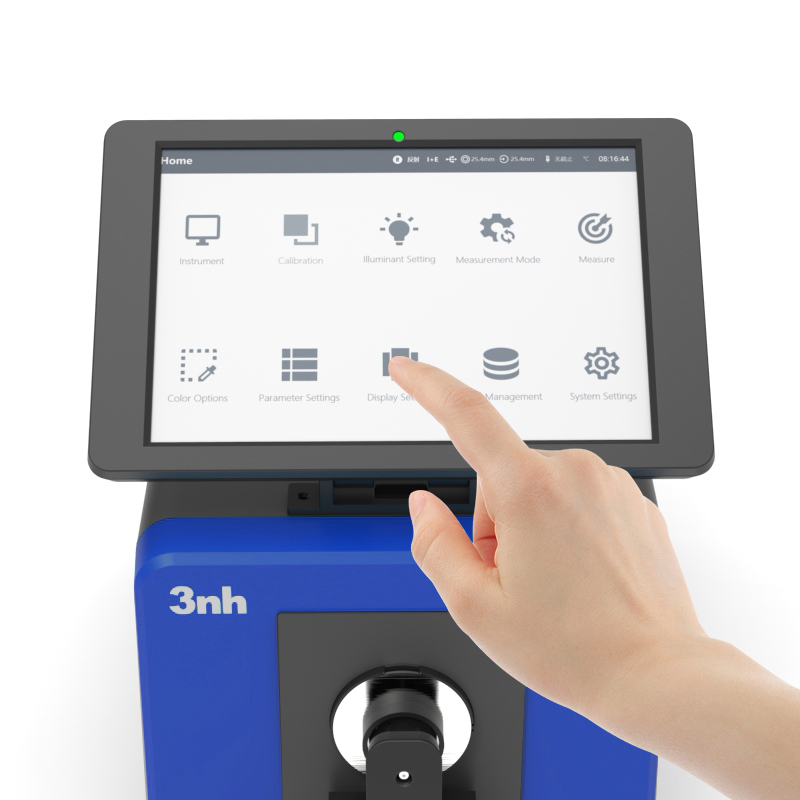

2. Easy to operate with big display Pad, faster and more accurate measurement

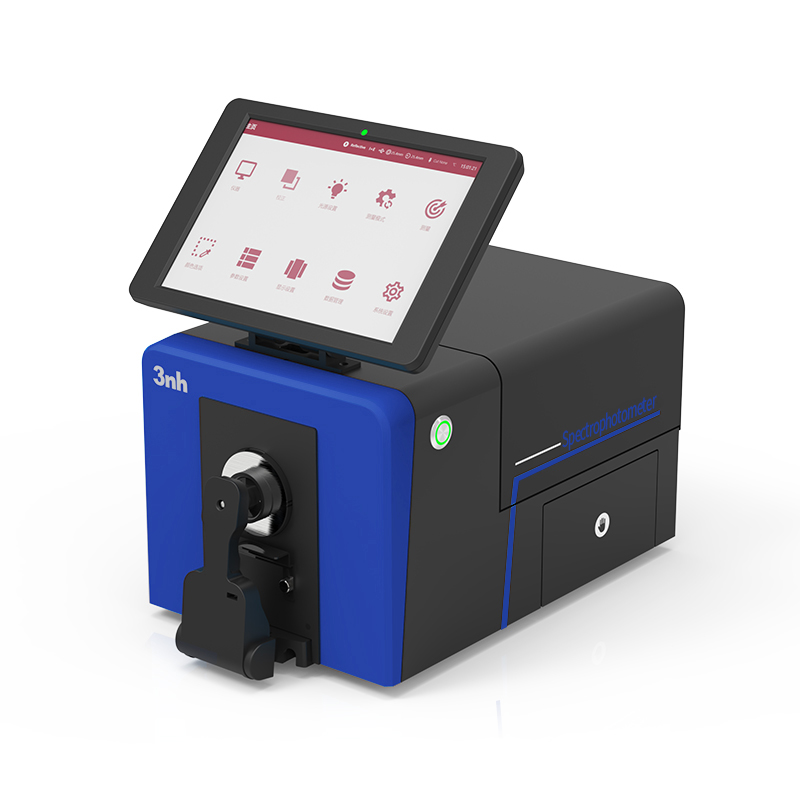

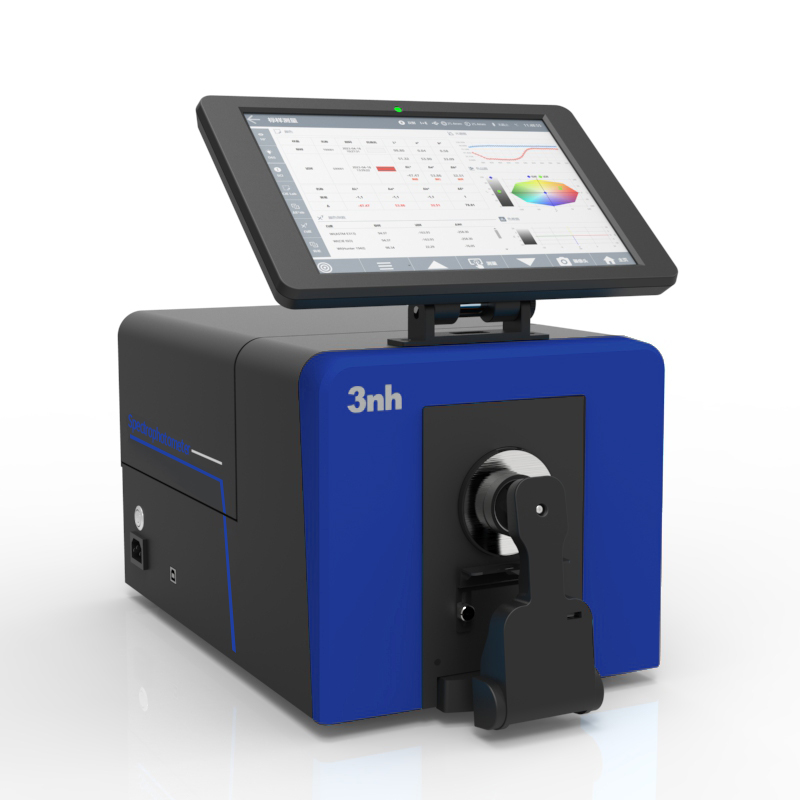

With 10.5-inch independent rotating display pad, it makes the response faster, and the operation is more comfortable and convenient.

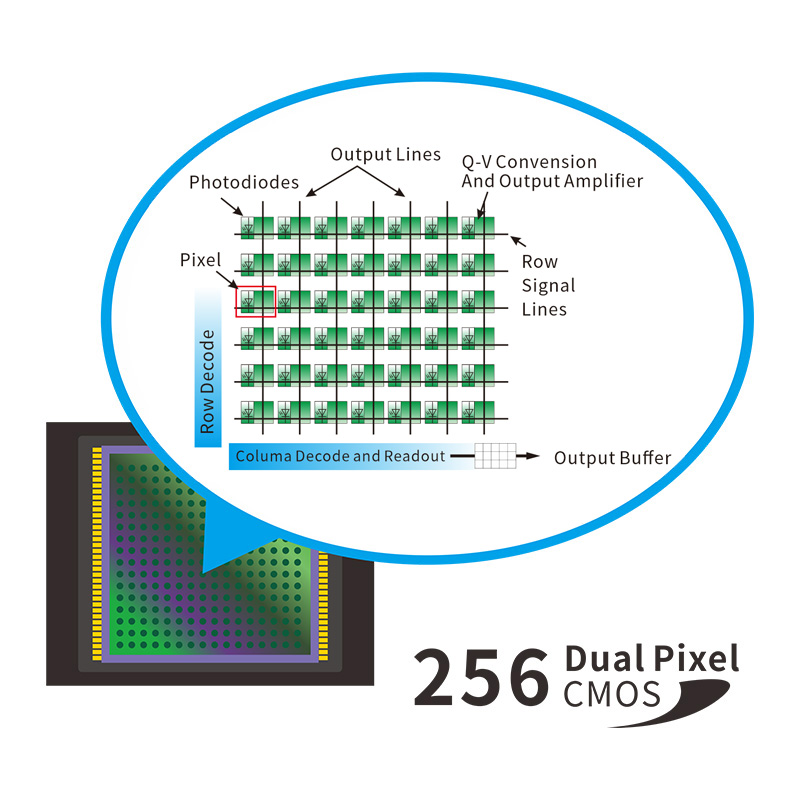

3. Double Array CMOS Image Sensor
It has high sensitivity and wide spectral response range, which can achieve high -precision and repeatability measurement.
4. Rich measurement index, multiple observation light sources
Support 40+measurement indexes, and light sources D65, A, C, D50, D55, D75, F1, F2, F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30B,U35,NBF,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5,and other customized light sources.(41 light sources in total, parts will be achieve via software in PC),multiple observation light sources, meet different measuring requirement.

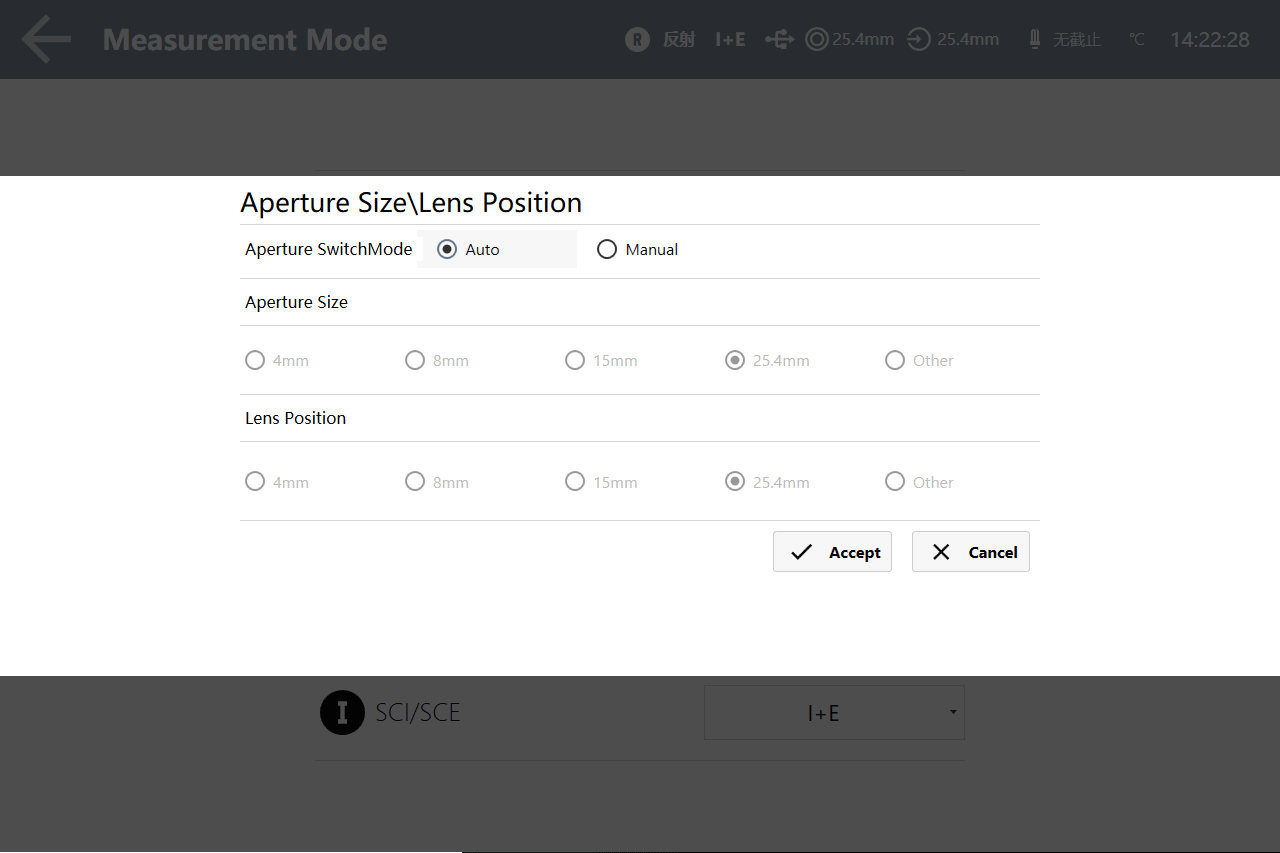

5. Automatic measuring aperture distinguish

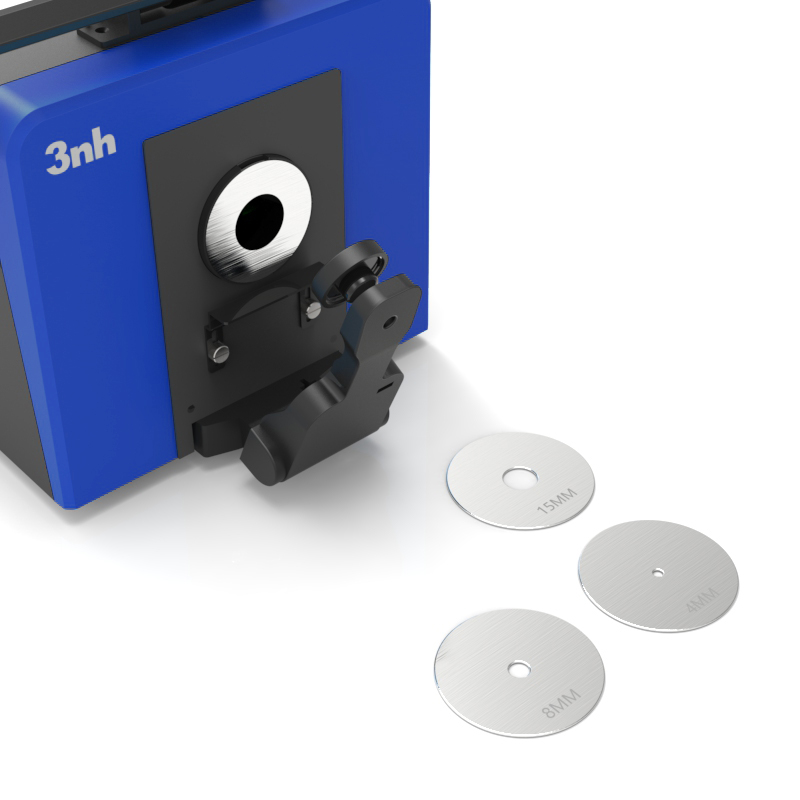

Freely switchable between 4 measuring apertures: φ25.4mm/15mm/8mm/4mm. Users also can customize apertures.
6. Convenient measurement, widely application

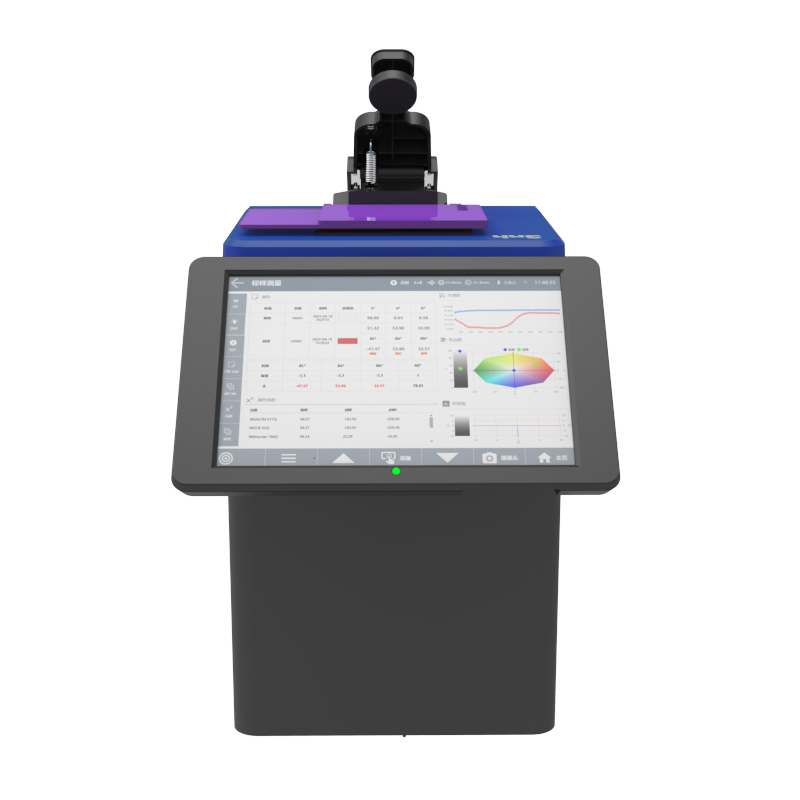

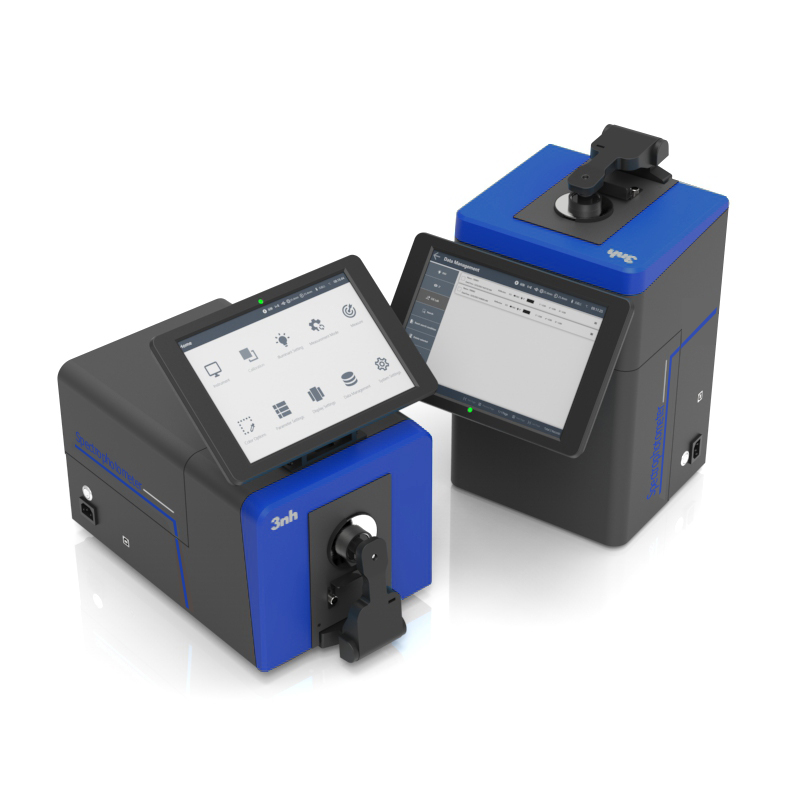

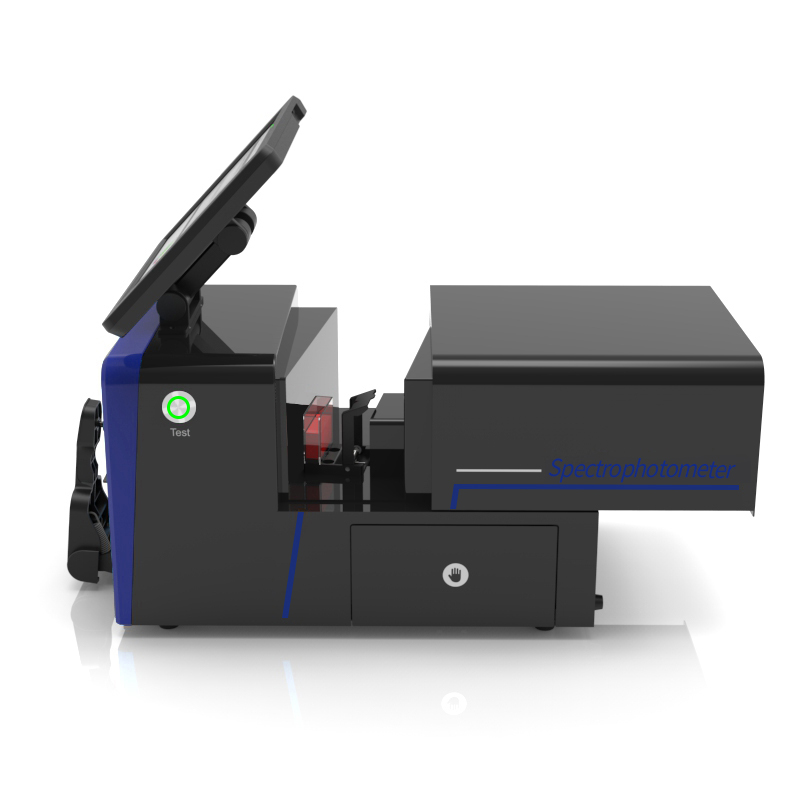

Side measurement, upward measurement, and downward measurement (using accessories) and other gestures are placed and measured, open -type transmitted warehouses, adapting to more samples.

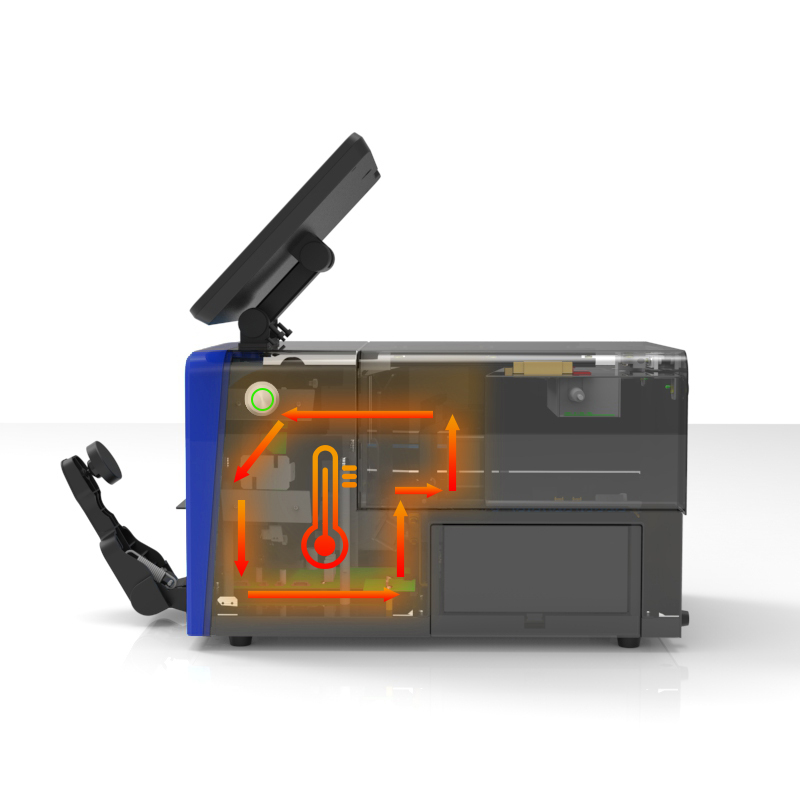

7. Automatic temperature and humidity compensation function, make the measurement data more accurate

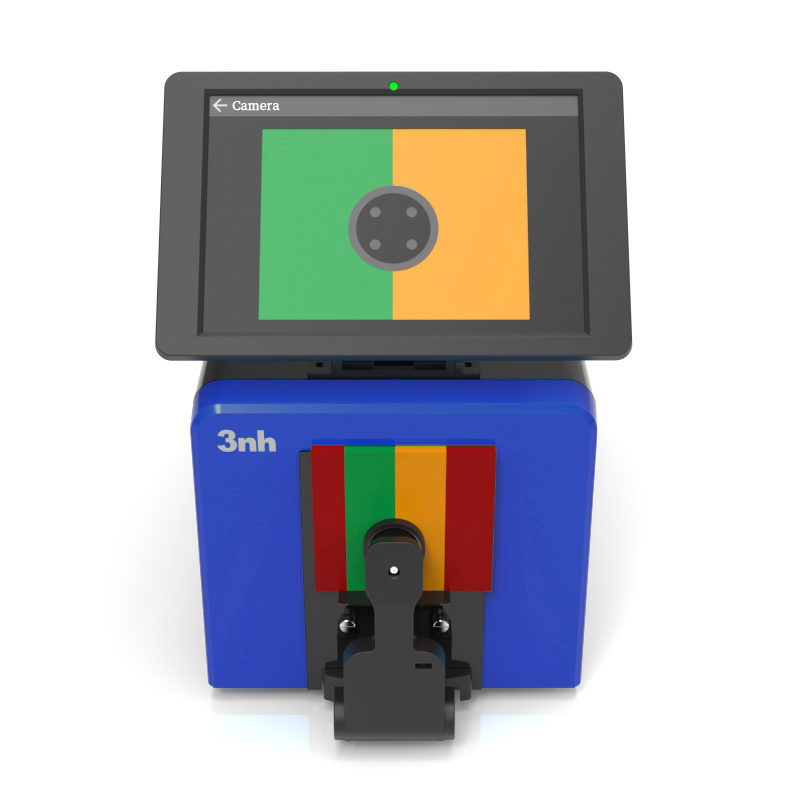

8. The camera located, clearly confirm the measured area
TS8500 has a built -in camera to set the location positioning. Through the real -time scene of the camera, it can accurately determine whether the measured part of the object is the target center, which improves the measurement efficiency and accuracy.

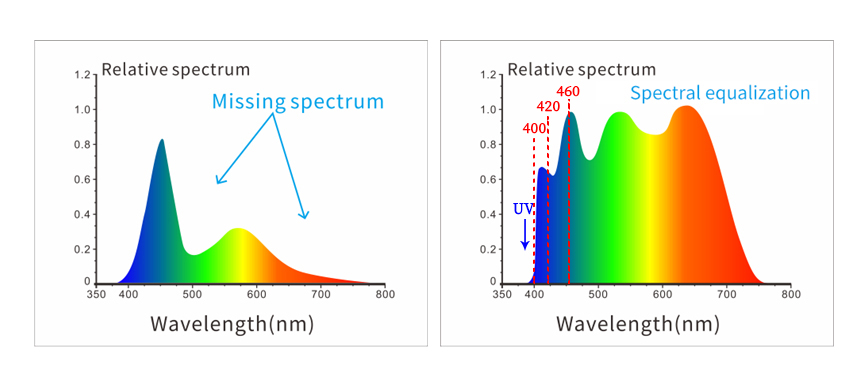

9. Adopt combination full spectrum LED light source and UV light source
Wavelength range 360nm-780nm,combined LED Light. Including UV,400nm cut-off light source, 420nm Cut-off light source,360-780nm Xenon Lamp.

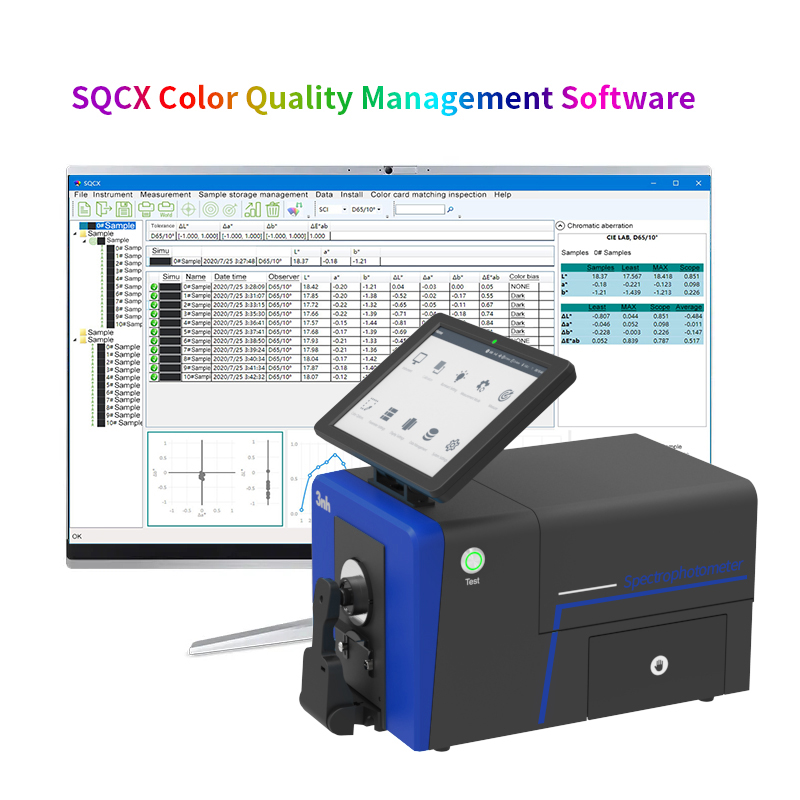

10. Color management software
With SQCX quality management software, TS8500 spectrophotometer is suitable for quality monitoring and color data management in various industries. Data the user's color management, compare color differences, generate test reports, provide multiple color space measurement data, and customize the customer's color management.
TS8500 Benchtop Grating Spectrophotometer Specification
|
Model |
TS8500 (LED+Pulsed Xenon) |
|
Optical Geometry |
Reflect: D/8(diffused illumination, 8-degree viewing angle) ; |
|
SCI (specular component included)/SCE (specular component excluded) ; Include UV / excluded UV light source ; |
|
Transmittance: D/0 (diffuse illumination: 0° viewing) ; |
|
SCI (specular component included)/SCE (specular component excluded) ; Include UV / excluded UV light source ; |
|
HAZE (ASTM D1003); |
|
Standards meet: CIE No.15, GB/T 3978,GB 2893,GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7,JIS Z8722 under condition C |
|
Characteristic |
1. It is used for accurate analysis and transmission of laboratory color. Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control. |
|
2. 10.5 inch rotatable display pad, 128G storage, camera locating |
|
3. Instrument can be measured on the side, upward measurement, and the downward measurement (use accessories) and other gestures. |
|
4. Open transmission warehouse, available thickness of 54mm transmitted samples. |
|
5. Automatic temperature and humidity compensation function. |
|
6. Built-in full spectral high life LED light source and Xenon lighting sources, testing fluorescent samples have better recognition. |
|
Integrating Sphere Size |
Φ154mm |
|
Light Source Device |
360nm–780nm Wavelength range ,combined LED Light. Including UV, 400nm cut-off light source, 420nmCut-off light source,360~780nm Xenon Lamp. |
|
Spectrophotometric Mode |
Concave Grating |
|
Sensor |
256 Image Element Double Array CMOS Image Sensor |
|
Wavelength Range |
360~780nm |
|
Wavelength Interval |
10nm |
|
Semiband Width |
5nm |
|
Measured Reflectance Range |
0~200% |
|
Reflectivity Resolution |
0.01 |
|
Measuring Aperture |
Reflective： |
|
XLAV Φ25.4mm/Φ30mm, LAVΦ15mm/Φ18mm , MAVΦ8mm/Φ10mm, SAVΦ4mm/Φ6mm |
|
Transmissive: |
|
Φ25.4mm(No limit on sample height and width, but thickness≤54mm) |
|
Remark: |
|
1. Automatic identification of aperture switch |
|
2. Customized Configuration caliber and lens position |
|
Specular Component |
Reflectance: SCI&SCE / Transmittance: SCI&SCE |
|
Color Space |
CIE LAB,XYZ,Yxy,LCh,CIE LUV,Musell,s-RGB,HunterLab,βxy,DIN Lab99 |
|
Color Difference Formula |
ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter) ，ΔE*CH，555 Index |
|
Other Colorimetric Index |
WI(ASTM E313，CIE/ISO,AATCC,Hunter，Taube,Berger Stensby) |
|
YI(ASTM D1925，ASTM 313),ISO brightness,R457 |
|
MI (Metamerism Index), |
|
Staining Fastness, Color Fastness, Color Strength, Opacity, |
|
APHA/Hazen/Pt-Co Index，Gardner Index |
|
8° Gloss,555 Index, Haze,Transmission(ASTM D1003), Saybolt index, ASTM D1500 Color code,carbon(My,dM), Color density CMYK(A,T,E,M), Tint,Color density(part function achieved via software in PC) |
|
Observer Angle |
2°/10° |
|
Illuminant |
D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30,B,U35,NBF |
|
ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5, customized light source(41 light sources in total,part achieved via software in PC) |
|
Displayed Data |
Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset, Color assessment, haze, liquid chromaticity |
|
Measuring Time |
2.0s（Measure SCI & SCE meantime about 4s ) |
|
Repeatability |
Reflectance chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.015 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration); |
|
spectrum reflectance /transmission：≤0.1% |
|
Inter-instrument Error |
Φ25.4mm/SCI, Within ΔE*ab 0.2
(Average for 12 BCRA Series II color tiles) |
|
Dimension |
L*W*H=440x248x283mm |
|
Weight |
Approx. 13.5kg |
|
Power |
AC 24V, 3A Power adapter power supply |
|
Illuminant Life Span |
5 years, more than 3 million times measurements |
|
Display |
10.5-inch rotatable display pad |
|
Data Port |
USB & Bluetooth |
|
Data Storage | 64G storage，above 100000pcs |
|
Language |
Simplified Chinese, Traditional Chinese, English,(Optional Customized German,Russian, French ,Spanish ,Japanese, Thai, Korean, Polish, Portuguese) |
|
Operating Environment |
0~40℃（32~104°F） |
|
Storage Environment |
-20~50℃（-4~122°F） |
|
Standard Accessory |
Power Adapter, User Guide, U Disk(PC Software), USB cable, Standard Calibration Board, Black Calibration Cavity, Transmission black baffle, Sample holder, 25.4 caliber, 15 caliber, 8 caliber, 4 caliber,Transmissive Test Component, cuvette, 10.5-inch screen |
|
Optional Accessory |
Micro Aperture(4mm) transmission test clamp component, Instrument inversion components,culture dish,Film fixture |
|
Notes |
Test reports can be printed through a network printer connected to a PC or display pad; The specifications are subject to change without notice. |
