Description

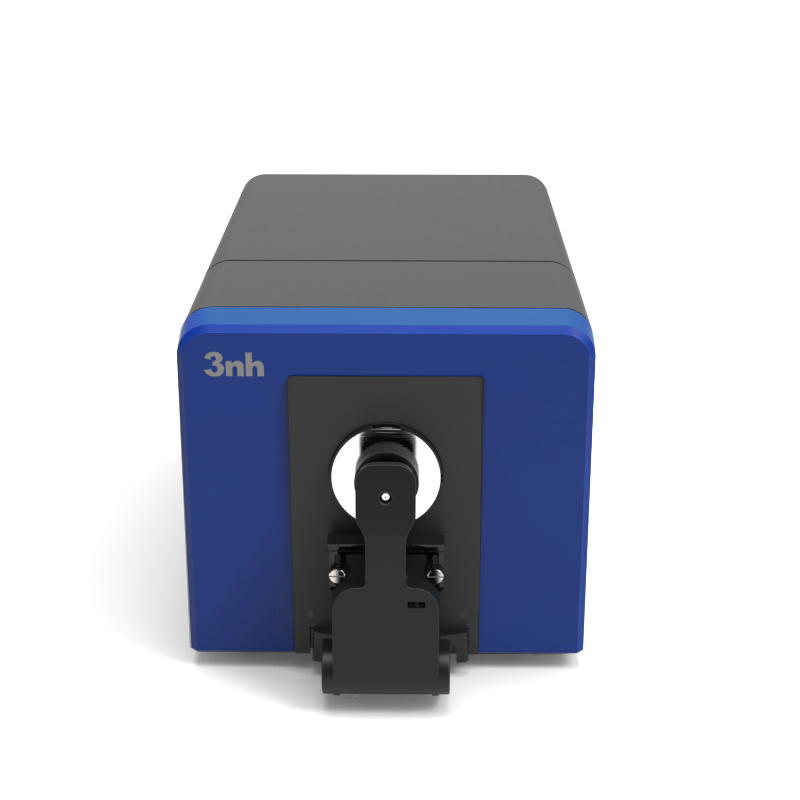

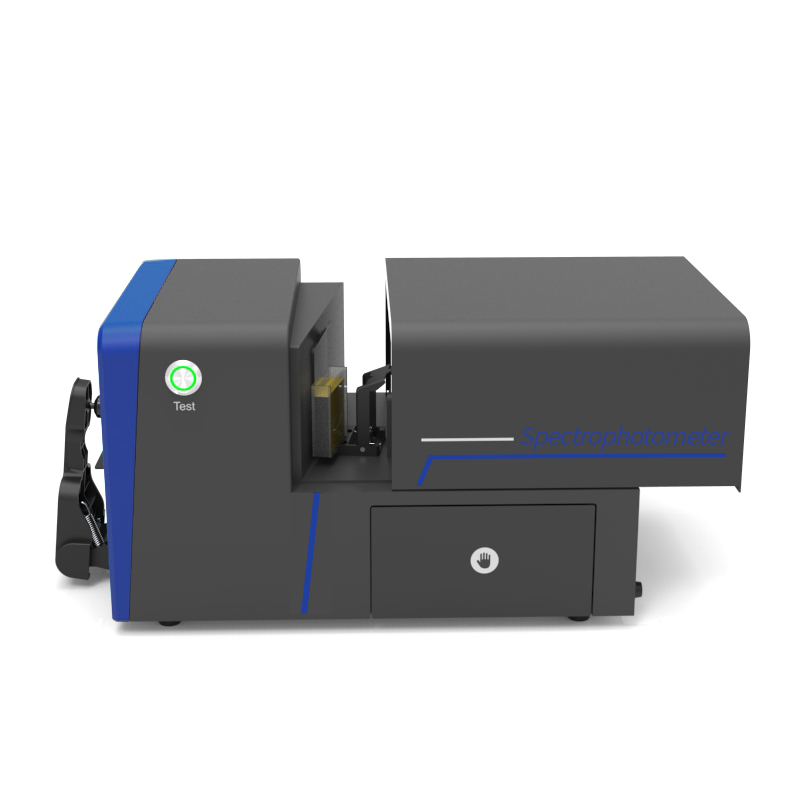

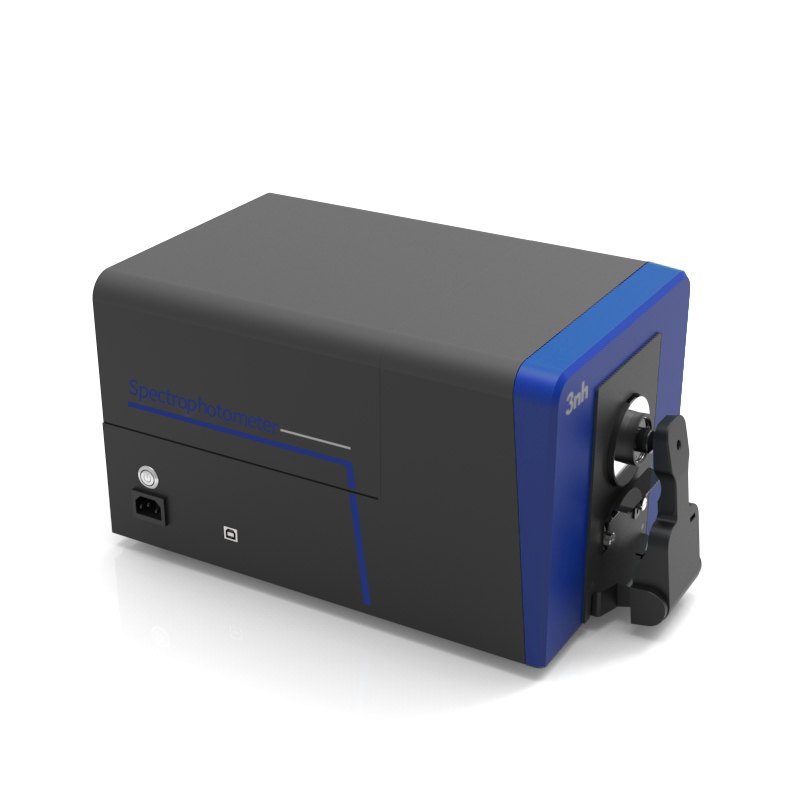

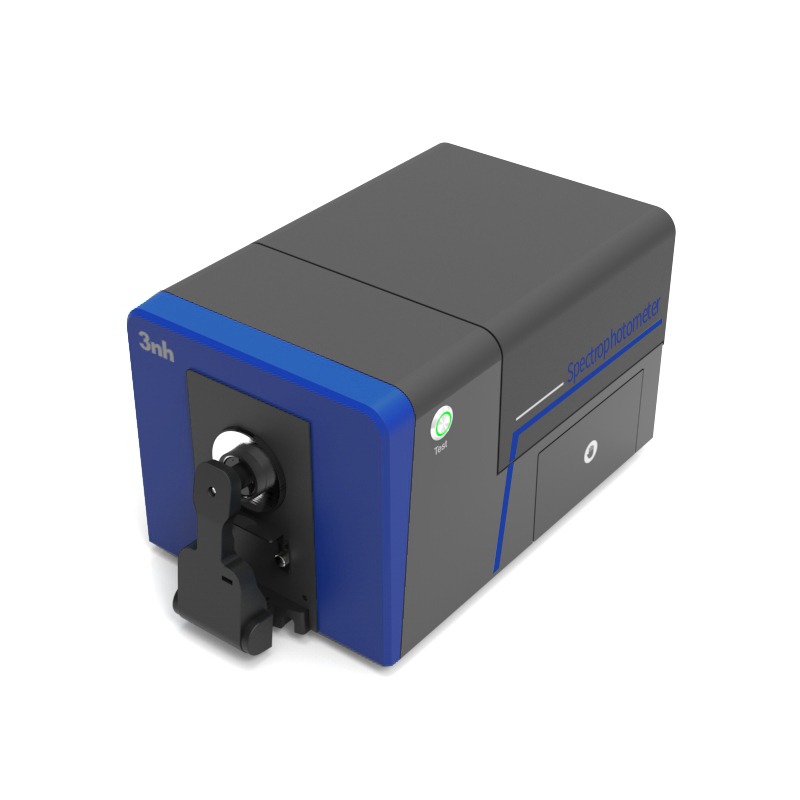

TS8500S is a benchtop grating spectrophotometer which is developed by 3nh independently with core technology. It uses a dual-array CMOS image sensor to have high sensitivity and a wider spectral response range, which makes the test more accurate. It needs to use with SQCX color quality management software in PC, which is convenient and easy operation. The repeatability of ΔE*ab is within 0.015, and Inter-instrument Error is within 0.15, and measurement performance is super stable and accurate.
Features:

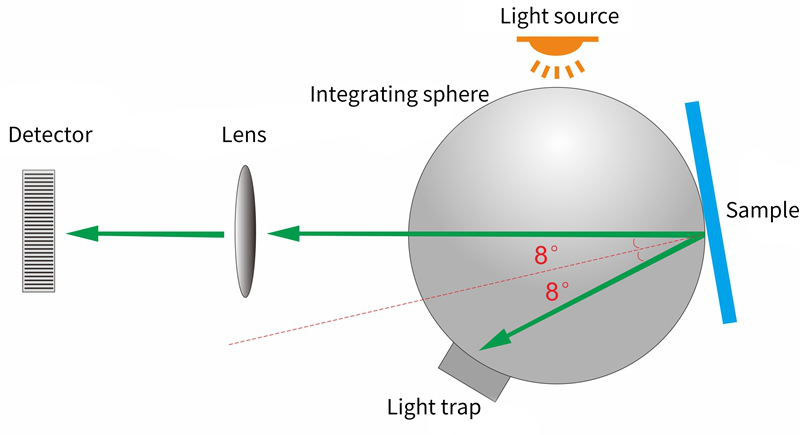

1. International common d/8, SCI/SCE , SCI+SCE Synchronous measurement
TS8500S spectrophotometer adopts D/8(diffused illumination, 8-degree viewing angle) which is widely applicable in the world, and SCI/SCE (specular component included/specular component excluded) Synthesis technology, supporting SCI+SCE simultaneous rapid measurement.
![International common d/8, SCI/SCE , SCI+SCE Synchronous measurement](/static/upload/image/20230921/5848a621f2e57a08d6d286ce833cd754.png)

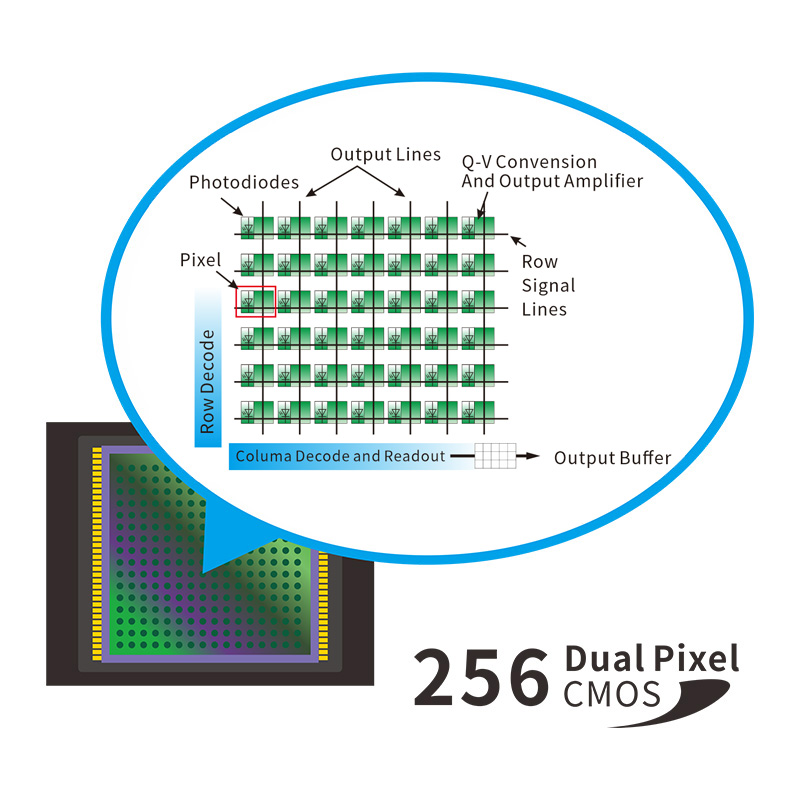

2. Double Array CMOS Image Sensor
It has high sensitivity and wide spectral response range, which can achieve high -precision and repeatability measurement.
![Double Array CMOS Image Sensor;](/static/upload/image/20230921/7c2f1442d24199ce05896f81c75efab4.jpg)
3. Rich measurement index, multiple observation light sources
Support 40+measurement index, D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8,F9,F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30B,U35,NBF,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5,and other customized light sources.(41 light sources in total, parts will be achieve via software in PC),multiple observation light sources, meet different measuring requirement.

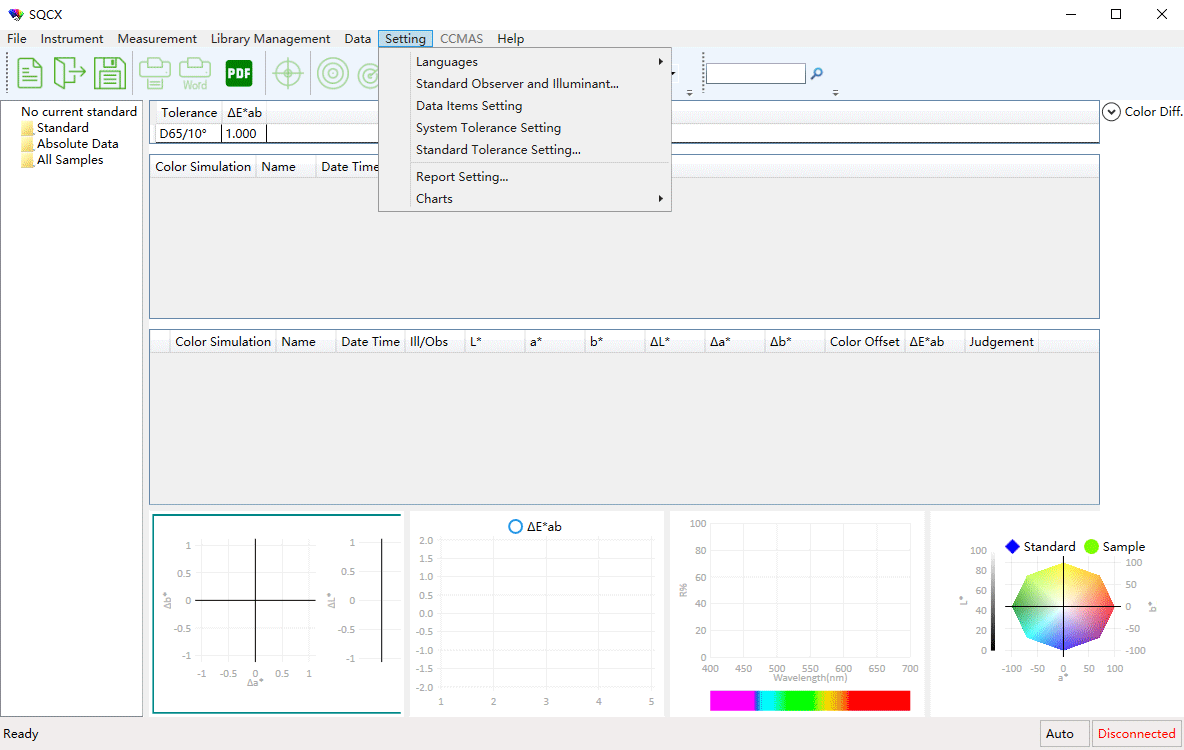

![Rich measurement index, multiple observation light sources](/static/upload/image/20230921/dbfc191024de14c4c7f616afc84c7f70.gif)

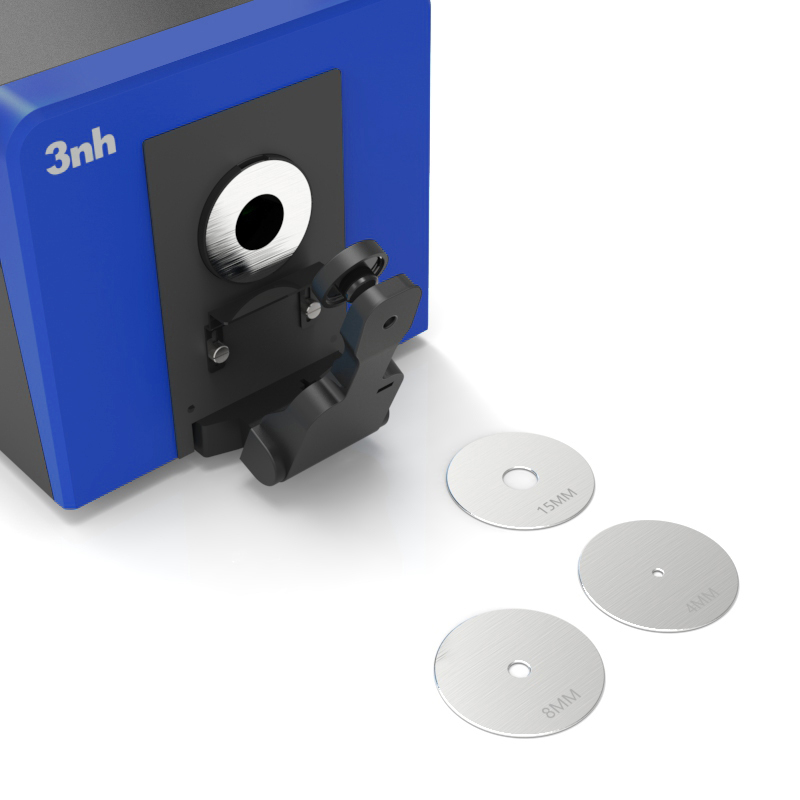

4. Automatic measuring aperture distinguish
Freely switchable between 4 measuring apertures: φ25.4mm/15mm/8mm/4mm. Users also can customize apertures.
![Automatic measuring aperture distinguish](/static/upload/image/20230921/4e496cb9c6cfedb20e0ef49f5bac0b5b.jpg)

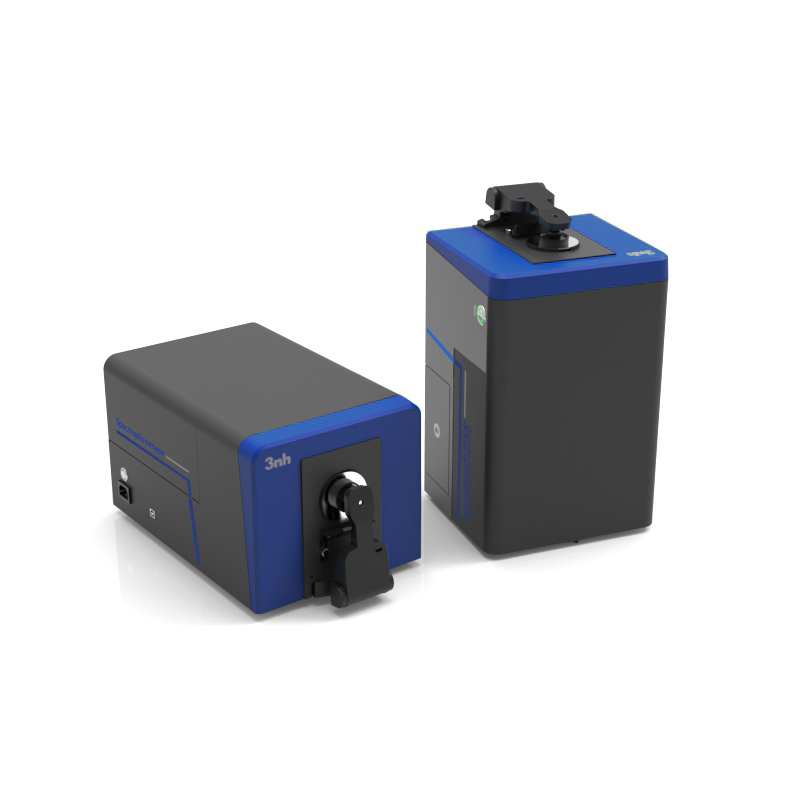

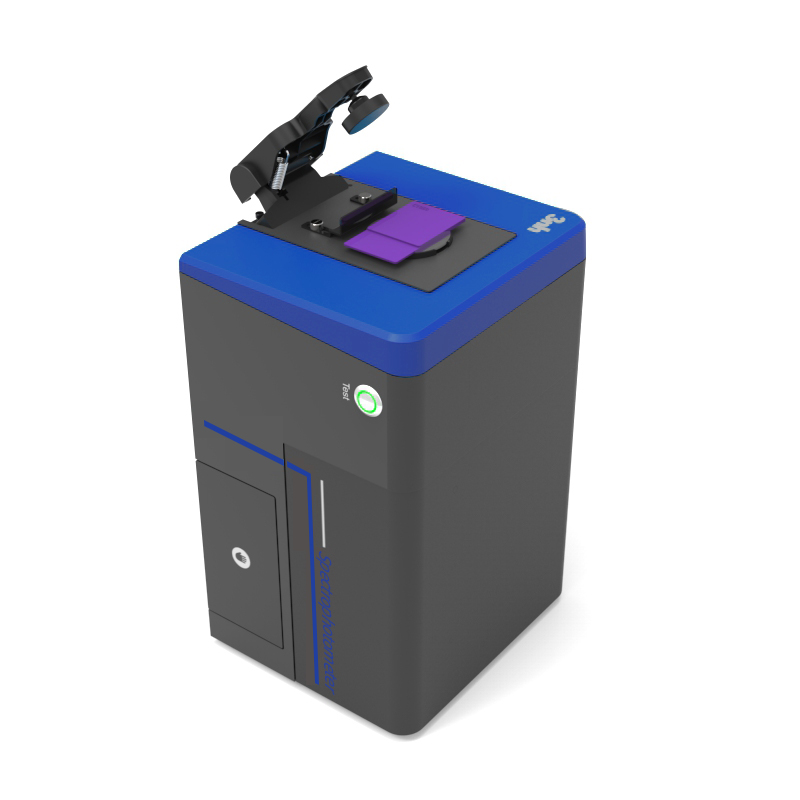

5. Convenient measurement, widely application
Side measurement, upward measurement, and downward measurement (using accessories) and other gestures are placed and measured, open -type transmitted warehouses, adapting to more samples.
![Convenient measurement, widely application](/static/upload/image/20230921/1a282924a5e40e4124571eba4662c6e2.jpg)

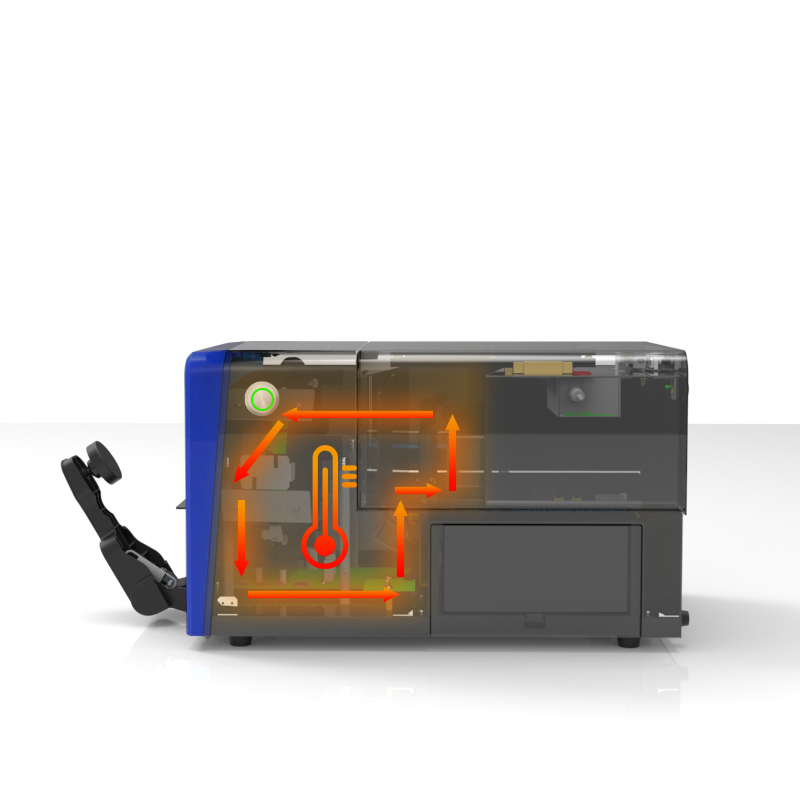

6. Automatic temperature and humidity compensation function, make the measurement data more accurate
![Automatic temperature and humidity compensation function, make the measurement data more accurate](/static/upload/image/20230921/22976a2fb48c82e89ac4a6b5793eb9e1.jpg)

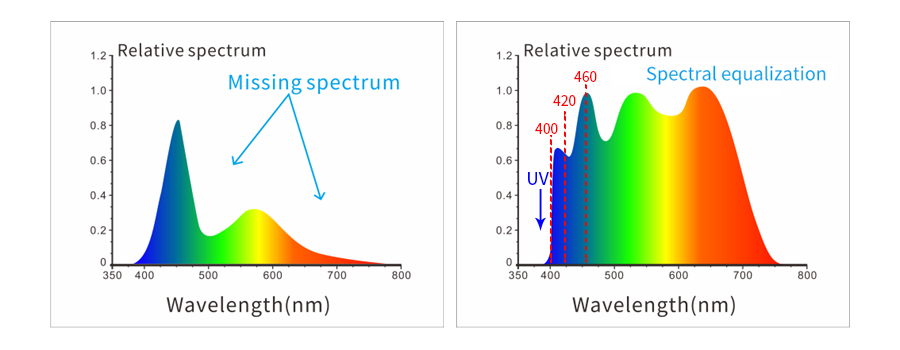

7. Adopt combination full spectrum LED light source and UV light source
Wavelength range 360nm-780nm,combined LED Light. Including UV, 400nm cut-off light source, 420nm Cut-off light source, 460nm Cut-off light source
![Adopt combination full spectrum LED light source and UV light source](/static/upload/image/20230921/3e9f231a3b5f5c268eb7303116e017a0.jpg)

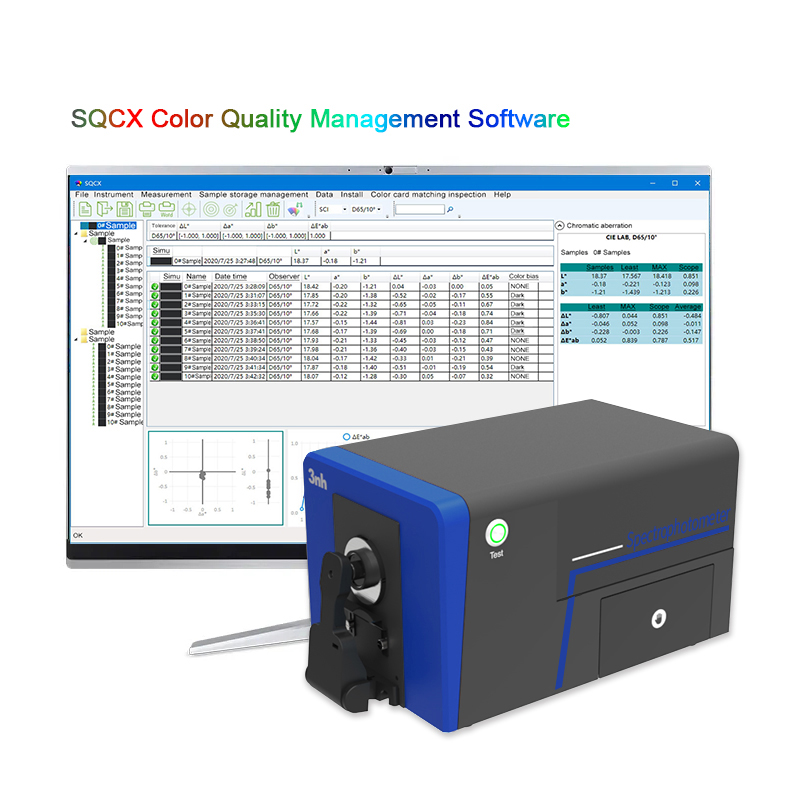

8. Color management software
With SQCX quality management software, TS8500S spectrophotometer is suitable for quality monitoring and color data management in various industries. Data the user's color management, compare color differences, generate test reports, provide multiple color space measurement data, and customize the customer's color management.
![Color management software](/static/upload/image/20230921/5223d1507f0d2ec729e866a583c47577.jpg)
TS8500S Benchtop Grating Spectrophotometer Specification
Model |
TS8500S (LED, no display pad) |
Optical Geometry |
Reflect: D/8 (diffused illumination, 8-degree viewing angle) ; |
SCI/SCE; Include UV / excluded UV light source ; |
Transmittance: D/0 (diffuse illumination: 0° viewing) ; |
SCI /SCE; Include UV / excluded UV light source ; |
HAZE (ASTM D1003); |
Standards meet: CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033 Teil7,JIS Z8722 under condition C |
Characteristic |
1. Widely applied in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control. |
2. Instrument can be measured on the side, upward measurement, and the downward measurement (use accessories) and other gestures. |
3. Open transmission warehouse, available thickness of 54mm transmitted samples. |
4. Automatic temperature and humidity compensation function. |
Integrating Sphere Size |
Φ154mm |
Light Source Device |
360nm–780nm Wavelength range ,combined LED Light. Including UV, 400nm cut-off light source, 420nm Cut-off light source,460nm cut-off light source |
Spectrophotometric Mode |
Concave Grating |
Sensor |
256 Image Element Double Array CMOS Image Sensor |
Wavelength Range |
360~780nm |
Wavelength Interval |
10nm |
Semiband Width |
5nm |
Measured Reflectance Range |
0~200% |
Reflectivity Resolution |
0.01 |
Measuring Aperture |
Reflective: |
XLAV Φ25.4mm/Φ30mm,
LAVΦ15mm/Φ18mm ,
MAVΦ8mm/Φ10mm,
SAVΦ4mm/Φ6mm |
Transmissive: |
Φ25.4mm(No limit on sample height and width, but thickness≤54mm) |
Remark: |
1. Automatic identification of aperture switch |
2. Customized Configuration caliber and lens position |
Specular Component |
Reflectance: SCI&SCE / Transmittance: SCI&SCE |
Color Space |
CIE LAB,XYZ, Yxy, LCh, CIE LUV, Musell, s-RGB, HunterLab, βxy, DIN Lab99 |
Color Difference Formula |
ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter),ΔE*CH,555 Index |
Other Colorimetric Index |
WI(ASTM E313,CIE/ISO,AATCC,Hunter,Taube,Berger Stensby) |
YI(ASTM D1925,ASTM 313),ISO brightness,R457 |
MI (Metamerism Index), |
Staining Fastness, Color Fastness, Color Strength, Opacity, |
APHA/Hazen/Pt-Co Index,Gardner Index |
8° Gloss,555 Index, Haze,Transmission(ASTM D1003),Saybolt index, ASTM D1500 Color code,carbon(My,dM),Color density CMYK(A,T,E,M),Tint,Color density(part function achieved via software in PC) |
Observer Angle |
2°/10° |
Illuminant |
D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30,B,U35,NBF |
ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5, customized light source(41 light sources in total,part achieved via software in PC) |
Displayed Data |
Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset, Color assessment, haze, liquid chromaticity |
Measuring Time |
2.0s (Measure SCI & SCE meantime about 4s ) |
Repeatability |
Reflectance chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.015 ( Under LED light source, when a white calibration plate is measured 30 times at 5 second intervals after white calibration); |
spectrum reflectance /transmission:≤0.1% |
Inter-instrument Error |
Φ25.4mm/SCI, Within ΔE*ab 0.15
(Average for 12 BCRA Series II color tiles) |
Dimension |
L*W*H=440x248x283mm |
Weight |
Approx. 13.5kg |
Power |
AC 24V, 3A Power adapter power supply |
Illuminant Life Span |
5 years, more than 3 million times measurements |
Display |
No |
Data Port |
USB & Bluetooth 5.0 |
Data Storage |
Share with PC storage |
Language |
/ |
Operating Environment |
0~40℃(32~104°F) |
Storage Environment |
-20~50℃(-4~122°F) |
Standard Accessory |
Power Adapter, User Guide, U Disk(PC Software), USB cable, Standard Calibration Board, Black Calibration Cavity, Transmission black baffle, Sample holder, 25.4 caliber, 15 caliber, 8 caliber, 4 caliber,Transmissive Test Component, cuvette |
Optional Accessory |
Micro Aperture(4mm) transmission test clamp component, Instrument inversion components,culture dish,Film fixture |
Notes |
Test reports can be printed through a network printer connected to a PC or display pad,
The specifications are subject to change without notice. |
